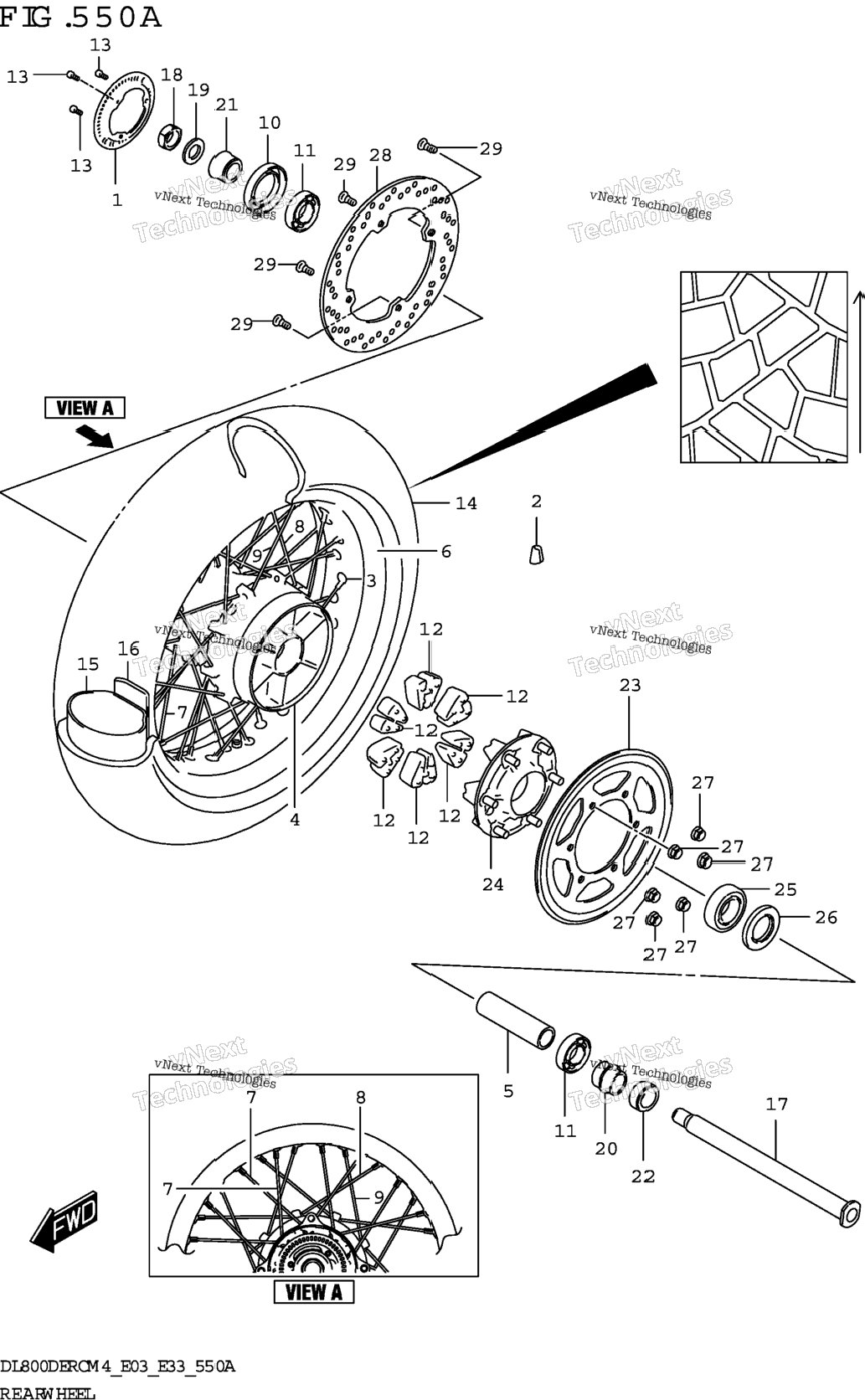

| 1 | 54162-28K00 | RING, SPEED SENSOR (50T) | 1 шт. | — | |
|
| 2 | 55412-41F00 | BALANCER,WHEEL (20G) | 1 шт. | — | |
|
| 3 | 55326-25L00 | NIPPLE,WHEEL | 36 шт. | — | |
|
| 4 | 64111-25L20 | HUB,REAR | 1 шт. | — | |
|
| 5 | 64731-25L00 | SPACER,REAR WHEEL BEARING | 1 шт. | — | |
|
| 6 | 65311-25L00 | RIM,RR WHEEL GOLD | 1 шт. | — | |
|
| 7 | 65321-25L00 | SPOKE,REAR WHEEL,R | 18 шт. | — | |
|
| 8 | 65323-25L00 | SPOKE,REAR WHEEL INNER,L | 9 шт. | — | |
|
| 9 | 65324-25L00 | SPOKE,REAR WHEEL OUTER,L | 9 шт. | — | |
|
| 10 | 09284-37002 | SEAL,OIL (37X52X8) | 1 шт. | — | |
|
| 11 | 08123-6205B | BEARING | 2 шт. | — | |
|
| 12 | 64651-47H10 | ABSORBER,RR HUB SHOCK | 6 шт. | — | |
|
| 13 | 07130-0512A | BOLT | 3 шт. | — | |
|
| 14 | 65110-25L30 | TIRE,REAR | 1 шт. | — | |
|
| 15 | 65200-25L00 | TUBE ASSY,WHEEL INNER | 1 шт. | — | |
|
| 16 | 65261-25L00 | PROTECTOR,WHEEL INNER TUBE | 1 шт. | — | |
|
| 17 | 64711-25L00 | AXLE,REAR | 1 шт. | — | |
|
| 18 | 64721-13K00 | NUT | 1 шт. | — | |
|
| 19 | 64723-25L00 | WASHER,REAR AXLE | 1 шт. | — | |
|
| 20 | 64733-44G00 | RETAINER,RR SPROCKET DRUM | 1 шт. | — | |
|
| 21 | 64741-25L00 | SPACER,REAR AXLE,R | 1 шт. | — | |
|
| 22 | 64751-44G00 | SPACER,RR AXLE,L | 1 шт. | — | |
|
| 23 | 64511-25L20 | SPROCKET,REAR | 1 шт. | — | |
|
| 24 | 64610-47H00 | DRUM,RR SPROCKET | 1 шт. | — | |
|
| 25 | 09262-32024 | BEARING (32X65X17) | 1 шт. | — | |
|
| 26 | 09285-39001 | OIL SEAL (39X65X7) | 1 шт. | — | |
|
| 27 | 08319-3110A | NUT | 6 шт. | — | |
|
| 28 | 69211-06L10 | DISC,REAR BRAKE | 1 шт. | — | |
|
| 29 | 09106-08160 | BOLT (8X21) | 4 шт. | — | |
|
