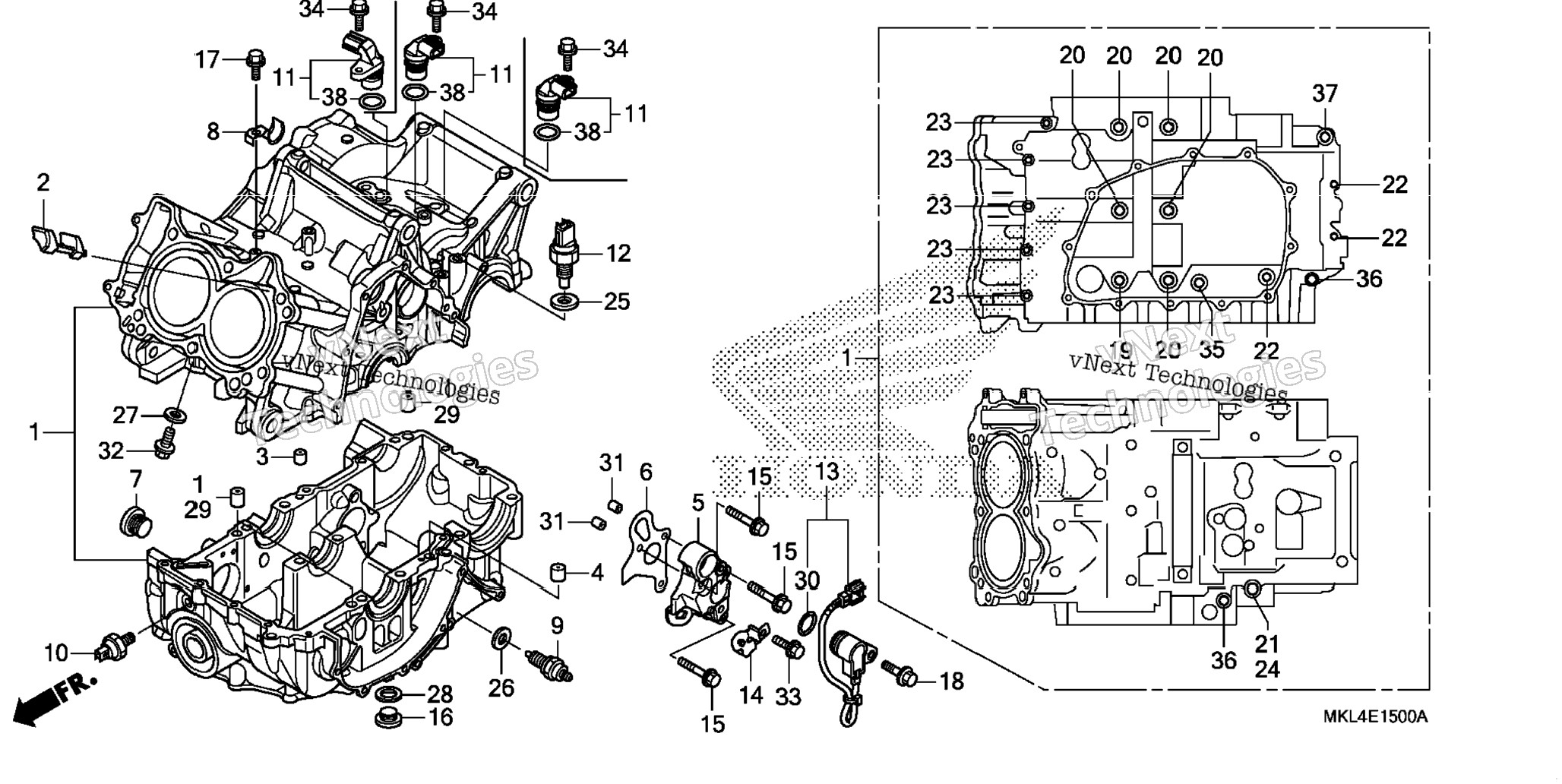

| 1 | 11000-MKA-D30 | CRANKCASE SET | 1 шт. | — | |
|
| 2 | 11103-MGS-D31 | PLATE, PARTITION | 1 шт. | — | |
|
| 3 | 11207-MFL-000 | ORIFICE (1.1MM) | 1 шт. | — | |
|
| 4 | 11207-MGS-D30 | ORIFICE (1.5MM) | 1 шт. | — | |
|
| 5 | 11521-MJL-D30 | HOLDER, ANGLE SENSOR | 1 шт. | — | |
|
| 6 | 11522-MJL-D30 | GASKET, CHANGE SWITCH | 1 шт. | — | |
|
| 7 | 12208-PR3-000 | BOLT, SEALING (20MM) | 1 шт. | — | |
|
| 8 | 17640-MGS-D30 | STAY, FUEL HOSE | 1 шт. | — | |
|
| 9 | 35600-MFJ-D01 | SWITCH ASSY., NEUTRAL | 1 шт. | — | |
|
| 10 | 37241-RNA-A01 | SWITCH ASSY., OIL PRESSURE | 1 шт. | — | |
|
| 11 | 37700-K48-A01 | SENSOR ASSY., SPEED | 1 шт. | — | |
|
| 13 | 38800-MJL-D11 | SENSOR ASSY., ANGLE (350DEGREE) | 1 шт. | — | |
|
| 14 | 38815-MJL-D10 | STAY, ANGLE SENSOR WIRE | 1 шт. | — | |
|
| 15 | 90001-MGS-D20 | BOLT, FLANGE (6X28) | 3 шт. | — | |
|
| 16 | 90002-RGA-000 | BOLT, SEALING (12X8) | 1 шт. | — | |
|
| 17 | 90004-MGS-D30 | BOLT, FLANGE (6X16) | 1 шт. | — | |
|
| 18 | 90011-MGE-D00 | BOLT, KNOCK (6MM) | 1 шт. | — | |
|
| 19 | 90015-MGS-D31 | BOLT, FLANGE (9X150) | 1 шт. | — | |
|
| 20 | 90016-MFA-D01 | BOLT, FLANGE (9X125) | 5 шт. | — | |
|
| 21 | 90021-MGS-D30 | BOLT, FLANGE (8X100) | 1 шт. | — | |
|
| 22 | 90021-MJL-D30 | BOLT, SPECIAL (6X45) | 3 шт. | — | |
|
| 23 | 90022-MJL-D30 | BOLT, SPECIAL (6X32) | 5 шт. | — | |
|
| 24 | 90442-028-000 | WASHER, SEALING (8MM) | 1 шт. | — | |
|
| 26 | 90443-MJ6-000 | WASHER, NEUTRAL | 1 шт. | — | |
|
| 27 | 90463-ML7-000 | WASHER, SEALING (6.5MM) | 1 шт. | — | |
|
| 28 | 90545-KF0-000 | WASHER (12MM) | 1 шт. | — | |
|
| 29 | 90701-MV9-670 | PIN, DOWEL (10X16) (Honda Code 3906971) | 3 шт. | — | |
|
| 30 | 91310-MGE-D01 | O-RING (16.5X2.5) | 1 шт. | — | |
|
| 31 | 94301-08100 | PIN A, DOWEL (8X10) | 2 шт. | — | |
|
| 32 | 95701-06012-00 | BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) | 1 шт. | — | |
|
| 33 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 1 шт. | — | |
|
| 34 | 95701-06018-00 | BOLT, FLANGE (6X18) BOLT, HEX. (6X18) | 1 шт. | — | |
|
| 35 | 95701-08045-00 | BOLT, FLANGE (8X45) | 1 шт. | — | |
|
| 36 | 95701-08070-00 | BOLT, FLANGE (8X70) | 2 шт. | — | |
|
| 37 | 95701-10070-00 | BOLT, FLANGE (10X70) | 1 шт. | — | |
|
| 38 | 91303-MKH-D21 | O-RING B | 1 шт. | — | |
|
