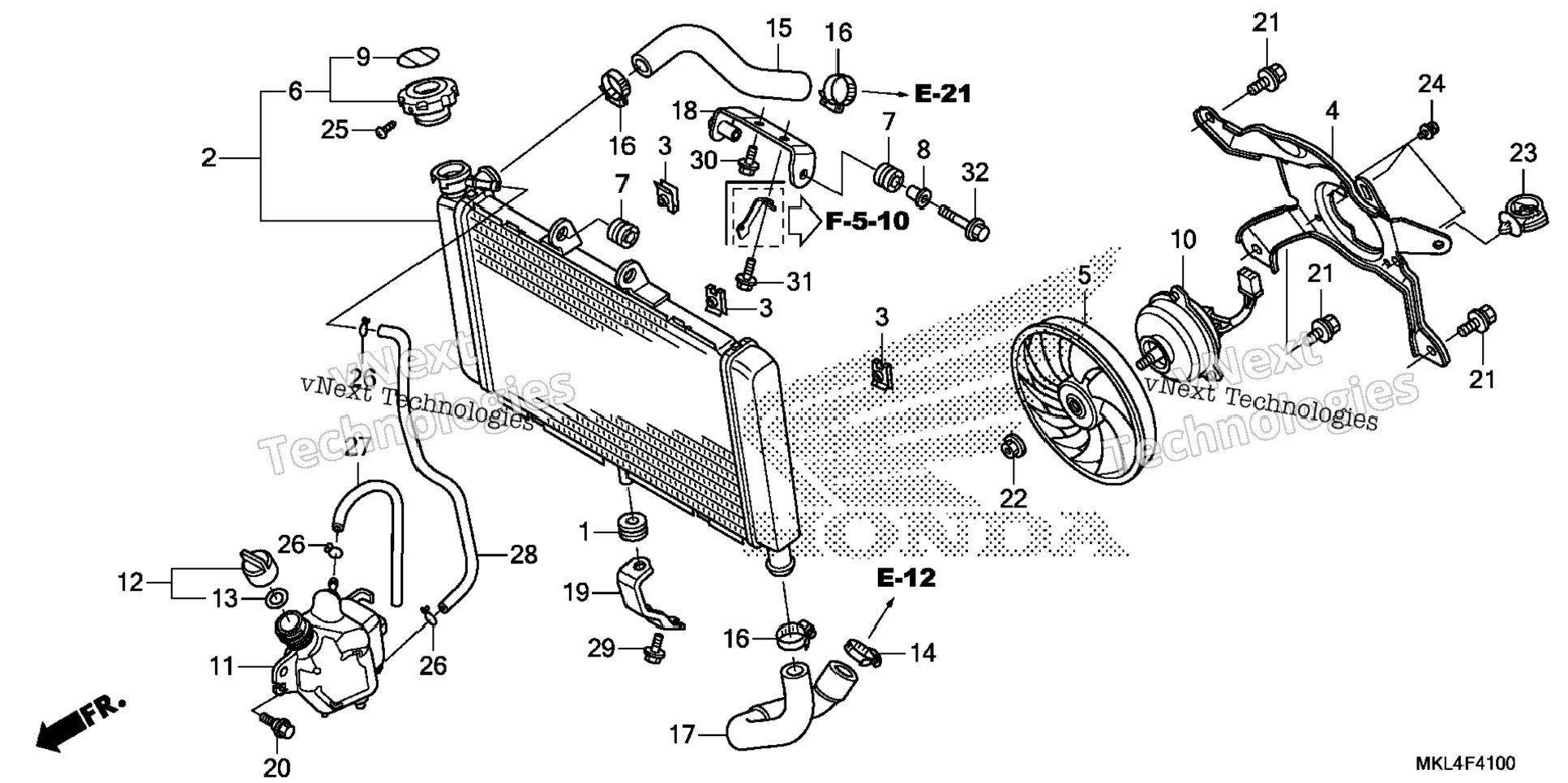

| 1 | 17622-GB7-900 | RUBBER, CUSHION | 1 шт. | — | |
|
| 2 | 19010-MGS-J31 | RADIATOR | 1 шт. | — | |
|
| 3 | 19014-KEA-003 | NUT, SETTING (6MM) | 3 шт. | — | |
|
| 4 | 19016-MGS-D31 | SHROUD | 1 шт. | — | |
|
| 5 | 19020-MGS-D31 | FAN, COOLING (TOYO) | 1 шт. | — | |
|
| 6 | 19045-MY3-621 | CAP, RADIATOR | 1 шт. | — | |
|
| 7 | 19051-MGS-D30 | RUBBER, RADIATOR MOUNTING | 2 шт. | — | |
|
| 8 | 19052-MGH-640 | COLLAR, RADIATOR MOUNTING | 1 шт. | — | |
|
| 9 | 19055-MV9-881 | SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE) | 1 шт. | — | |
|
| 10 | 19080-MGS-D31 | MOTOR ASSY., FAN | 1 шт. | — | |
|
| 11 | 19101-MGS-D30 | TANK, RADIATOR RESERVE | 1 шт. | — | |
|
| 12 | 19106-GET-000 | CAP ASSY., RESERVE TANK | 1 шт. | — | |
|
| 13 | 19107-GET-000 | GASKET, RESERVE TANK | 1 шт. | — | |
|
| 14 | 19504-MGP-000 | CLAMP, WATER HOSE (35MM) | 1 шт. | — | |
|
| 15 | 19505-MGS-D30 | HOSE, RADIATOR (UPPER) | 1 шт. | — | |
|
| 16 | 19505-ML3-770 | CLAMP, WATER HOSE | 3 шт. | — | |
|
| 17 | 19506-MGS-D30 | HOSE, RADIATOR (LOWER) | 1 шт. | — | |
|
| 18 | 19515-MGS-D30 | STAY, RADIATOR (UPPER) | 1 шт. | — | |
|
| 19 | 19516-MGS-D30ZA | STAY, RADIATOR (LOWER) *NH303M* (MAT AXIS GRAY METALLIC) | 1 шт. | — | |
|
| 20 | 90111-162-000 | BOLT, FLANGE (6MM) | 1 шт. | — | |
|
| 21 | 90120-GHB-601 | BOLT-WASHER (6X12) | 3 шт. | — | |
|
| 22 | 90315-MFL-003 | NUT, FLANGE (3MM) | 1 шт. | — | |
|
| 23 | 90683-MGC-920 | CLIP, HARNESS | 1 шт. | — | |
|
| 24 | 93891-04006-07 | SCREW-WASHER (4X6) | 3 шт. | — | |
|
| 25 | 93901-22180 | SCREW, TAPPING (3X8) | 1 шт. | — | |
|
| 26 | 95002-02100 | CLIP, TUBE (B10) | 3 шт. | — | |
|
| 27 | 95005-55003-20M | BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2 | 1 шт. | — | |
|
| 28 | 95005-55003-20M | BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2 | 1 шт. | — | |
|
| 29 | 95701-06014-02 | BOLT, FLANGE (6X14) (Honda Code 3707114) | 1 шт. | — | |
|
| 30 | 95701-06014-08 | BOLT, FLANGE (6X14) | 1 шт. | — | |
|
| 31 | 95701-06014-08 | BOLT, FLANGE (6X14) | 1 шт. | — | |
|
| 32 | 95701-06025-08 | BOLT, FLANGE (6X25) BOLT, FLANGE (6X16) | 1 шт. | — | |
|
