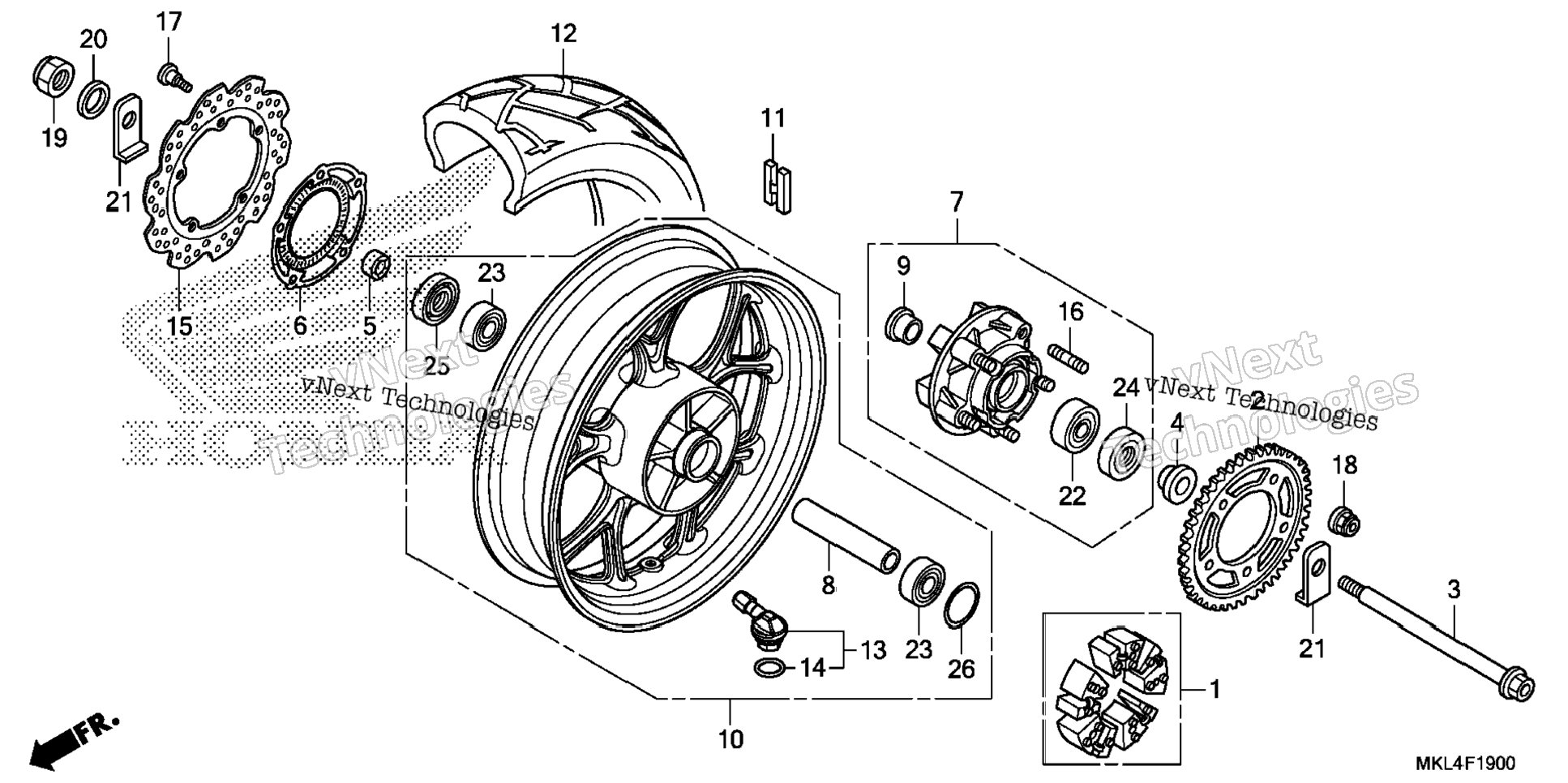

| 1 | 06410-MGS-D30 | DAMPER SET, WHEEL | 1 шт. | — | |
|
| 2 | 41201-MGS-D30 | SPROCKET, FINAL DRIVEN (43T) | 1 шт. | — | |
|
| 3 | 42301-MGS-D31 | AXLE, RR. WHEEL | 1 шт. | — | |
|
| 4 | 42311-MGS-D10 | COLLAR, L. RR. WHEEL SIDE | 1 шт. | — | |
|
| 5 | 42312-MGS-D10 | COLLAR, RR. BRAKE SIDE | 1 шт. | — | |
|
| 6 | 42615-MGS-D30 | FLANGE SUB-ASSY., RR. DRIVEN | 1 шт. | — | |
|
| 7 | 42620-MGS-D10 | COLLAR, RR. AXLE DISTANCE | 1 шт. | — | |
|
| 8 | 42625-MGS-D30 | COLLAR B, RR. WHEEL DISTANCE | 1 шт. | — | |
|
| 9 | 42650-MKA-J31ZB | WHEEL SUB-ASSY., RR. (TYPE1) | 1 шт. | — | |
|
| 10 | 42704-MER-D00 | WEIGHT, BALANCE (10G) | 1 шт. | — | |
|
| 11 | 42705-MER-D00 | WEIGHT, BALANCE (20G) | 1 шт. | — | |
|
| 12 | 42706-MER-D00 | WEIGHT, BALANCE (30G) | 1 шт. | — | |
|
| 13 | 42711-MJL-D34 | TIRE, RR. (160/60ZR17 M/C 69W) (DUNLOP) | 1 шт. | — | |
|
| 14 | 42711-MKA-D81 | TIRE, RR. (160/60ZR17 M/C 69W) (BS) | 1 шт. | — | |
|
| 15 | 42755-MKA-D81 | VALVE ASSY., CLAMP IN | 1 шт. | — | |
|
| 16 | 42758-MKA-D81 | O-RING | 1 шт. | — | |
|
| 17 | 43251-MGS-D31 | DISK, RR. BRAKE (SUNSTAR) | 1 шт. | — | |
|
| 18 | 90102-MAS-000 | BOLT 2, STUD (12X25) | 5 шт. | — | |
|
| 19 | 90105-MBB-000 | BOLT, BRAKE DISK (8X24) | 5 шт. | — | |
|
| 20 | 90105-MV9-003 | BOLT, DISK (8X24) (TSUKIBOSHI) | 5 шт. | — | |
|
| 21 | 90306-KF0-003 | NUT, FLANGE (12MM) (FUSE RASHI) | 5 шт. | — | |
|
| 22 | 90306-MCS-G01 | NUT, U (18MM) | 1 шт. | — | |
|
| 23 | 90401-MAS-000 | WASHER (20X31.5X2) | 1 шт. | — | |
|
| 24 | 90559-MER-R60 | WASHER, RR. SWINGARM | 2 шт. | — | |
|
| 25 | 91051-MGS-D31 | BEARING, ANGULAR BALL (22X50X15) | 1 шт. | — | |
|
| 26 | 91053-MGS-D31 | BEARING, RADIAL BALL (6204UU) | 2 шт. | — | |
|
| 27 | 91251-MGS-D31 | DUST SEAL (30X50X7) | 1 шт. | — | |
|
| 28 | 91253-MAE-003 | DUST SEAL (30X47X7.5) | 1 шт. | — | |
|
| 29 | 91351-MGS-D30 | O-RING (55X2) | 1 шт. | — | |
|
