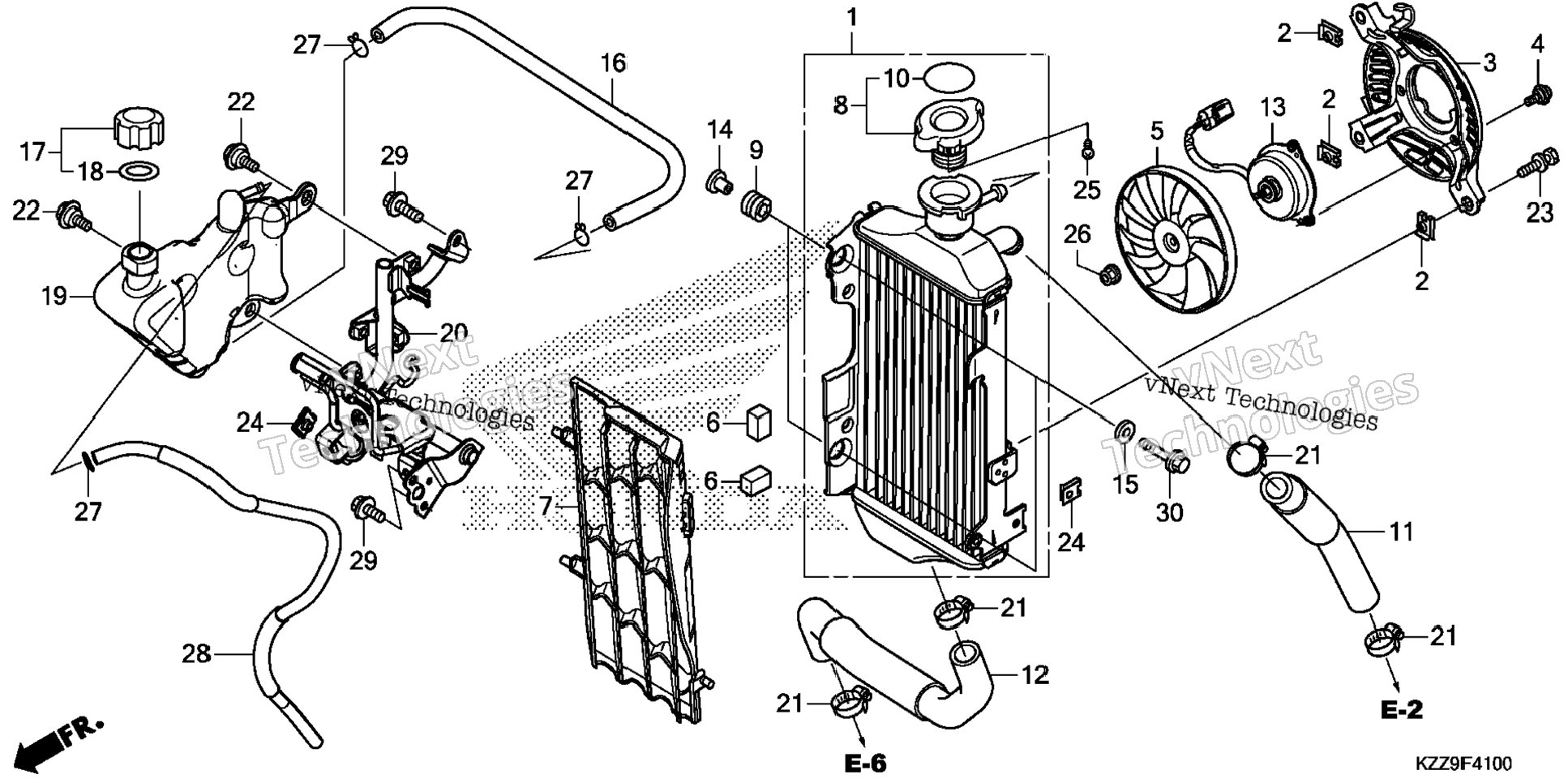

| 1 | 19010-KZZ-D11 | RADIATOR | 1 шт. | — | |
|
| 2 | 19014-KEA-003 | NUT, SETTING (6MM) | 3 шт. | — | |
|
| 3 | 19015-KZZ-902 | SHROUD | 1 шт. | — | |
|
| 4 | 19016-KEA-003 | SCREW, PAN (4X8.5) | 3 шт. | — | |
|
| 5 | 19020-KVZ-631 | FAN, COOLING | 1 шт. | — | |
|
| 6 | 19022-KZZ-900 | RUBBER, RADIATOR | 2 шт. | — | |
|
| 7 | 19034-KZZ-900 | GRILLE, RADIATOR | 1 шт. | — | |
|
| 8 | 19037-KZZ-D11 | CAP, RADIATOR (TOYO) | 1 шт. | — | |
|
| 9 | 19051-KRN-000 | RUBBER, RADIATOR MOUNTING | 2 шт. | — | |
|
| 10 | 19046-PAA-A00 | LABEL, RADIATOR CAP | 1 шт. | — | |
|
| 11 | 19062-KZZ-900 | HOSE, RADIATOR (UPPER) | 1 шт. | — | |
|
| 12 | 19067-KZZ-900 | HOSE, RADIATOR (LOWER) | 1 шт. | — | |
|
| 13 | 19080-KZZ-J01 | MOTOR ASSY., FAN (TOYO) | 1 шт. | — | |
|
| 14 | 19091-KZZ-900 | COLLAR, RADIATOR MOUNTING | 2 шт. | — | |
|
| 15 | 19092-KZZ-900 | WASHER, RADIATOR MOUNTING | 2 шт. | — | |
|
| 16 | 19101-KZZ-J00 | TUBE, RESERVE TANK | 1 шт. | — | |
|
| 17 | 19105-KZZ-900 | CAP ASSY., RESERVE TANK | 1 шт. | — | |
|
| 18 | 19107-MG8-000 | GASKET, RESERVE TANK | 1 шт. | — | |
|
| 19 | 19110-KZZ-J00 | TANK, RADIATOR RESERVE | 1 шт. | — | |
|
| 20 | 19150-KZZ-J00 | STAY, RESERVE TANK | 1 шт. | — | |
|
| 21 | 19517-ML7-691 | CLAMP, HOSE (22-29MM) | 4 шт. | — | |
|
| 22 | 90110-KZZ-900 | BOLT, FLANGE (6MM) | 2 шт. | — | |
|
| 23 | 90120-KCR-003 | BOLT-WASHER (6X16) | 3 шт. | — | |
|
| 24 | 90303-KZZ-J00 | NUT, CLIP (6MM) | 2 шт. | — | |
|
| 25 | 93901-22020 | SCREW, TAPPING (3X6) | 1 шт. | — | |
|
| 26 | 90315-MFL-003 | NUT, FLANGE (3MM) | 1 шт. | — | |
|
| 27 | 95002-02100 | CLIP, TUBE (B10) | 3 шт. | — | |
|
| 28 | 19102-KZZ-J00 | TUBE, RESERVE TANK (DRAIN) | 1 шт. | — | |
|
| 29 | 95701-06010-00 | BOLT, FLANGE (6X10) BOLT, FLANGE (6X12) | 3 шт. | — | |
|
| 30 | 96001-06028-00 | BOLT, FLANGE (6X28) | 2 шт. | — | |
|
