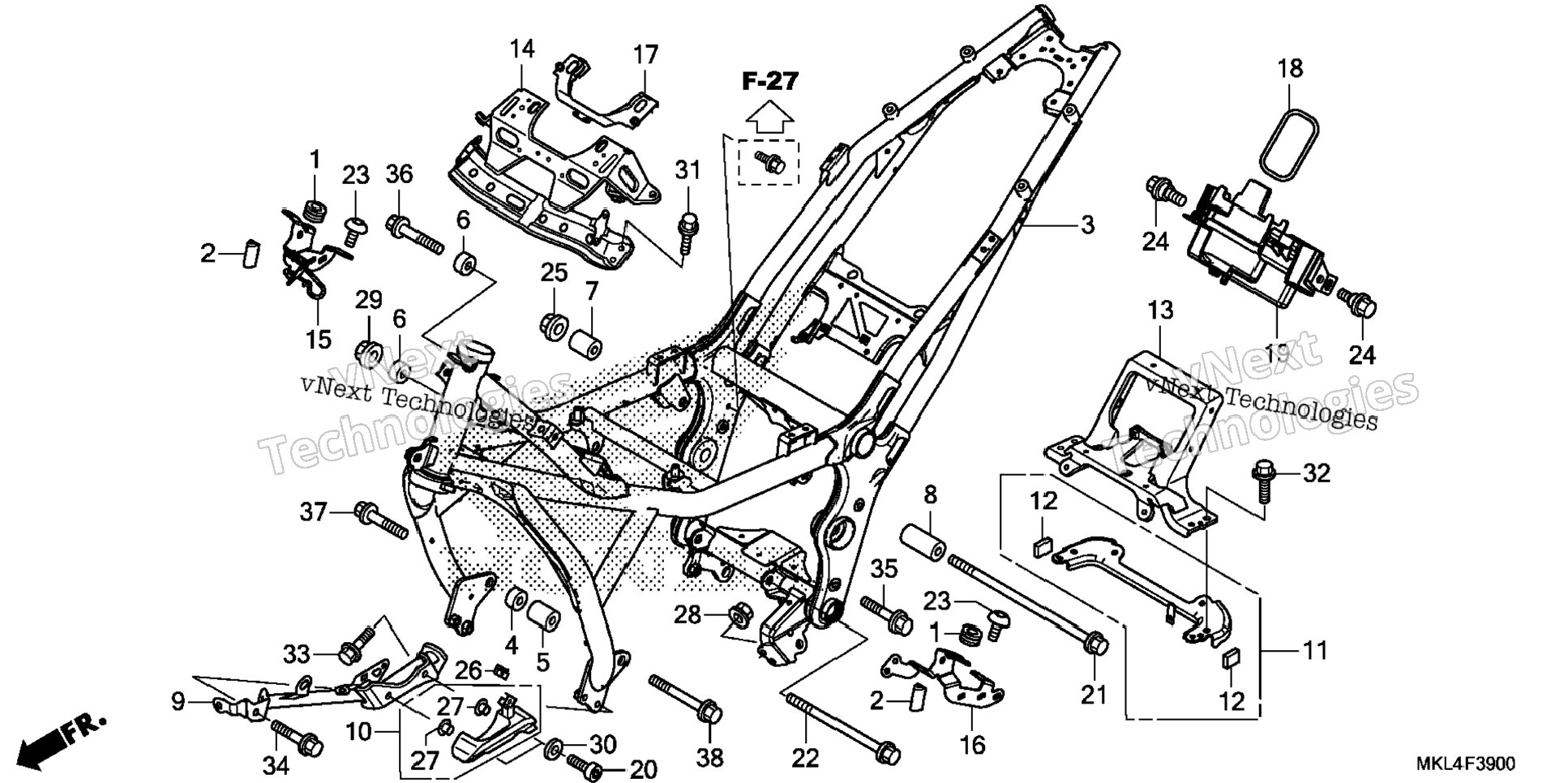

| 1 | 17245-107-010 | RUBBER, AIR CLEANER HOUSING MOUNTING | 2 шт. | — | |
|
| 2 | 17516-KCZ-000ZB | TRIM, FUEL TANK *NH1* (BLACK) | 2 шт. | — | |
|
| 3 | 50100-MKA-D80ZA | FRAME *NH303M* (MAT AXIS GRAY METALLIC) | 1 шт. | — | |
|
| 4 | 50191-MGS-D10 | COLLAR A, R. ENGINE HANGER | 1 шт. | — | |
|
| 5 | 50192-MGS-D10 | COLLAR A, L. ENGINE HANGER | 1 шт. | — | |
|
| 6 | 50193-MGS-D10 | COLLAR B, ENGINE HANGER | 2 шт. | — | |
|
| 7 | 50194-MGS-D10 | COLLAR C, R. ENGINE HANGER | 1 шт. | — | |
|
| 8 | 50195-MGS-D10 | COLLAR C, L. ENGINE HANGER | 1 шт. | — | |
|
| 9 | 50230-MJL-D30 | STAY SET, FR. TANK | 1 шт. | — | |
|
| 10 | 50233-MGS-D30 | RUBBER, CROSS PLATE | 2 шт. | — | |
|
| 11 | 50234-MGS-T50 | PLATE, CENTER CROSS | 1 шт. | — | |
|
| 12 | 50236-MGS-D30 | PLATE B, CROSS | 1 шт. | — | |
|
| 13 | 50237-MJL-D30 | STAY, R. AIR CLEANER HOUSING | 1 шт. | — | |
|
| 14 | 50238-MJL-D30 | STAY, L. AIR CLEANER HOUSING | 1 шт. | — | |
|
| 15 | 50239-MGS-D30 | RUBBER, CROSS PLATE | 1 шт. | — | |
|
| 16 | 80123-GN5-900 | BAND, TOOL | 1 шт. | — | |
|
| 17 | 81230-MKL-D50 | BOX, ELECTRIC CONTROL UNIT | 1 шт. | — | |
|
| 18 | 90103-MGS-D30 | BOLT, FLANGE (12X276) | 1 шт. | — | |
|
| 19 | 90104-MGS-D30 | BOLT, FLANGE (12X168) | 1 шт. | — | |
|
| 20 | 90106-KSE-000 | SCREW, PAN (6X12) | 2 шт. | — | |
|
| 21 | 90111-162-000 | BOLT, FLANGE (6MM) | 2 шт. | — | |
|
| 22 | 90364-MEJ-000 | NUT, FLANGE (12MM) | 1 шт. | — | |
|
| 23 | 94050-12000 | NUT, FLANGE (12MM) | 1 шт. | — | |
|
| 24 | 95701-06012-08 | BOLT, FLANGE (6X12) | 4 шт. | — | |
|
| 25 | 95701-06022-08 | BOLT, FLANGE (6X22) | 4 шт. | — | |
|
| 26 | 95701-12035-08 | BOLT, FLANGE (12X35) | 1 шт. | — | |
|
| 27 | 95701-12045-08 | BOLT, FLANGE (12X45) | 1 шт. | — | |
|
| 28 | 95701-12055-08 | BOLT, FLANGE (12X55) | 1 шт. | — | |
|
| 29 | 95701-12080-08 | BOLT, FLANGE (12X80) | 1 шт. | — | |
|
