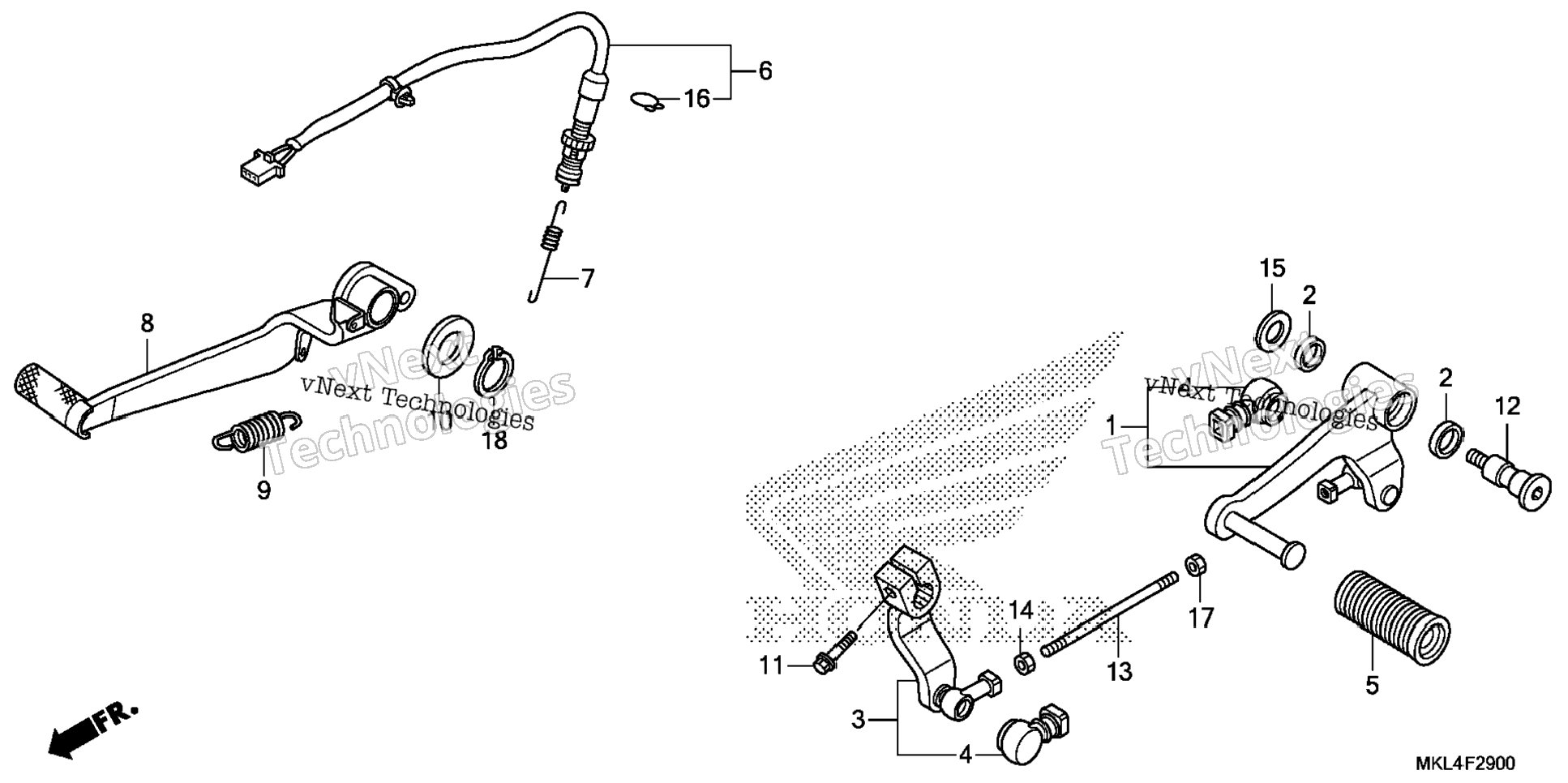

| 1 | 24705-MGS-D30 | PEDAL, GEARSHIFT | 1 шт. | — | |
|
| 2 | 24706-MK3-770 | RUBBER, DUST SEAL | 2 шт. | — | |
|
| 3 | 24710-MGS-D30 | ARM, GEARSHIFT | 1 шт. | — | |
|
| 4 | 24724-MBW-D21 | COVER, DUST | 2 шт. | — | |
|
| 5 | 24781-KR3-770 | RUBBER, GEARSHIFT PEDAL | 1 шт. | — | |
|
| 6 | 35350-MGS-D32 | SWITCH ASSY., RR. STOP | 1 шт. | — | |
|
| 7 | 35357-MGS-D30 | SPRING, STOP SWITCH | 1 шт. | — | |
|
| 8 | 46500-MGS-D30 | PEDAL, BRAKE | 1 шт. | — | |
|
| 9 | 46511-MV9-000 | SPRING, BRAKE PEDAL | 1 шт. | — | |
|
| 10 | 50715-KE8-000 | PLATE, PILLION STEP SIDE | 1 шт. | — | |
|
| 11 | 90010-ML0-720 | BOLT, FLANGE (6X20) | 1 шт. | — | |
|
| 12 | 90115-KAF-000 | BOLT, CHANGE PIVOT | 1 шт. | — | |
|
| 13 | 90165-MGS-D30 | BOLT A, TIE ROD | 1 шт. | — | |
|
| 14 | 90201-KV3-700 | NUT B, TIE ROD (LEFT HAND THREAD) | 1 шт. | — | |
|
| 15 | 90514-921-000 | WASHER (8MM) (Honda Code 0285189) | 1 шт. | — | |
|
| 16 | 90601-KAF-003 | CLIP, SWITCH COVER | 1 шт. | — | |
|
| 17 | 94002-06020-0S | NUT, HEX. (6MM) | 1 шт. | — | |
|
| 18 | 94511-19000 | CIRCLIP (OUTER) (19MM) | 1 шт. | — | |
|
