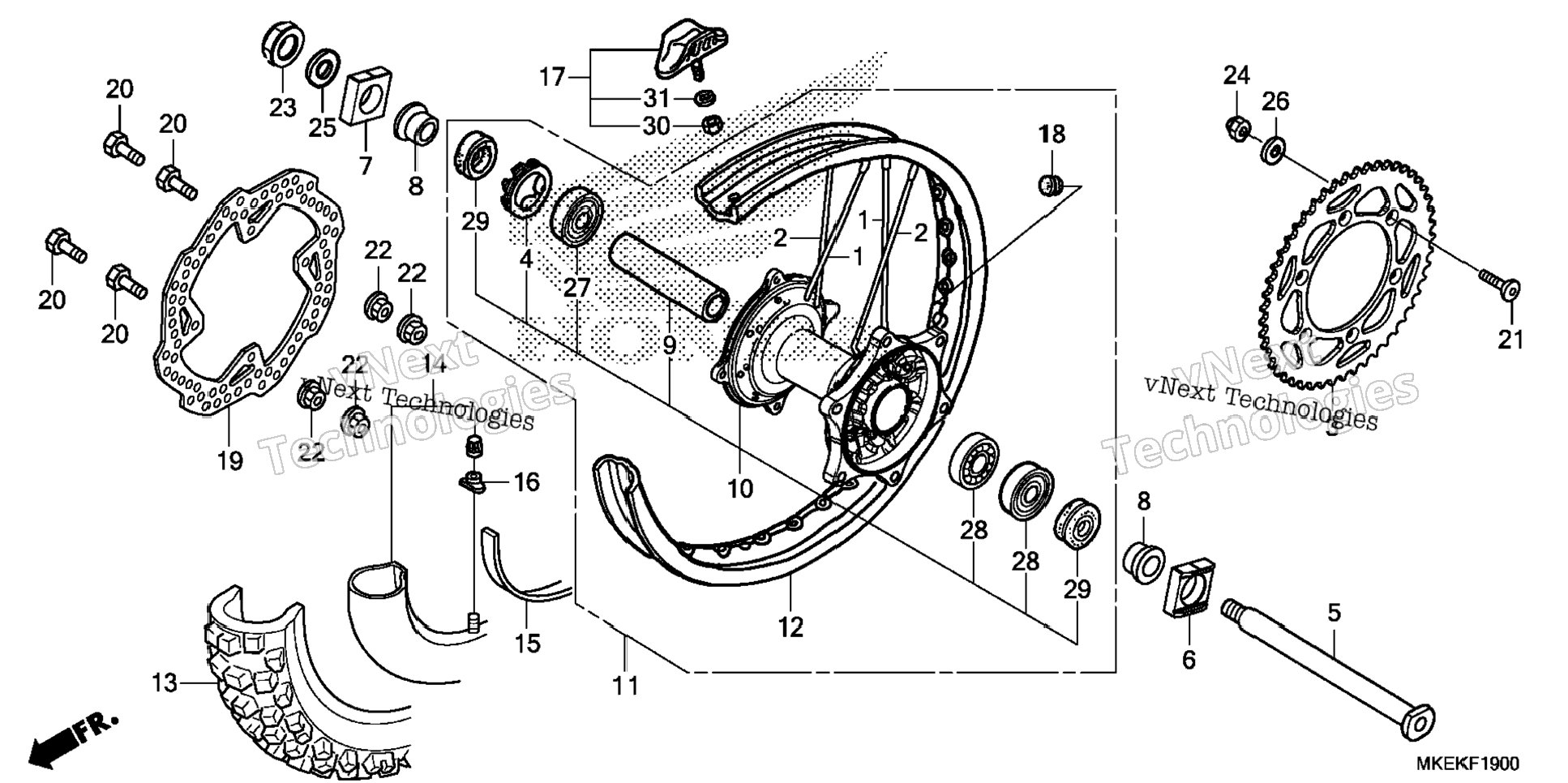

| 1 | 06420-KRN-710 | SPOKE SET, RR. (INSIDE) | 16 шт. | — | |
|
| 2 | 06421-KRN-710 | SPOKE SET, RR. (OUTSIDE) | 16 шт. | — | |
|
| 3 | 41201-MKE-A70 | SPROCKET, FINAL DRIVEN (49T) | 1 шт. | — | |
|
| 4 | 41202-MKE-A00 | SPROCKET, FINAL DRIVEN (48T) (Optional). | 1 шт. | — | |
|
| 5 | 41203-MKE-A00 | SPROCKET, FINAL DRIVEN (50T) (Optional). | 1 шт. | — | |
|
| 6 | 41231-KZ4-J20 | RETAINER, RR. WHEEL BEARING | 1 шт. | — | |
|
| 7 | 42301-KRN-A30 | AXLE, RR. WHEEL | 1 шт. | — | |
|
| 8 | 42305-KRN-A30 | COLLAR, L. RR. AXLE | 1 шт. | — | |
|
| 9 | 42306-KZ4-J20 | COLLAR, R. RR. AXLE | 1 шт. | — | |
|
| 10 | 42311-MKE-A60 | COLLAR, RR. WHEEL SIDE | 2 шт. | — | |
|
| 11 | 42620-MKE-A60 | COLLAR, RR. WHEEL DISTANCE | 1 шт. | — | |
|
| 12 | 42635-MKE-A60 | HUB SUB-ASSY., RR. | 1 шт. | — | |
|
| 13 | 42650-MKE-A90 | WHEEL SUB-ASSY., RR. | 1 шт. | — | |
|
| 14 | 42701-MKE-A91 | RIM, RR. WHEEL (19X2.15) | 1 шт. | — | |
|
| 15 | 42711-MKE-A01 | TIRE, RR. (120/80-19 63M) (DUNLOP) | 0 шт. | — | |
|
| 16 | 42712-KZ3-611 | TUBE, TIRE (110/90-19) (DUNLOP) | 1 шт. | — | |
|
| 17 | 42713-KZ3-611 | BAND, TIRE RIM (DUNLOP) | 1 шт. | — | |
|
| 18 | 42714-KA3-710 | CAP, VALVE | 1 шт. | — | |
|
| 19 | 42715-MA0-770 | STOPPER, BEAD (2.15) | 1 шт. | — | |
|
| 20 | 42717-329-000 | CAP, RIM HOLE | 1 шт. | — | |
|
| 21 | 43351-KRN-A90 | DISK, RR. BRAKE | 1 шт. | — | |
|
| 22 | 90105-MAC-680 | BOLT, DISK (6X19) | 4 шт. | — | |
|
| 23 | 90125-KA4-000 | SCREW, FLAT (8X31) | 6 шт. | — | |
|
| 24 | 90301-473-003 | NUT, U (6MM) NUT, FLANGE (6MM) | 4 шт. | — | |
|
| 25 | 90305-KZ4-J20 | NUT, U (22MM) | 1 шт. | — | |
|
| 26 | 90309-ML3-791 | NUT, U (8MM) (FUSE RASHI) | 6 шт. | — | |
|
| 27 | 90401-KZ4-J20 | WASHER (22X35X2) | 1 шт. | — | |
|
| 28 | 90465-MC4-000 | WASHER (8MM) | 6 шт. | — | |
|
| 29 | 91051-KZ4-J21 | BEARING, RADIAL BALL (69052RS) | 1 шт. | — | |
|
| 30 | 91052-KZ4-J21 | BEARING, RADIAL BALL (6905RS) | 2 шт. | — | |
|
| 31 | 91251-KZ4-J21 | DUST SEAL (32X43X7) | 2 шт. | — | |
|
| 32 | 94001-08000-0S | NUT, HEX. (8MM) | 1 шт. | — | |
|
| 33 | 94111-08000 | WASHER, SPRING (8MM) | 1 шт. | — | |
|
