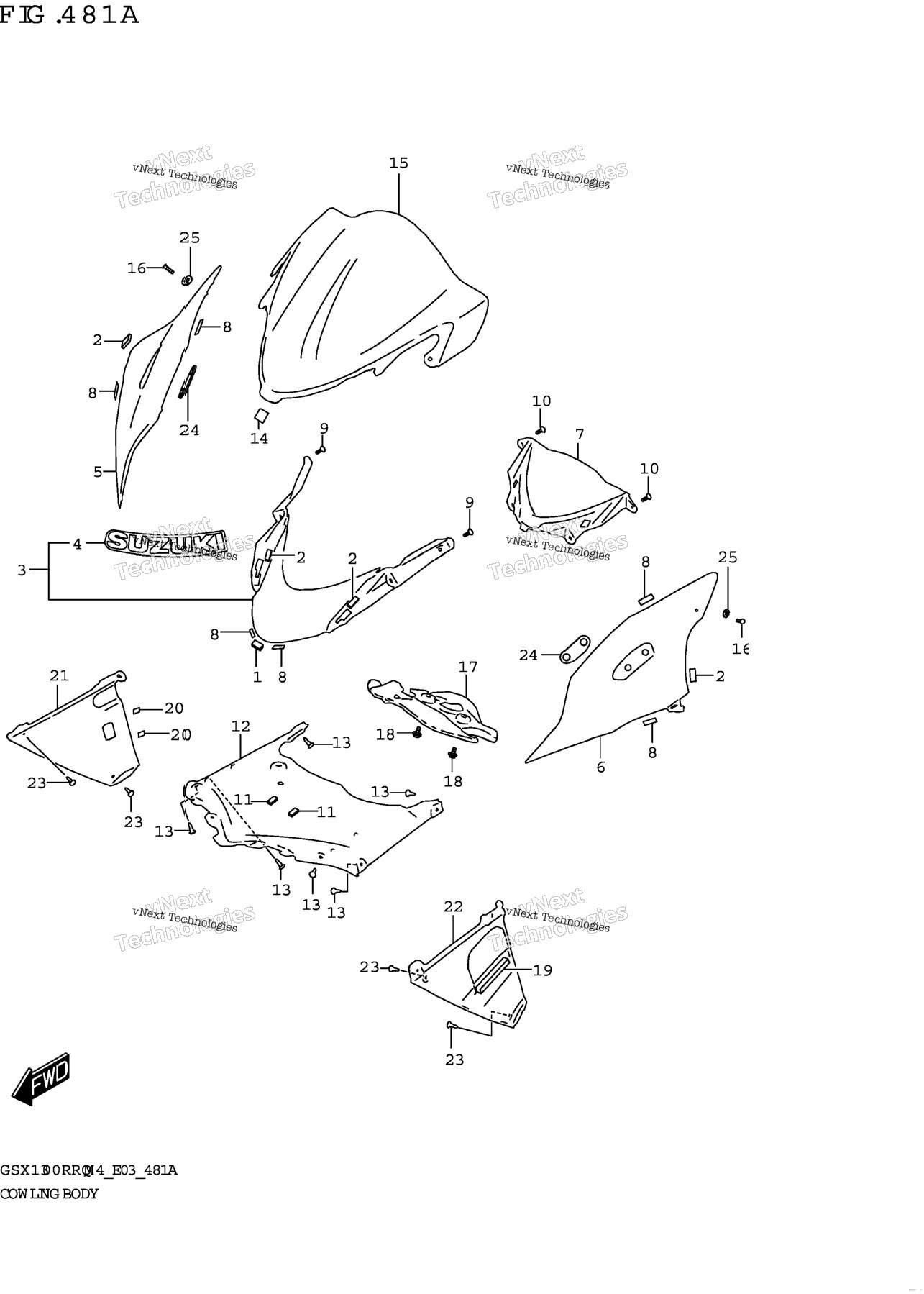

| 1 | 44572-37H00 | FASTENER, COWLING (20X15X0.8) | 1 шт. | — | |
|
| 3 | 94410-10L10-QRE | COWLING,BODY (ORANGE) | 1 шт. | — | |
|
| 4 | 68281-24F11-019 | .EMBLEM,"SUZUKI" (BLACK) | 1 шт. | — | |
|
| 5 | 94412-10L00-QRE | COWLING,BODY,R (ORANGE) | 1 шт. | — | |
|
| 6 | 94413-10L00-QRE | COWLING,BODY,L (ORANGE) | 1 шт. | — | |
|
| 7 | 94414-10L00 | PANEL,METER FRONT | 1 шт. | — | |
|
| 8 | 94443-06G00 | TAPE (6X25X0.13) | 6 шт. | — | |
|
| 10 | 03541-0516A | SCREW | 2 шт. | — | |
|
| 10 | 03541-0516A | SCREW | 2 шт. | — | |
|
| 12 | 94419-10L00 | COVER,BODY COWL | 1 шт. | — | |
|
| 14 | 47123-17K00 | .CUSHION (20X20X1) | 1 шт. | — | |
|
| 15 | 94611-10L00 | WINDSCREEN | 1 шт. | — | |
|
| 16 | 09139-05104 | SCREW,WINDSCREEN | 2 шт. | — | |
|
| 17 | 94458-15H10 | COVER,LWR BRACKET | 1 шт. | — | |
|
| 18 | 09111-06107 | BOLT (6X12) | 2 шт. | — | |
|
| 19 | 45518-16G00 | CUSHION,SEAT TAIL COVER CTR | 1 шт. | — | |
|
| 20 | 73415-70A00 | .PAD | 4 шт. | — | |
|
| 20 | 73415-70A00 | .PAD | 2 шт. | — | |
|
| 20 | 73415-70A00 | .PAD | 2 шт. | — | |
|
| 21 | 94461-10L00 | COWLING,UNDER INNER,R | 1 шт. | — | |
|
| 22 | 94462-10L00 | COWLING,UNDER INNER,L | 1 шт. | — | |
|
| 23 | 09409-06314 | CLIP (5.9X20.5) | 6 шт. | — | |
|
| 23 | 09409-06314 | CLIP (5.9X20.5) | 4 шт. | — | |
|
| 24 | 94576-10L00 | CUSHION,BRACE COWLING | 2 шт. | — | |
|
| 25 | 09161-05010 | WASHER (5.2X11.0X1.0) | 2 шт. | — | |
|
