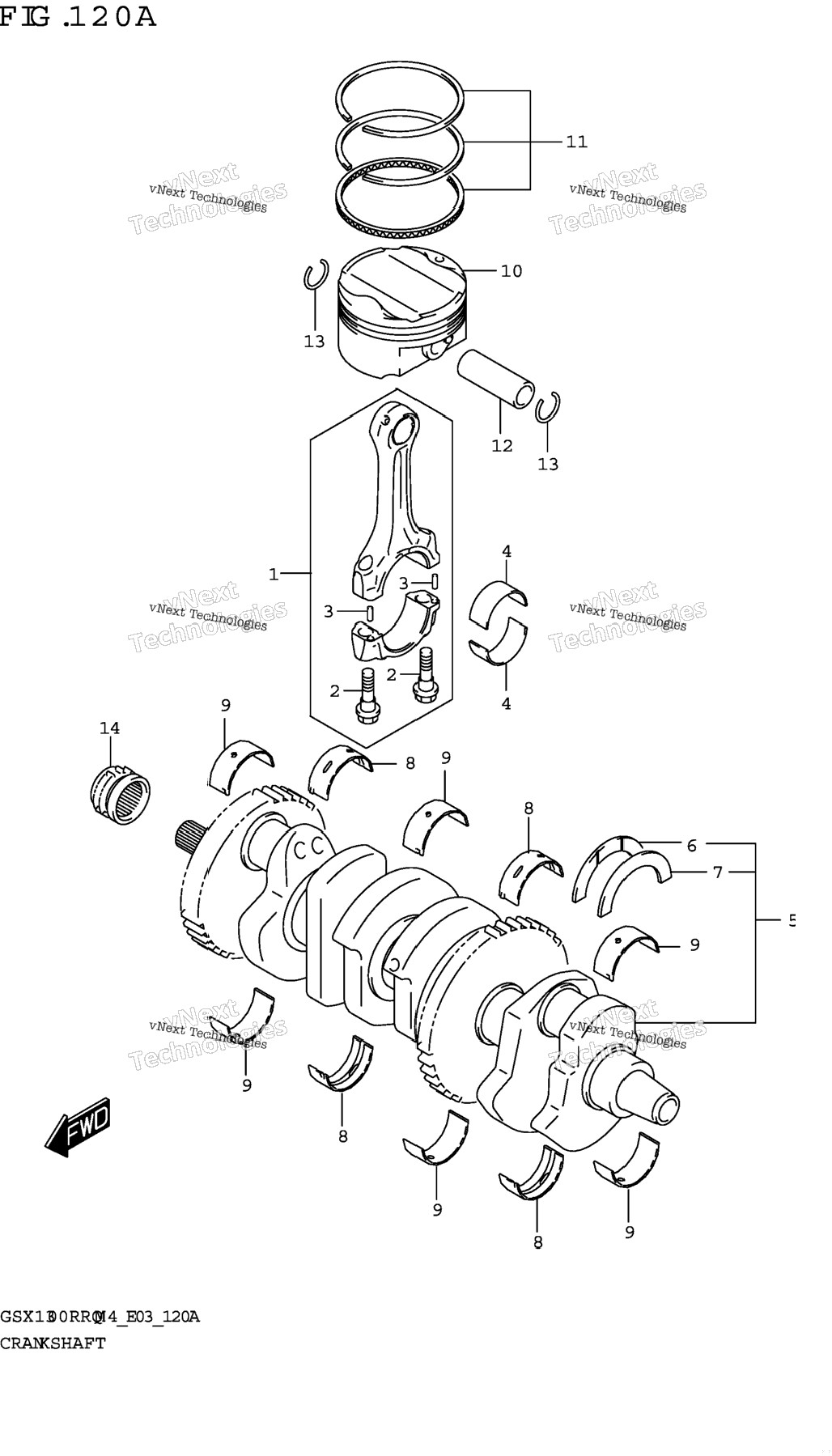

| 1 | 12160-10L00 | CONNROD ASSY | 4 шт. | — | |
|
| 2 | 12163-10L00 | .BOLT,CONNROD | 8 шт. | — | |
|
| 3 | 04221-04089 | .PIN | 8 шт. | — | |
|
| 4-1 | 12164-10L00-0A0 | BEARING,CRANK PIN (GREEN) | 8 шт. | — | |
|
| 4-2 | 12164-10L00-0B0 | BEARING,CRANK PIN (BLACK) | 8 шт. | — | |
|
| 4-3 | 12164-10L00-0C0 | BEARING,CRANK PIN (BROWN) | 8 шт. | — | |
|
| 4-4 | 12164-10L00-0D0 | BEARING,CRANK PIN (YELLOW) | 8 шт. | — | |
|
| 5 | 12000-10840 | CRANKSHAFT SET | 1 шт. | — | |
|
| 7-1 | 12228-24F00-0A0 | .BEARING,CRANK THRUST,L (RED) | 1 шт. | — | |
|
| 7-2 | 12228-24F00-0B0 | .BEARING,CRANK THRUST,L (BLAC ) | 1 шт. | — | |
|
| 7-3 | 12228-24F00-0C0 | .BEARING,CRANK THRUST,L (BLUE | 1 шт. | — | |
|
| 7-4 | 12228-24F00-0D0 | .BEARING,CRANK THRUST (GREEN) | 1 шт. | — | |
|
| 7-4 | 12228-24F00-0D0 | .BEARING,CRANK THRUST (GREEN) | 1 шт. | — | |
|
| 7-5 | 12228-24F00-0E0 | .BEARING,CRANK THRUST,L (YELL W) | 1 шт. | — | |
|
| 7-6 | 12228-24F00-0F0 | .BEARING,CRANK THRUST,L (WHIT ) | 1 шт. | — | |
|
| 8-1 | 12229-15H10-0A0 | BEARING,CRANKSHAFT (GREEN) | 4 шт. | — | |
|
| 8-2 | 12229-15H10-0B0 | BEARING,CRANKSHAFT (BLACK) | 4 шт. | — | |
|
| 8-3 | 12229-15H10-0C0 | BEARING,CRANKSHAFT (BROWN) | 4 шт. | — | |
|
| 8-4 | 12229-15H10-0D0 | BEARING,CRANKSHAFT (YELLOW) | 4 шт. | — | |
|
| 8-5 | 12229-15H10-0E0 | BEARING,CRANKSHAFT (BLUE) | 4 шт. | — | |
|
| 9-1 | 12229-10L00-0A0 | BEARING,CRANKSHAFT (GREEN) | 6 шт. | — | |
|
| 9-2 | 12229-10L00-0B0 | BEARING,CRANKSHAFT (BLACK) | 6 шт. | — | |
|
| 9-3 | 12229-10L00-0C0 | BEARING,CRANKSHAFT (BROWN) | 6 шт. | — | |
|
| 9-4 | 12229-10L00-0D0 | BEARING,CRANKSHAFT (YELLOW) | 6 шт. | — | |
|
| 9-5 | 12229-10L00-0E0 | BEARING,CRANKSHAFT (BLUE) | 6 шт. | — | |
|
| 10 | 12111-10L00-0F0 | PISTON | 4 шт. | — | |
|
| 11 | 12140-10L00 | RING SET,PISTON | 4 шт. | — | |
|
| 12 | 12151-10L00 | PIN,PISTON | 4 шт. | — | |
|
| 13 | 09381-18002 | CIRCLIP (OD:20.5) | 8 шт. | — | |
|
| 14 | 12731-24F10 | SPROCKET,CAM CHAIN DRIVE | 1 шт. | — | |
|
