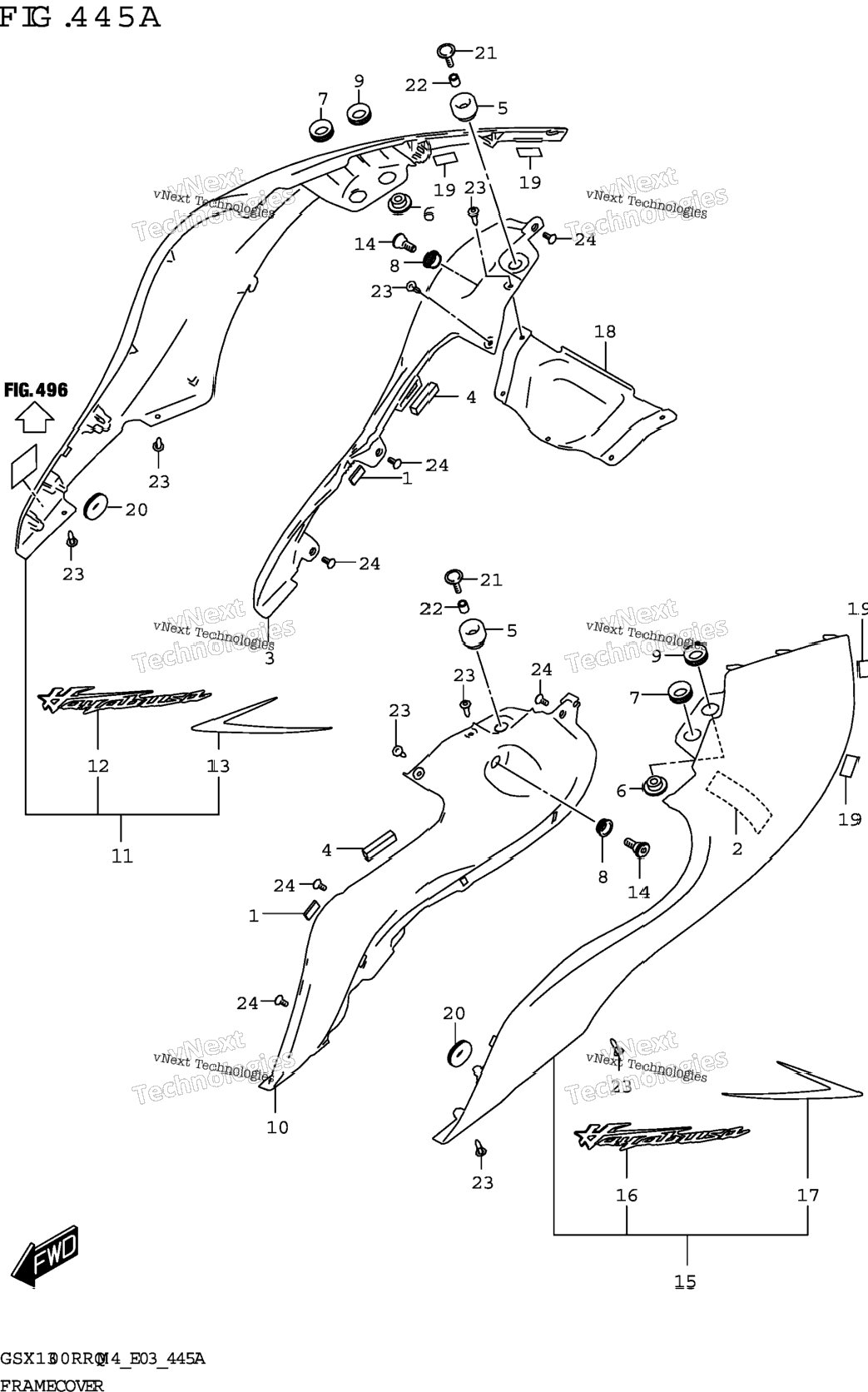

| 1 | 33652-22D00 | CUSHION (11X20X3) | 2 шт. | — | |
|
| 2 | 33652-34000 | PROTECTOR (30X80X2) | 1 шт. | — | |
|
| 3 | 47111-10L00-QRE | COVER,FRAME,R (ORANGE) | 1 шт. | — | |
|
| 4 | 47112-10L00 | CUSHION,FRAME COVER NO.2 | 2 шт. | — | |
|
| 5 | 47115-16G01 | CUSHION,FRAME COVER UP | 2 шт. | — | |
|
| 6 | 47190-24F21 | WASHER,FRAME COVER | 2 шт. | — | |
|
| 7 | 47191-24F00 | CUSHION (16X26X8) | 2 шт. | — | |
|
| 8 | 47191-24F20 | CUSHION,FRAME COVER CTR | 2 шт. | — | |
|
| 9 | 47191-24F30 | CUSHION,FRAME COVER UP RR RR | 2 шт. | — | |
|
| 10 | 47211-10L00-QRE | COVER,FRAME,L (ORANGE) | 1 шт. | — | |
|
| 11 | 47320-10L10-YVB | COVER,FRAME REAR,R (BLACK) | 1 шт. | — | |
|
| 12 | 68131-10L00-B9E | .EMBLEM,FRAME COVER,R (ORANGE BLACK) | 1 шт. | — | |
|
| 13 | 68135-10L00-AV4 | .TAPE,FRAME COVER,R (BLACK,RE ) | 1 шт. | — | |
|
| 14 | 47323-10L00 | BOLT,FRAME COVER REAR | 2 шт. | — | |
|
| 15 | 47330-10L10-YVB | COVER,FRAME REAR,L (BLACK) | 1 шт. | — | |
|
| 16 | 68141-10L00-B9E | .EMBLEM,FRAME COVER,L (ORANGE BLACK) | 1 шт. | — | |
|
| 17 | 68145-10L00-AV4 | .TAPE,FRAME COVER,L (BLACK,RE ) | 1 шт. | — | |
|
| 18 | 47411-10L00 | LID,FRAME COVER | 1 шт. | — | |
|
| 19 | 94443-06G00 | TAPE (6X25X0.13) | 4 шт. | — | |
|
| 20 | 94478-14J00 | CUSHION | 2 шт. | — | |
|
| 21 | 09136-06126 | SCREW | 2 шт. | — | |
|
| 22 | 09180-06288 | SPACER (6.5X10X11) | 2 шт. | — | |
|
| 23 | 09409-06314 | CLIP (5.9X20.5) | 8 шт. | — | |
|
| 24 | 03541-0512A | SCREW | 6 шт. | — | |
|
