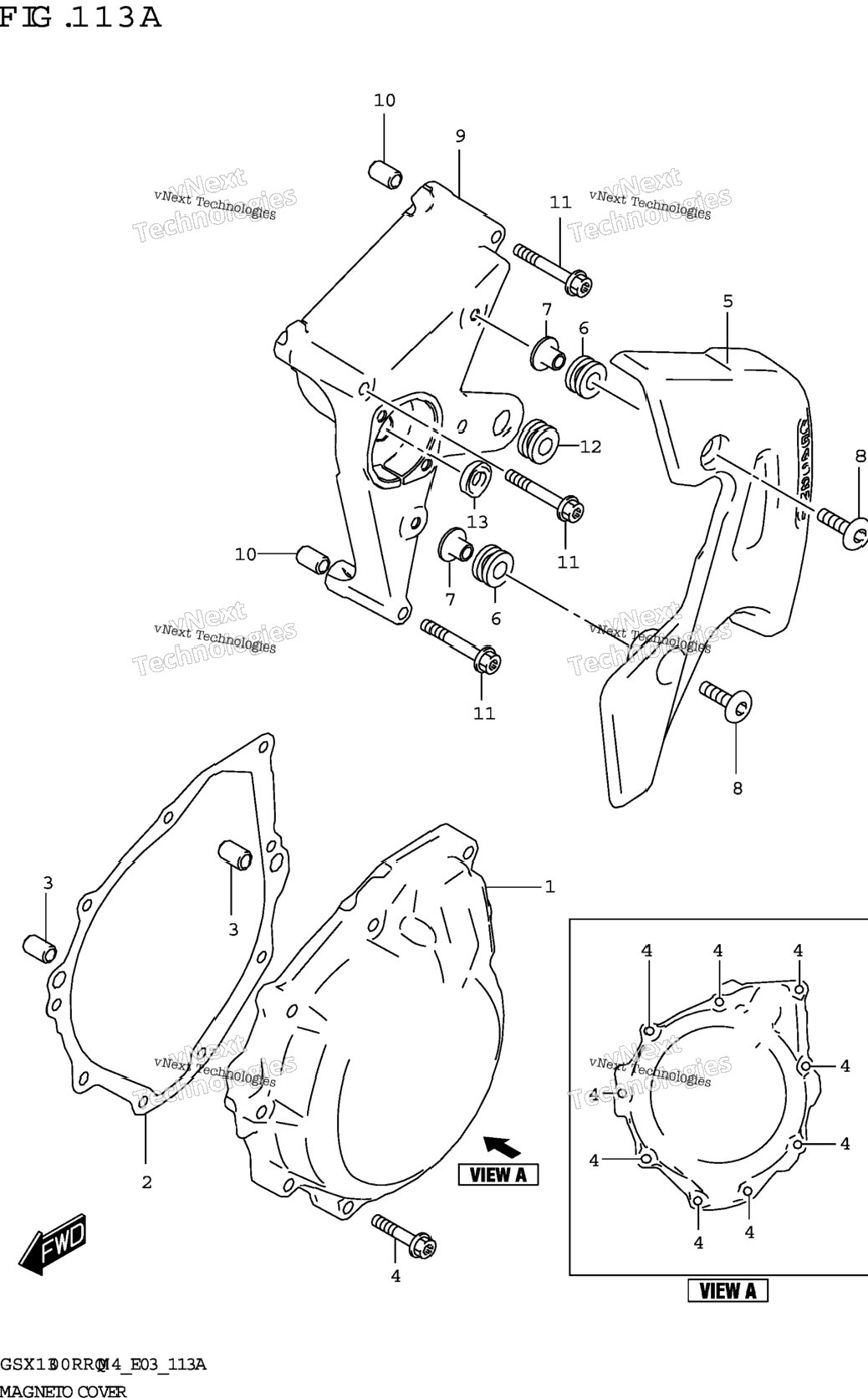

| 1 | 11351-10L00 | COVER,MAGNETO | 1 шт. | — | |
|
| 2 | 11483-24F00 | .GASKET,MAGNETO COVER | 1 шт. | — | |
|
| 3 | 04211-09149 | PIN (8.5X18X2.3) | 2 шт. | — | |
|
| 4 | 09103-06529 | BOLT (6X30) | 9 шт. | — | |
|
| 5 | 11361-10L00 | COVER,ENG SPROCKET | 1 шт. | — | |
|
| 6 | 09320-09016 | CUSHION (9X18X9.5) | 2 шт. | — | |
|
| 7 | 09169-06062 | WASHER (6.3X17X1.6) | 2 шт. | — | |
|
| 8 | 09139-06063 | SCREW (6X20) | 2 шт. | — | |
|
| 9 | 11371-10L00 | HOLDER,CL RELEASE | 1 шт. | — | |
|
| 10 | 04211-09149 | PIN (8.5X18X2.3) | 2 шт. | — | |
|
| 11 | 09103-06536 | BOLT,MAGNETO COVER (6X65) | 3 шт. | — | |
|
| 12 | 09320-08514 | CUSHION (8X26X7) | 1 шт. | — | |
|
| 13 | 09283-06003 | SEAL,OIL (6X12X4) | 1 шт. | — | |
|
