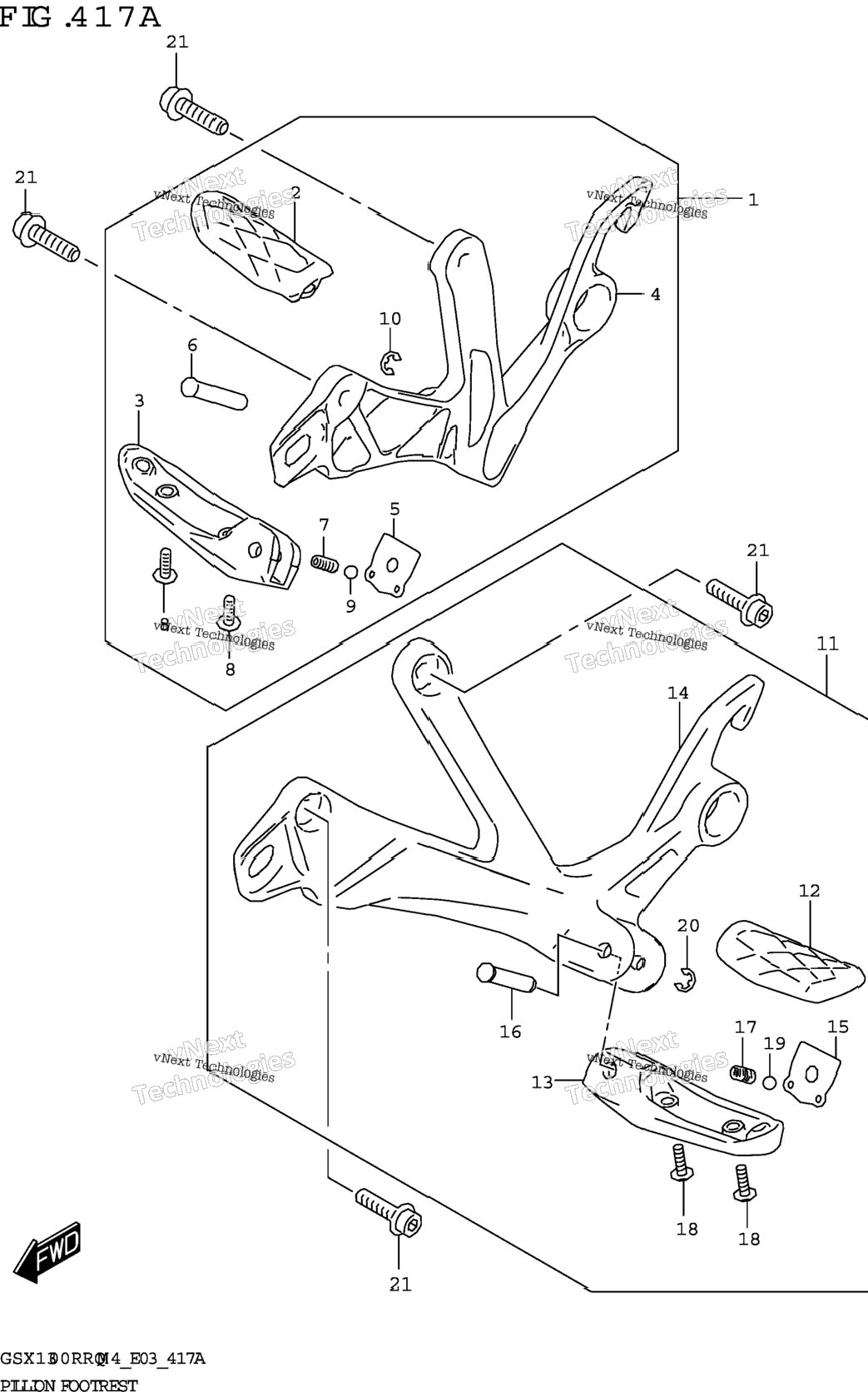

| 1 | 43600-10L00 | FOOTREST ASSY,PILLION RH | 1 шт. | — | |
|
| 2 | 43550-10L00 | RUBBER, FOOTREST | 1 шт. | — | |
|
| 3 | 43611-10L00 | BAR, PILLION FOOTREST RH | 1 шт. | — | |
|
| 4 | 43811-10L00 | .BRACKET,PILLION FOOTREST RH | 1 шт. | — | |
|
| 5 | 43816-10L00 | PLATE, PILLION FOOTREST | 1 шт. | — | |
|
| 6 | 09208-08019 | PIN | 1 шт. | — | |
|
| 7 | 09440-06039 | SPRING | 1 шт. | — | |
|
| 8 | 02142-0516A | .SCREW | 2 шт. | — | |
|
| 9 | 06111-08004 | BALL | 1 шт. | — | |
|
| 10 | 08332-1106A | E-RING | 1 шт. | — | |
|
| 11 | 43700-10L00 | FOOTREST ASSY,PILLION LH | 1 шт. | — | |
|
| 12 | 43550-10L00 | RUBBER, FOOTREST | 1 шт. | — | |
|
| 13 | 43621-10L00 | BAR, PILLION FOOTREST LH | 1 шт. | — | |
|
| 14 | 43821-10L00 | .BRACKET,PILLION FOOTREST LH | 1 шт. | — | |
|
| 15 | 43816-10L00 | PLATE, PILLION FOOTREST | 1 шт. | — | |
|
| 16 | 09208-08019 | PIN | 1 шт. | — | |
|
| 17 | 09440-06039 | SPRING | 1 шт. | — | |
|
| 18 | 02142-0516A | .SCREW | 2 шт. | — | |
|
| 19 | 06111-08004 | BALL | 1 шт. | — | |
|
| 20 | 08332-1106A | E-RING | 1 шт. | — | |
|
| 21 | 09106-08121 | BOLT (8X30) | 4 шт. | — | |
|
