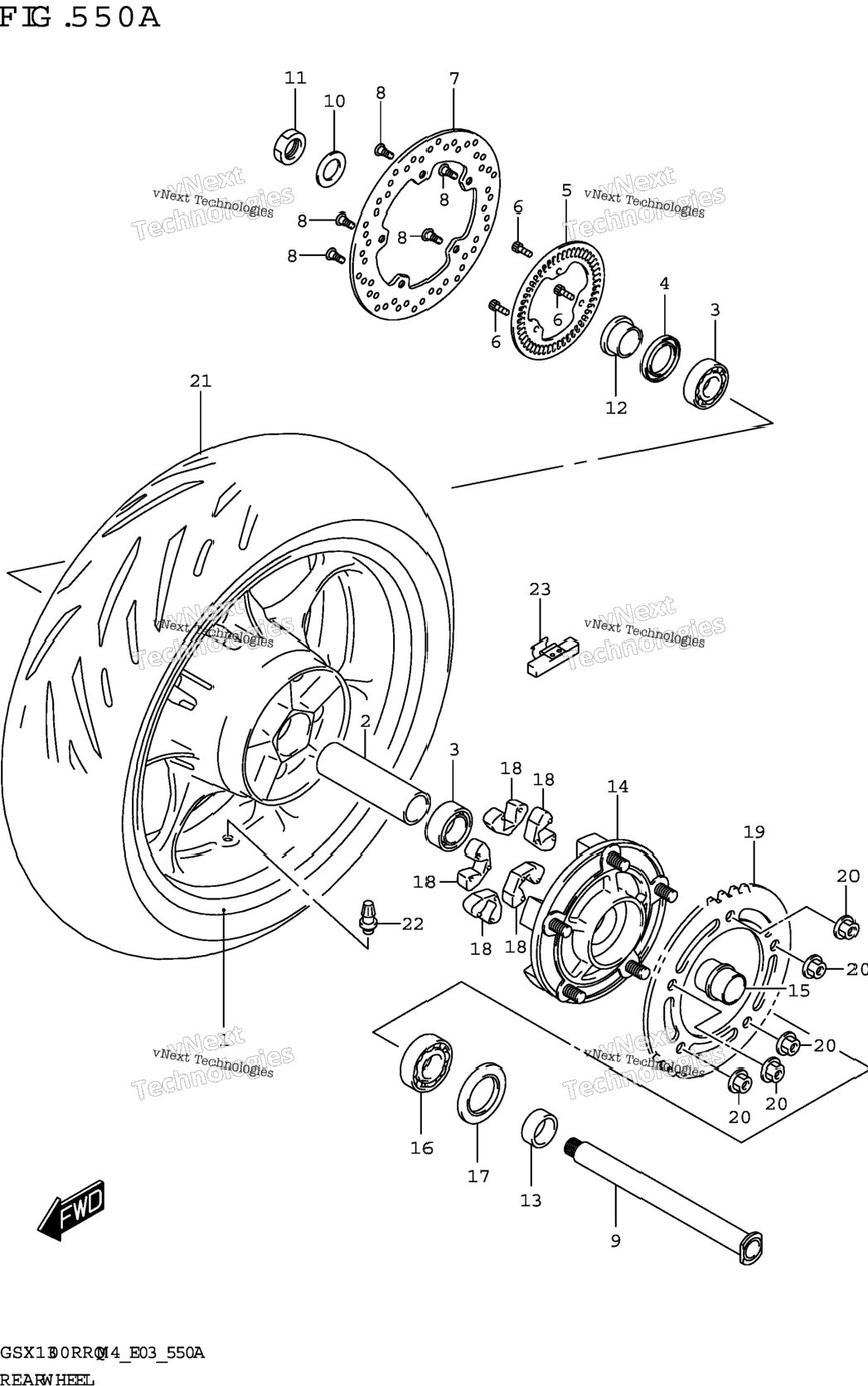

| 1 | 64111-10L01-019 | WHEEL,REAR (BLACK) | 1 шт. | — | |
|
| 2 | 64731-40F10 | SPACER,RR WHEEL BEARING | 1 шт. | — | |
|
| 3 | 09262-28062 | BEARING (28X52X12) | 2 шт. | — | |
|
| 4 | 09284-37002 | SEAL,OIL (37X52X8) | 1 шт. | — | |
|
| 5 | 64162-10L00 | RING,SPEED SENSOR RR | 1 шт. | — | |
|
| 6 | 07130-0512A | BOLT | 3 шт. | — | |
|
| 7 | 69211-10L00 | DISC,REAR BRAKE | 1 шт. | — | |
|
| 8 | 09106-08160 | BOLT (8X21) | 5 шт. | — | |
|
| 9 | 64711-33E20 | AXLE,RR | 1 шт. | — | |
|
| 10 | 09160-25070 | WASHER (25.2X42X3.2) | 1 шт. | — | |
|
| 11 | 64721-17K00 | NUT,REAR AXLE | 1 шт. | — | |
|
| 12 | 64741-35F10 | SPACER,REAR AXLE,R | 1 шт. | — | |
|
| 13 | 64751-49G00 | SPACER,RR AXLE,L | 1 шт. | — | |
|
| 14 | 64610-35F30 | DRUM,RR SPROCKET | 1 шт. | — | |
|
| 15 | 64733-35F00 | RETAINER,RR SPROCKET DRUM | 1 шт. | — | |
|
| 16 | 09262-32024 | BEARING (32X65X17) | 1 шт. | — | |
|
| 17 | 09285-39001 | OIL SEAL (39X65X7) | 1 шт. | — | |
|
| 18 | 64651-35F30 | ABSORBER,RR HUB SHOCK | 5 шт. | — | |
|
| 19 | 64511-15H00 | SPROCKET,RR (NT:43) | 1 шт. | — | |
|
| 20 | 08319-3110A | NUT | 5 шт. | — | |
|
| 21 | 65110-10L00 | TIRE,REAR 190/50ZR17M/C (BS) | 1 шт. | — | |
|
| 22 | 43130-24A00 | VALVE ASSY,WHEEL RIM (TR412) | 1 шт. | — | |
|
| 23 | 55411-22H00 | BALANCER,WHEEL (10G) | 1 шт. | — | |
|
| 24 | 55412-22H00 | BALANCER,WHEEL (20G) | 1 шт. | — | |
|
| 25 | 55413-22H00 | BALANCER,WHEEL (30G) | 1 шт. | — | |
|
