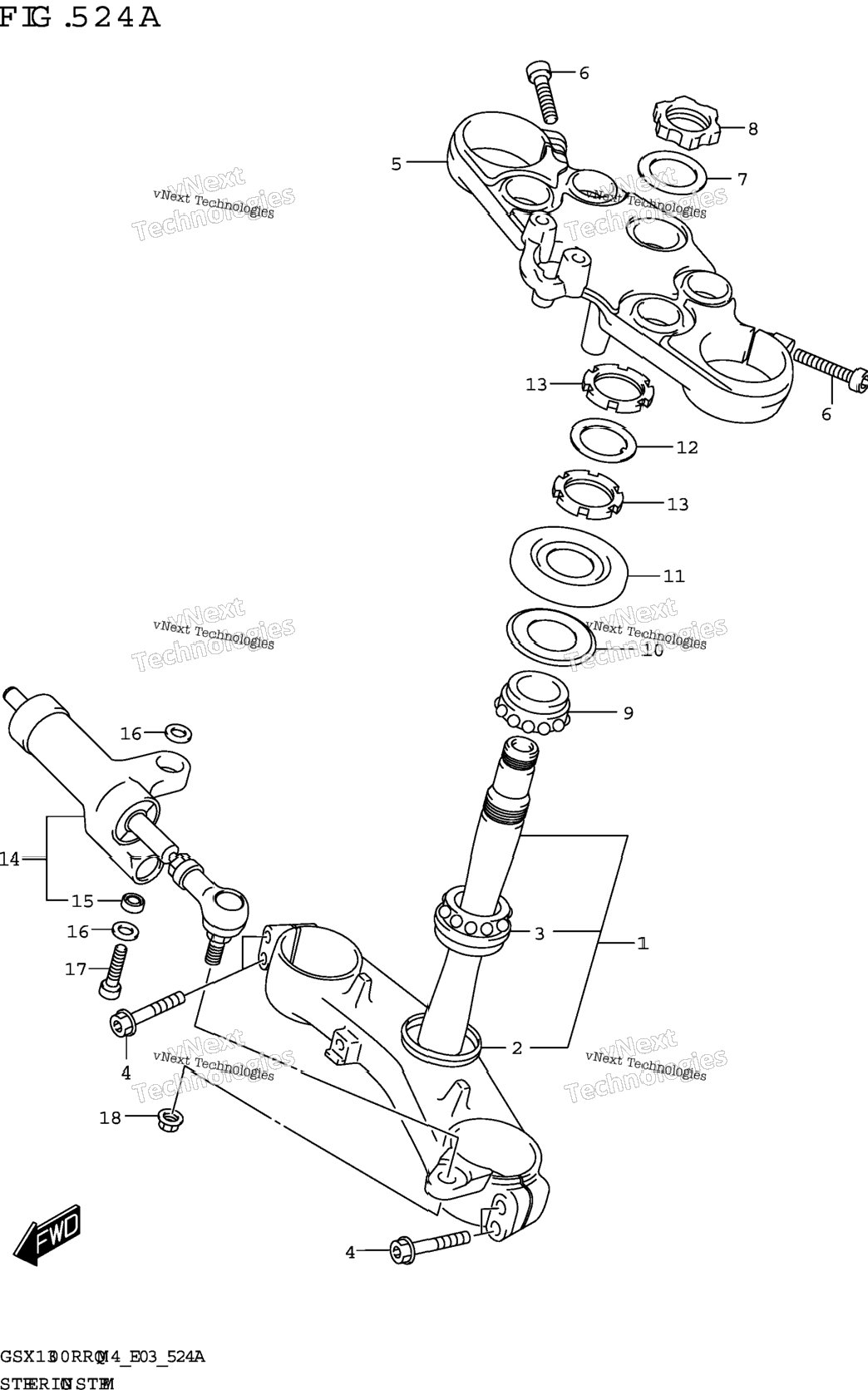

| 1 | 51410-24F50 | BRACKET,FR FORK UNDER | 1 шт. | — | |
|
| 2 | 51644-12C00 | .SEAL,STEERING LOWER (30.1X56 | 1 шт. | — | |
|
| 3 | 09267-30010 | .BEARING (30X55X17) | 1 шт. | — | |
|
| 4 | 51166-01D80 | BOLT,AXLE STOPPER (8X40) | 0 шт. | — | |
|
| 5 | 51311-24F50 | BRACKET,FR FORK UPR | 1 шт. | — | |
|
| 6 | 51328-24F50 | BOLT | 2 шт. | — | |
|
| 7 | 51356-24F50 | WASHER | 1 шт. | — | |
|
| 8 | 51353-06L00 | NUT | 1 шт. | — | |
|
| 9 | 09267-30010 | .BEARING (30X55X17) | 1 шт. | — | |
|
| 10 | 51644-12C00 | .SEAL,STEERING LOWER (30.1X56 | 1 шт. | — | |
|
| 11 | 51643-41G00 | COVER,STEERING UPR | 1 шт. | — | |
|
| 12 | 51641-33E00 | WASHER,STEERING STEM | 1 шт. | — | |
|
| 13 | 51631-33E00 | NUT,STEERING STEM | 2 шт. | — | |
|
| 14 | 51750-15H00 | DAMPER ASSY,STEERING | 1 шт. | — | |
|
| 15 | 09269-08003 | .BEARING (8X17.5X11) | 1 шт. | — | |
|
| 16 | 64339-14101 | SEAL,PILLOW BALL,DUST | 2 шт. | — | |
|
| 17 | 08319-3108A | NUT | 1 шт. | — | |
|
| 18 | 09103-08391 | BOLT (8X35) | 1 шт. | — | |
|
