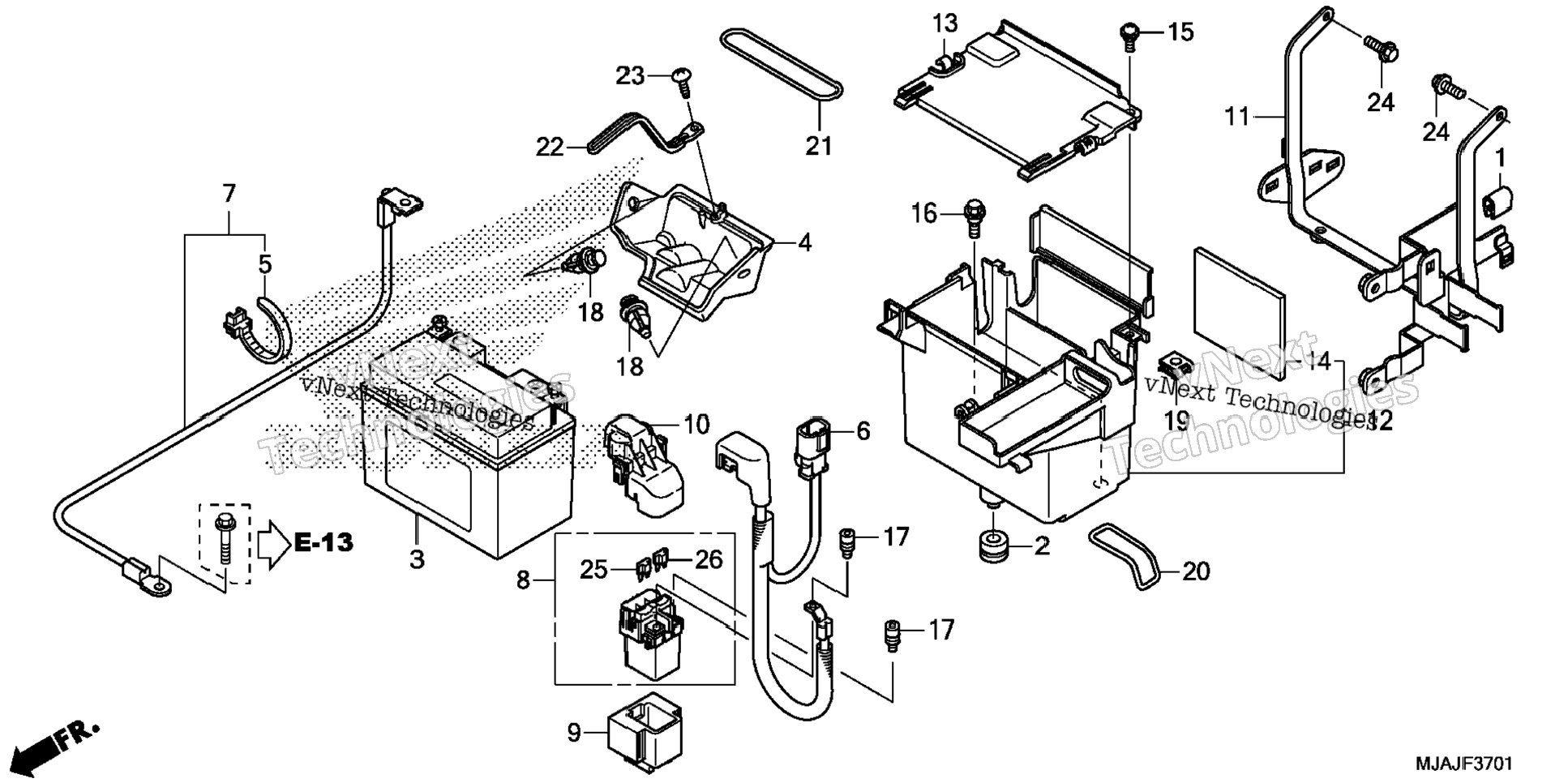

| 1 | 17516-HC4-000 | TRIM, FUEL TANK | 1 шт. | — | |
|
| 2 | 19051-KA4-000 | RUBBER, RADIATOR MOUNTING | 1 шт. | — | |
|
| 3 | 31500-MCR-D03 | BATTERY (YTZ14S) (YUASA) (MSDS) | 1 шт. | — | |
|
| 4 | 32102-MEG-H10 | HOLDER, CONNECTOR | 1 шт. | — | |
|
| 5 | 32161-GFL-J41 | BAND, WIRE HARNESS | 1 шт. | — | |
|
| 6 | 32401-MEG-H11 | CABLE, STARTER BATTERY | 1 шт. | — | |
|
| 7 | 32601-MEG-H10 | CABLE, BATTERY GROUND | 1 шт. | — | |
|
| 8 | 35850-MFL-003 | SWITCH ASSY., STARTER MAGNETIC | 1 шт. | — | |
|
| 9 | 35856-KBG-007 | RUBBER, SHOCK | 1 шт. | — | |
|
| 10 | 35857-MFN-D00 | COVER, MAGNETIC SWITCH | 1 шт. | — | |
|
| 11 | 50322-MEG-H10 | HOLDER, BATTERY BOX | 1 шт. | — | |
|
| 12 | 50325-MEG-H10 | BOX, BATTERY | 1 шт. | — | |
|
| 13 | 50326-MEG-H10 | COVER, BATTERY | 1 шт. | — | |
|
| 14 | 50328-MFE-640 | CUSHION, BATTERY | 1 шт. | — | |
|
| 15 | 90105-MB1-000 | SCREW, SPECIAL (5X12) | 1 шт. | — | |
|
| 16 | 90111-GJ5-000 | BOLT, FLANGE (6MM) | 2 шт. | — | |
|
| 17 | 90111-MR5-000 | BOLT, SOCKET (5X9) | 2 шт. | — | |
|
| 18 | 90657-SB0-003 | CLIP, SPLASH SHIELD | 2 шт. | — | |
|
| 19 | 90677-GR1-003 | NUT, CLIP (5MM) | 1 шт. | — | |
|
| 20 | 91301-MCH-003 | O-RING (48.5X2.5) | 1 шт. | — | |
|
| 21 | 91311-MFE-640 | O-RING (109.4X3.1) | 1 шт. | — | |
|
| 22 | 91413-679-000 | CLIP (2X70) | 1 шт. | — | |
|
| 23 | 93913-14180 | SCREW, TAPPING (4X10) (PO) | 1 шт. | — | |
|
| 24 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 2 шт. | — | |
|
| 25 | 98200-42000 | FUSE, MINI (20A) | 1 шт. | — | |
|
| 26 | 98200-43000 | FUSE, MINI (30A) (Honda Code 5359666) | 1 шт. | — | |
|
