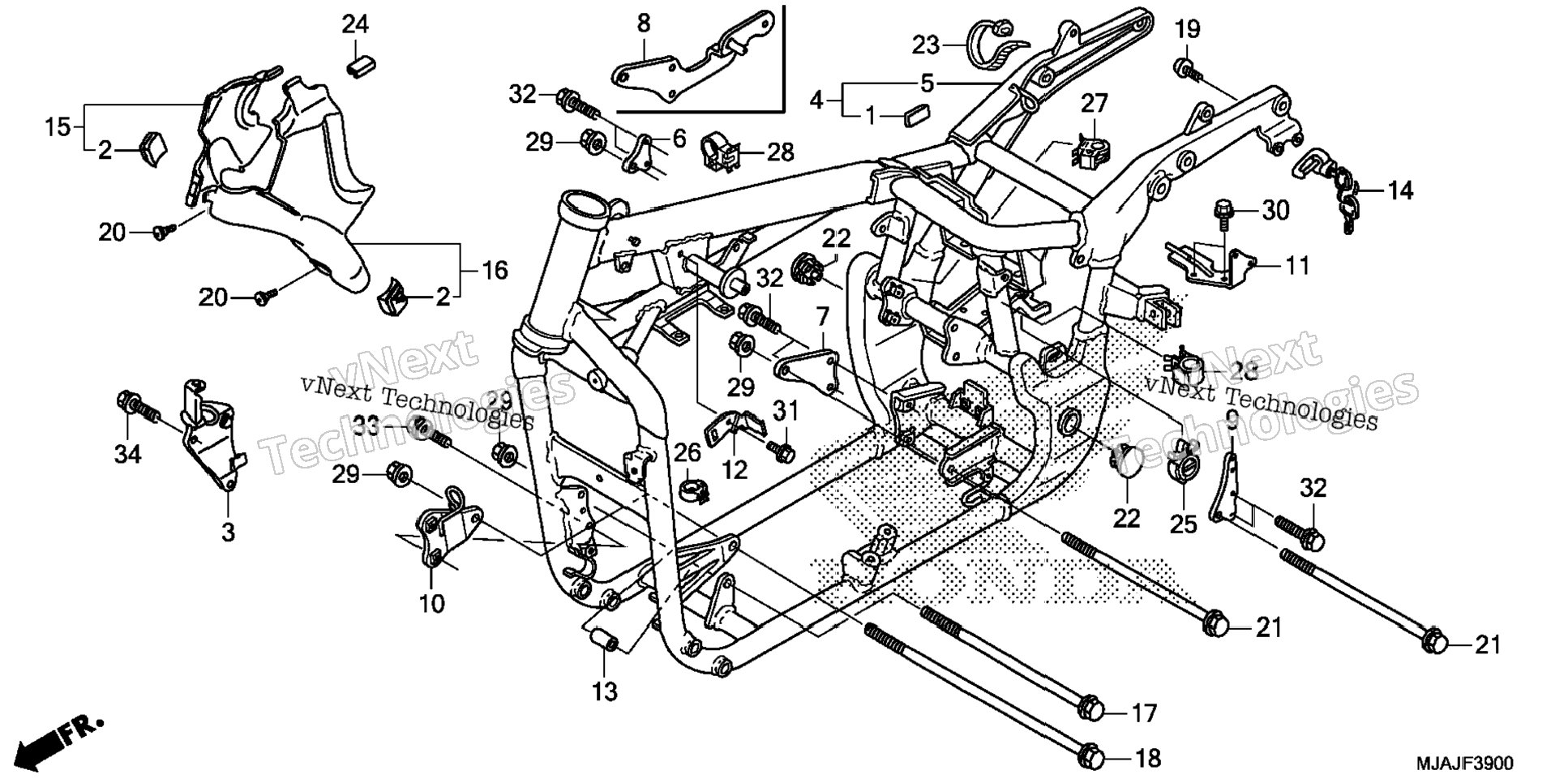

| 1 | 33740-MEG-671 | REFLECTOR, FR. SIDE REFLEX | 2 шт. | — | |
|
| 2 | 46505-MEG-H10 | BRACKET, RR. BRAKE PEDAL | 1 шт. | — | |
|
| 3 | 50100-MEG-H10 | FRAME | 1 шт. | — | |
|
| 4 | 50171-MEG-000 | BRACKET, R. RR. ENGINE HANGER (UPPER) | 1 шт. | — | |
|
| 5 | 50172-MEG-L90 | BRACKET, R. RR. ENGINE HANGER (LOWER) | 1 шт. | — | |
|
| 6 | 50173-MEG-670 | BRACKET, L. RR. ENGINE HANGER (UPPER) | 1 шт. | — | |
|
| 7 | 50176-MFE-671 | PLATE, FR. ENGINE HANGER (UPPER) | 1 шт. | — | |
|
| 8 | 50182-MEG-H10 | STAY, ABS MODULATOR & P.C.V. | 1 шт. | — | |
|
| 9 | 50183-MEG-H10 | STAY, FR. SPEED SENSOR | 1 шт. | — | |
|
| 10 | 50363-KT7-000 | COLLAR, ENGINE HANGER | 1 шт. | — | |
|
| 11 | 50710-GCN-003 | HOLDER ASSY., HELMET (HONDALOCK) | 1 шт. | — | |
|
| 12 | 50710-GCN-305 | HOLDER ASSY., HELMET (COO) | 1 шт. | — | |
|
| 13 | 63550-MEG-A60 | COVER, R. FR. SIDE | 1 шт. | — | |
|
| 14 | 63650-MEG-A60 | COVER, L. FR. SIDE | 1 шт. | — | |
|
| 15 | 90103-GC2-920 | BOLT, ENGINE HANGER | 1 шт. | — | |
|
| 16 | 90104-MBS-000 | BOLT, FLANGE (10X208) | 1 шт. | — | |
|
| 17 | 90106-MAV-000 | SCREW, PAN (6X12) | 1 шт. | — | |
|
| 18 | 90106-MBY-000 | SCREW, SPECIAL (5X12) | 2 шт. | — | |
|
| 19 | 90154-KE7-000 | BOLT, UBS (10X141) | 2 шт. | — | |
|
| 20 | 90312-MB0-700 | CAP, R. LOCK NUT (BOTH SIDES) | 2 шт. | — | |
|
| 21 | 90652-KT1-771 | BAND, WIRE (BLACK) | 1 шт. | — | |
|
| 22 | 90655-MEG-000 | CLAMP, COVER | 1 шт. | — | |
|
| 23 | 90684-ZA0-601 | CLIP, WIRE HARNESS | 1 шт. | — | |
|
| 24 | 90690-GHB-631 | CLIP, CABLE (8MM) | 1 шт. | — | |
|
| 25 | 90690-GHB-631 | CLIP, CABLE (8MM) | 1 шт. | — | |
|
| 26 | 90690-GHB-671 | CLIP, CABLE (25MM) | 2 шт. | — | |
|
| 27 | 90303-428-900 | NUT, FLANGE (10MM) | 4 шт. | — | |
|
| 28 | 94050-10070 | NUT, FLANGE (10MM) | 4 шт. | — | |
|
| 29 | 95701-06010-07 | BOLT, FLANGE (6X10) | 2 шт. | — | |
|
| 30 | 95701-06010-08 | BOLT, FLANGE (6X10) | 1 шт. | — | |
|
| 31 | 95701-08016-07 | BOLT, FLANGE (8X16) | 6 шт. | — | |
|
| 32 | 95701-08020-07 | BOLT, FLANGE (8X20) | 2 шт. | — | |
|
| 33 | 95701-10025-07 | BOLT, FLANGE (10X25) | 1 шт. | — | |
|
