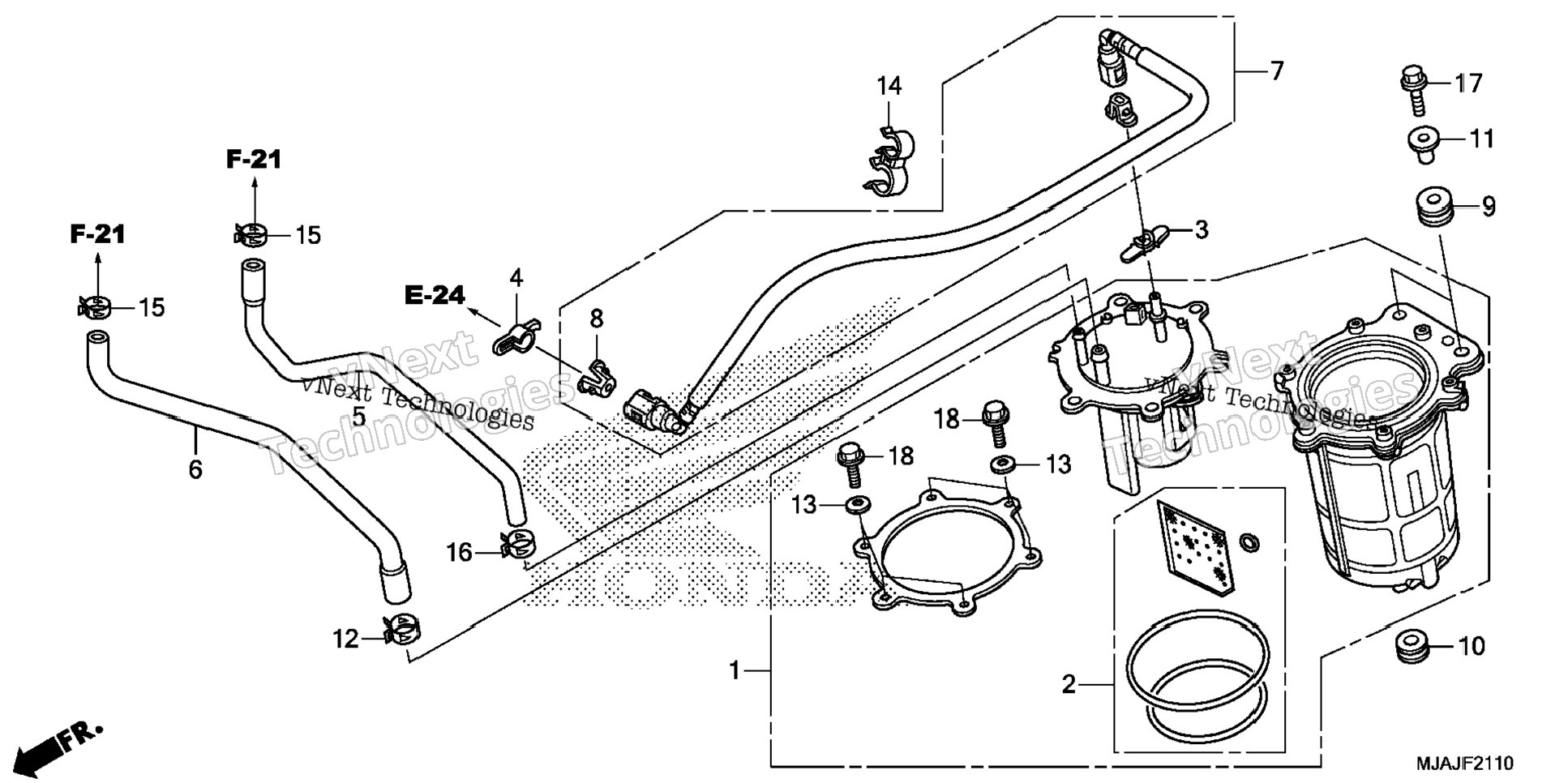

| 1 | 16700-HN8-601 | PUMP ASSY., FUEL (MSDS) | 1 шт. | — | |
|
| 2 | 16706-HR0-F01 | FILTER SET (INSTALL INST, REFER TO TRX500 (HR0) SM (61HR000) PG.7-17) | 1 шт. | — | |
|
| 3 | 16719-HN8-A61 | RUBBER, FUEL JOINT | 1 шт. | — | |
|
| 4 | 16719-MFJ-D00 | DAMPER, CONNECTOR | 1 шт. | — | |
|
| 5 | 16730-MEG-A60 | TUBE, FUEL PUMP BREATHER | 1 шт. | — | |
|
| 6 | 16955-MEG-A60 | TUBE, FUEL | 1 шт. | — | |
|
| 7 | 17526-MEG-A61 | HOSE, FUEL FEED | 1 шт. | — | |
|
| 8 | 17711-S0X-931 | RETAINER (BLUE GREEN) (TOKAI) (Honda Code 5928312) | 1 шт. | — | |
|
| 9 | 18334-KA3-830 | RUBBER, MUFFLER | 2 шт. | — | |
|
| 10 | 19051-KA4-000 | RUBBER, RADIATOR MOUNTING | 1 шт. | — | |
|
| 11 | 19052-MGH-640 | COLLAR, RADIATOR MOUNTING | 2 шт. | — | |
|
| 12 | 43514-445-771 | CLAMP, MASTER CYLINDER OIL HOSE | 1 шт. | — | |
|
| 13 | 90501-HN8-A60 | WASHER, CONICAL SPRING | 6 шт. | — | |
|
| 14 | 90650-MFE-641 | CLAMP, JOINT | 1 шт. | — | |
|
| 15 | 90651-HM3-A71 | CLAMP, TUBE (14.0) | 2 шт. | — | |
|
| 16 | 90651-HN6-A51 | CLAMP, TUBE (12.0) | 1 шт. | — | |
|
| 17 | 95701-06025-00 | BOLT, FLANGE (6X25) | 2 шт. | — | |
|
| 18 | 96001-06014-00 | BOLT, FLANGE (6X14) | 6 шт. | — | |
|
