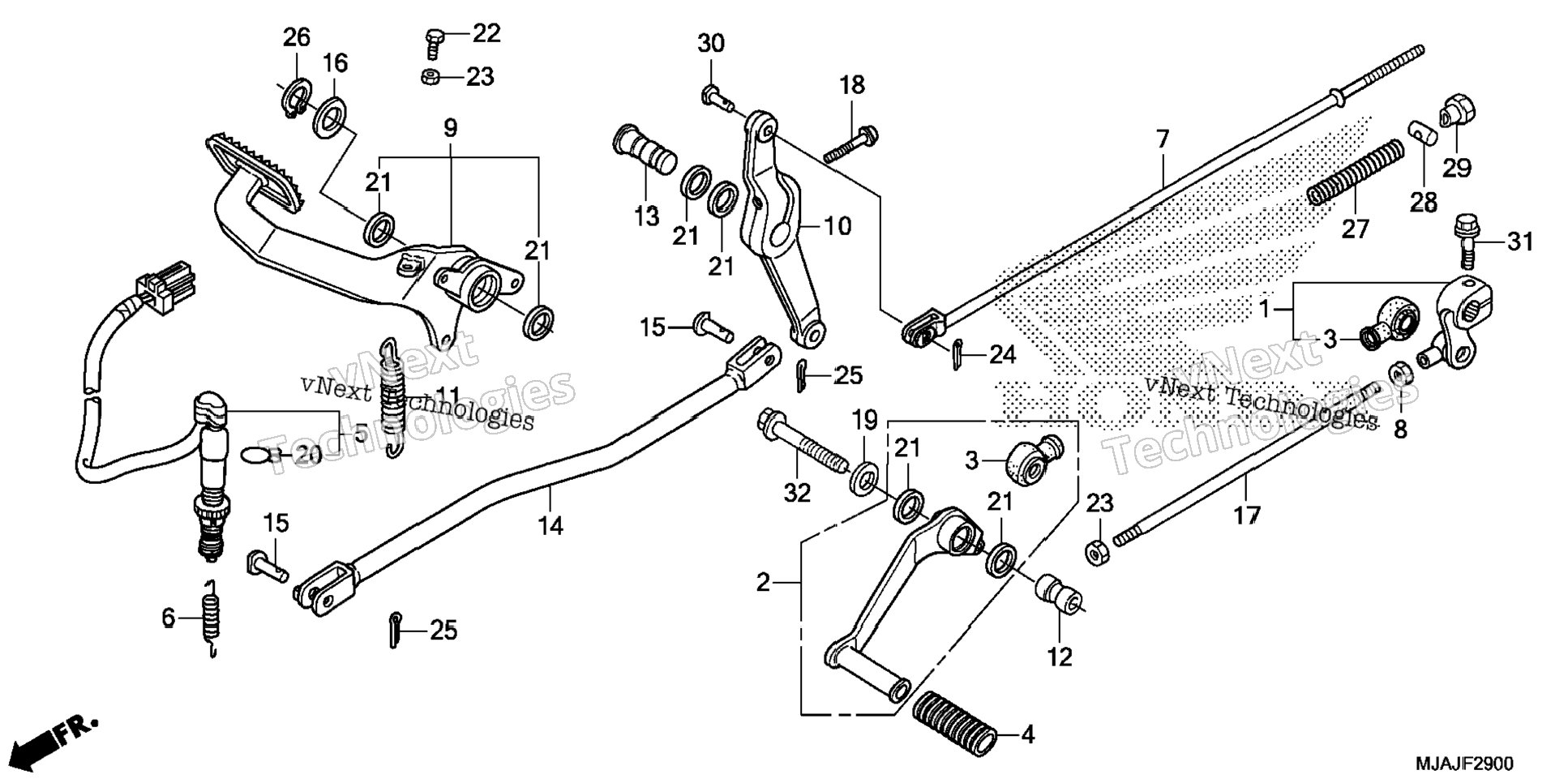

| 1 | 24702-MEG-000 | ARM, GEARSHIFT | 1 шт. | — | |
|
| 2 | 24710-MEG-000 | PEDAL, GEARSHIFT | 1 шт. | — | |
|
| 3 | 24724-MBW-D21 | COVER, DUST | 2 шт. | — | |
|
| 4 | 24781-371-000 | RUBBER, GEARSHIFT PEDAL | 1 шт. | — | |
|
| 5 | 35350-MEG-003 | SWITCH ASSY., RR. STOP | 1 шт. | — | |
|
| 6 | 35357-KR3-670 | SPRING, STOP SWITCH | 1 шт. | — | |
|
| 7 | 45423-KA4-700 | NUT, HEX. (6MM) (LEFT HAND THREAD) | 1 шт. | — | |
|
| 8 | 46500-MEG-H10 | PEDAL ASSY., RR. BRAKE | 1 шт. | — | |
|
| 9 | 46514-KZ9-000 | SPRING, BRAKE PEDAL | 1 шт. | — | |
|
| 10 | 46515-MM8-000 | COLLAR, RR. BRAKE PIVOT | 1 шт. | — | |
|
| 11 | 53312-657-000 | BUSH, WASHER | 1 шт. | — | |
|
| 12 | 90065-MEG-000 | BOLT, TIE ROD | 1 шт. | — | |
|
| 13 | 90521-427-770 | WASHER (10.3MM) | 1 шт. | — | |
|
| 14 | 90601-KAF-003 | CLIP, SWITCH COVER | 1 шт. | — | |
|
| 15 | 91206-968-003 | DUST SEAL (17X23X3) (NOK) | 4 шт. | — | |
|
| 16 | 94002-06000-0S | NUT, HEX. (6MM) | 1 шт. | — | |
|
| 17 | 94511-15000 | CIRCLIP (OUTER) (15MM) | 1 шт. | — | |
|
| 18 | 95701-06020-00 | BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22) | 1 шт. | — | |
|
| 19 | 95801-10050-00 | BOLT, FLANGE (10X50) BOLT, FLANGE (10X60) | 1 шт. | — | |
|
