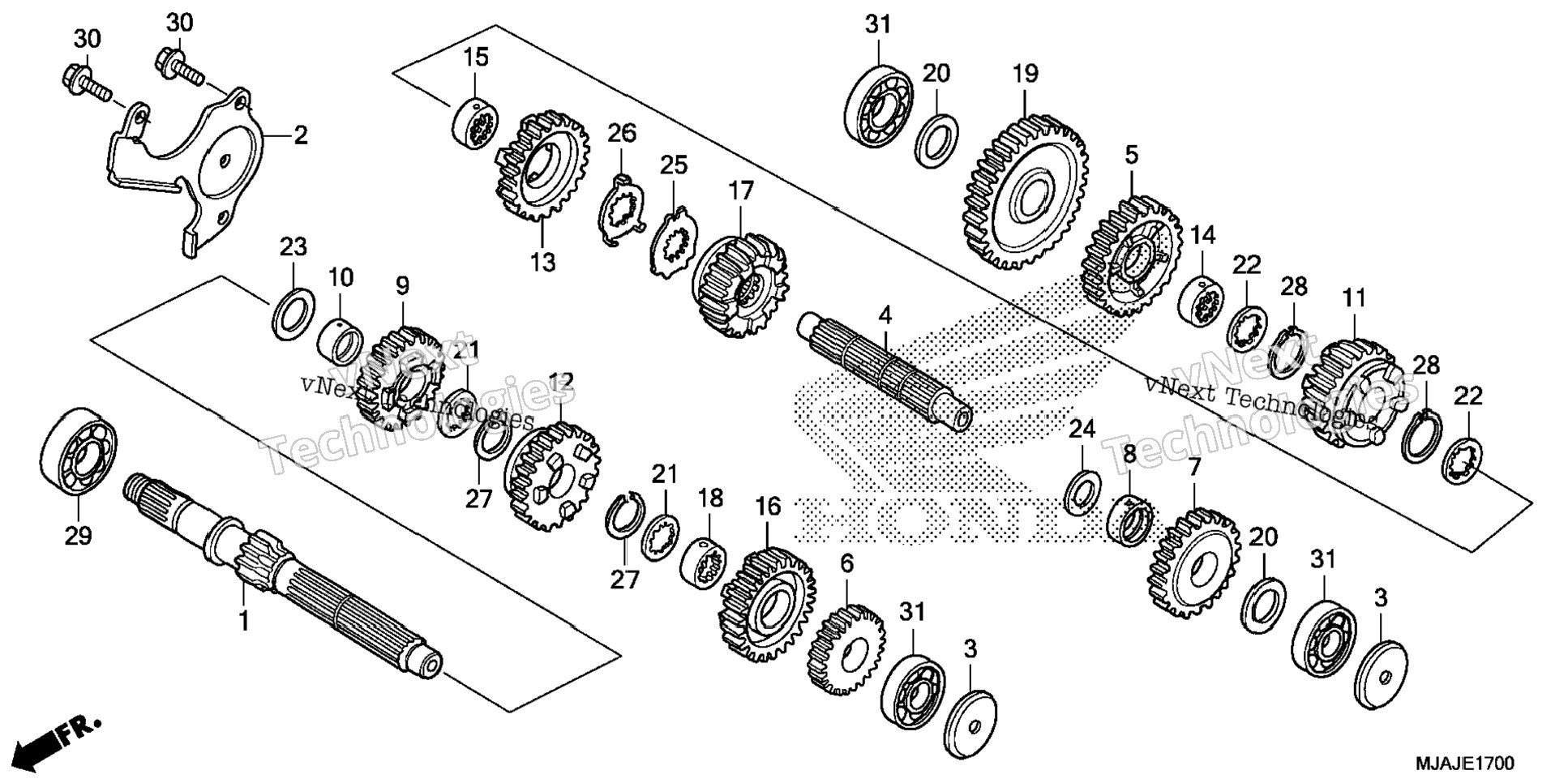

| 1 | 23210-MEG-000 | MAINSHAFT (15T) | 1 шт. | — | |
|
| 2 | 23212-MS6-920 | PLATE, BEARING SETTING | 1 шт. | — | |
|
| 3 | 23219-MF5-000 | PLATE, OIL GUIDE | 2 шт. | — | |
|
| 4 | 23220-MEG-000 | COUNTERSHAFT | 1 шт. | — | |
|
| 5 | 23421-MEG-000 | GEAR, COUNTERSHAFT FIRST (36T) | 1 шт. | — | |
|
| 6 | 23431-MEG-640 | GEAR, MAINSHAFT SECOND (20T) | 1 шт. | — | |
|
| 7 | 23441-MEG-640 | GEAR, COUNTERSHAFT SECOND (31T) | 1 шт. | — | |
|
| 8 | 23442-MEG-000 | BUSH (20X24X10.35) | 1 шт. | — | |
|
| 9 | 23451-MEG-000 | GEAR, MAINSHAFT THIRD (23T) | 1 шт. | — | |
|
| 10 | 23455-MS9-750 | BUSH (25X28X13.5) | 1 шт. | — | |
|
| 11 | 23461-MEG-000 | GEAR, COUNTERSHAFT THIRD (27T) | 1 шт. | — | |
|
| 12 | 23471-MEG-000 | GEAR, MAINSHAFT FOURTH (25T) | 1 шт. | — | |
|
| 13 | 23481-MEG-000 | GEAR, COUNTERSHAFT FOURTH (24T) | 1 шт. | — | |
|
| 14 | 23482-MBL-G00 | COLLAR, SPLINE (28X11.5) | 1 шт. | — | |
|
| 15 | 23482-MR7-000 | COLLAR, SPLINE (28X13.5) | 1 шт. | — | |
|
| 16 | 23491-MEG-000 | GEAR, MAINSHAFT FIFTH (27T) | 1 шт. | — | |
|
| 17 | 23501-MEG-000 | GEAR, COUNTERSHAFT FIFTH (23T) | 1 шт. | — | |
|
| 18 | 23512-MR7-000 | COLLAR, SPLINE (25X16) | 1 шт. | — | |
|
| 19 | 23725-MBL-G00 | GEAR, FINAL DRIVE (39T) | 1 шт. | — | |
|
| 20 | 90451-704-000 | WASHER A, THRUST (20MM) | 2 шт. | — | |
|
| 21 | 90451-KY2-000 | WASHER, SPLINE (25X31X1.5) | 2 шт. | — | |
|
| 22 | 90452-MR7-000 | WASHER, SPLINE (28X34X1.5) | 2 шт. | — | |
|
| 23 | 90456-MA6-000 | WASHER, THRUST (25MM) | 1 шт. | — | |
|
| 24 | 90456-MB0-770 | WASHER, THRUST (20X0.90) | 1 шт. | — | |
|
| 25 | 90463-MCJ-000 | WASHER, SPLINE (28MM) | 1 шт. | — | |
|
| 26 | 90464-MCJ-000 | WASHER, LOCK (28MM) | 1 шт. | — | |
|
| 27 | 90601-107-000 | CIRCLIP (25MM) | 2 шт. | — | |
|
| 28 | 90603-MN4-000 | CIRCLIP (28MM) | 2 шт. | — | |
|
| 29 | 91001-MN8-911 | BEARING, RADIAL BALL (63/22) (FUJIKOSHI) | 1 шт. | — | |
|
| 30 | 91002-KY4-901 | BEARING, RADIAL BALL (63/22) | 1 шт. | — | |
|
| 31 | 95701-06016-00 | BOLT, FLANGE (6X16) (Honda Code 2410892) | 3 шт. | — | |
|
| 32 | 96100-62040-00 | BEARING, RADIAL BALL (6204) | 3 шт. | — | |
|
