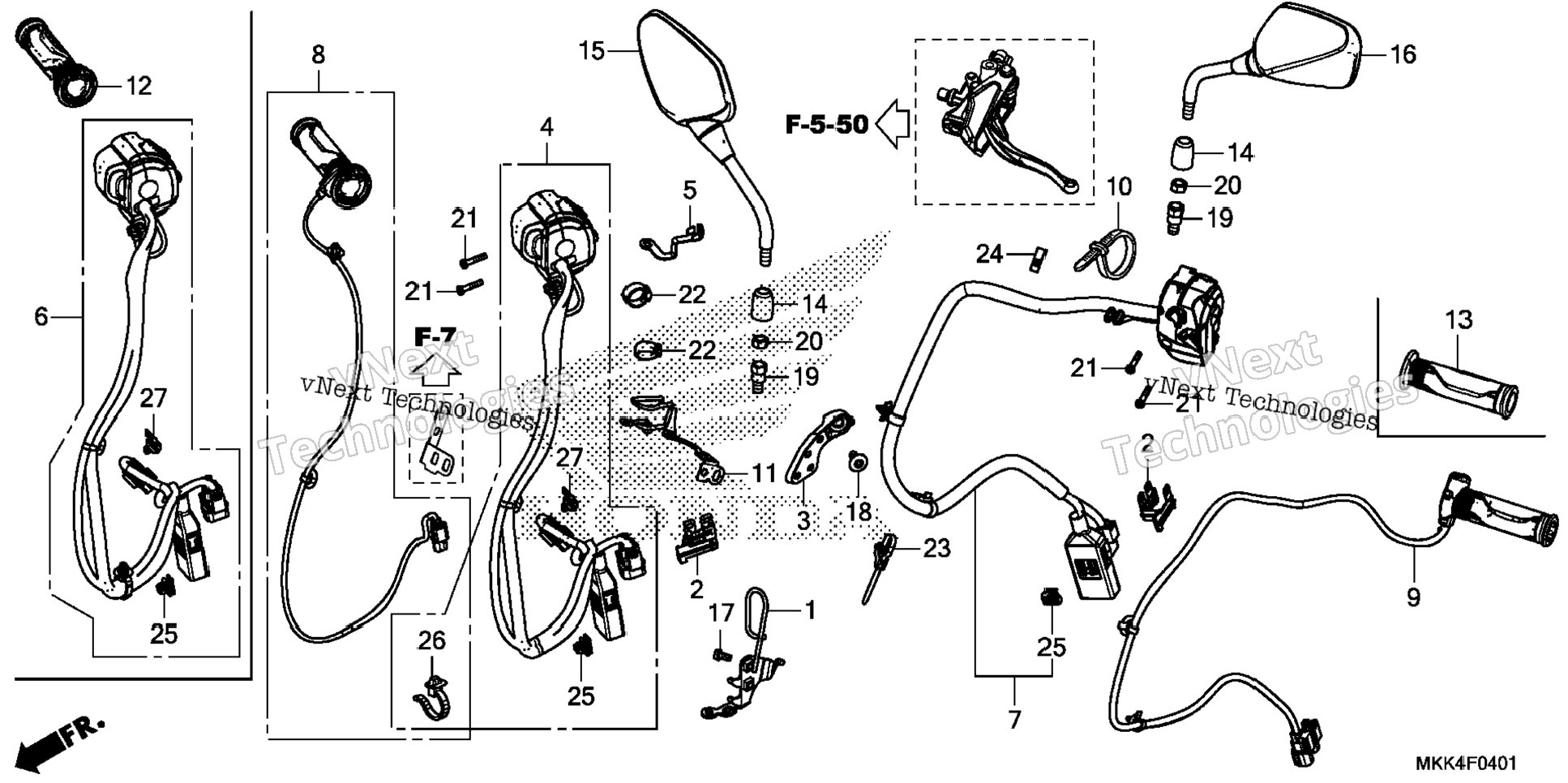

| 1 | 17925-MJP-G50 | GUIDE, THROTTLE CABLE | 1 шт. | — | |
|
| 2 | 32121-MKK-D00 | HOLDER, CONNECTOR | 2 шт. | — | |
|
| 3 | 32151-MKK-D00 | STAY, CLIP | 1 шт. | — | |
|
| 4 | 35135-MKK-A51 | SWITCH UNIT, ENGINE STOP & D-N MODE & GRIP APS | 1 шт. | — | |
|
| 5 | 35135-MKK-A52 | SWITCH UNIT, ENGINE STOP & D-N MODE & GRIP APS | 1 шт. | — | |
|
| 6 | 35135-MKK-A53 | SW UNIT | 1 шт. | — | |
|
| 7 | 35200-MKK-A51 | SWITCH ASSY., TURN SIGNAL & HAND SHIFT | 1 шт. | — | |
|
| 8 | 35200-MKK-A52 | SWITCH ASSY | 1 шт. | — | |
|
| 9 | 53111-MKK-D00 | CLAMP, CABLE | 1 шт. | — | |
|
| 10 | 53140-MKK-D01 | GRIP ASSY., THROTTLE | 1 шт. | — | |
|
| 11 | 53166-MGE-000 | GRIP, L. HANDLE | 1 шт. | — | |
|
| 12 | 88130-MFG-D00 | COVER, LOCK NUT | 2 шт. | — | |
|
| 13 | 88210-MJP-G80 | MIRROR, R. BACK | 1 шт. | — | |
|
| 14 | 88220-MGS-D30 | MIRROR, L. BACK | 1 шт. | — | |
|
| 15 | 90021-GHB-620 | BOLT, FLANGE (6X12) | 1 шт. | — | |
|
| 16 | 90114-MGE-D00 | BOLT, SPECIAL (6X15) | 1 шт. | — | |
|
| 17 | 90130-MGS-D31 | BOLT, ADAPTER (10MM) | 2 шт. | — | |
|
| 18 | 90310-MGS-D31 | NUT, HEX. (10MM) (LEFT HAND THREAD) | 2 шт. | — | |
|
| 19 | 90508-MGE-D00 | SCREW-WASHER (5X25) | 4 шт. | — | |
|
| 20 | 90683-KJ2-003 | CLIP, WIRE HARNESS | 2 шт. | — | |
|
| 21 | 90690-GHB-611 | CLIP, HARNESS BAND (25MM) | 1 шт. | — | |
|
| 22 | 90690-MEF-800 | CLAMP, HARNESS | 1 шт. | — | |
|
| 23 | 91533-SDA-003 | CLIP, CONNECTOR (BEIGE) | 2 шт. | — | |
|
| 24 | 91565-SEL-003 | CLIP, CONNECTOR (BLACK) (Honda Code 7386865) | 1 шт. | — | |
|
