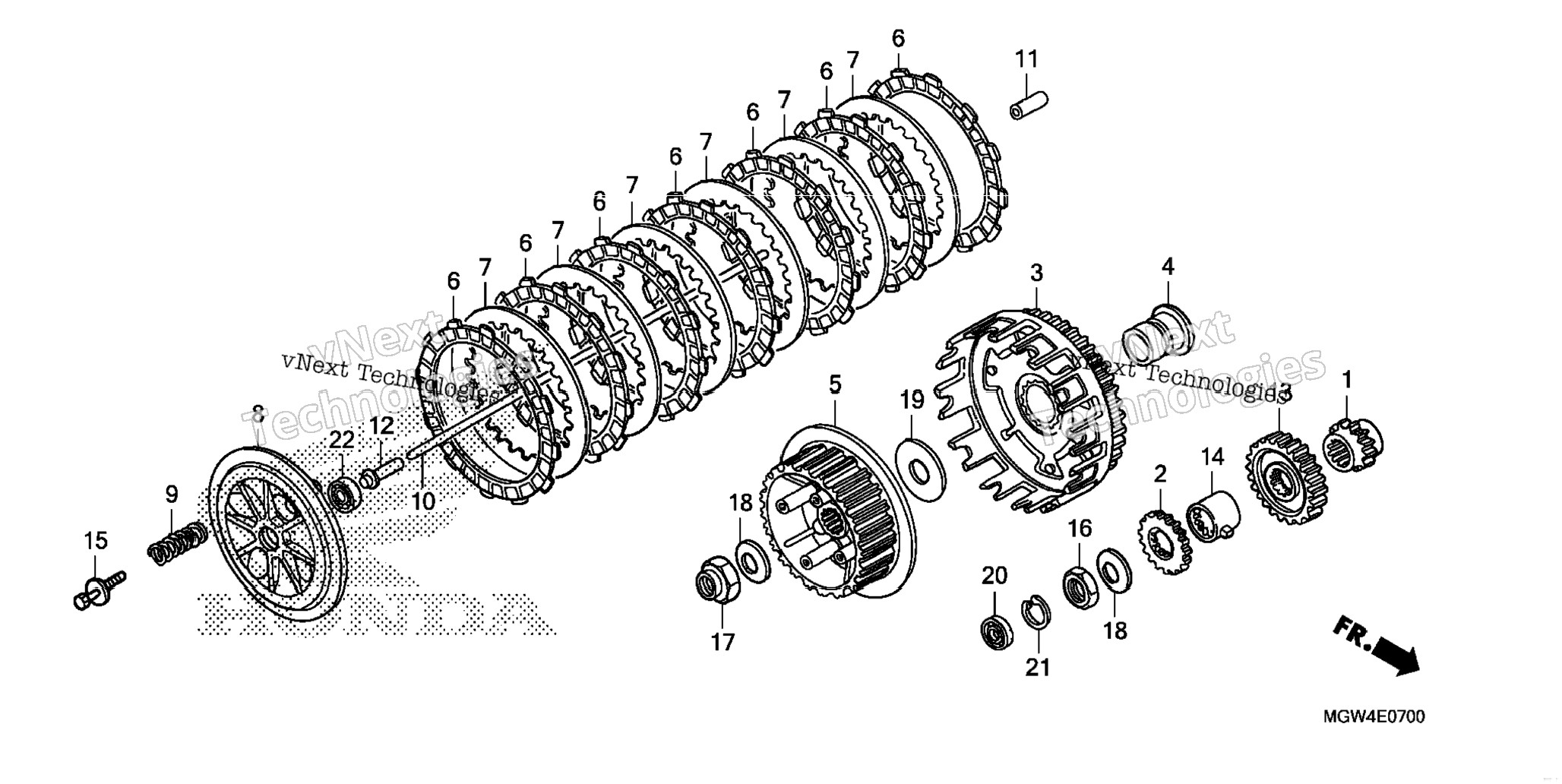

| 1 | 14312-MN1-670 | SPROCKET, TIMING (19T) | 1 шт. | — | |
|
| 2 | 15130-MN1-670 | GEAR, PUMP DRIVE (28T) | 1 шт. | — | |
|
| 3 | 22100-MN9-000 | CLUTCH OUTER | 1 шт. | — | |
|
| 4 | 22116-MN1-670 | GUIDE, CLUTCH (OUTER) | 1 шт. | — | |
|
| 5 | 22120-KN8-000 | CENTER, CLUTCH (28T) | 1 шт. | — | |
|
| 6 | 22201-MY6-670 | DISK, CLUTCH FRICTION | 7 шт. | — | |
|
| 7 | 22321-MG3-000 | PLATE, CLUTCH | 6 шт. | — | |
|
| 8 | 22350-MG3-000 | PLATE, CLUTCH PRESSURE | 1 шт. | — | |
|
| 9 | 22401-MK2-003 | SPRING, CLUTCH | 4 шт. | — | |
|
| 10 | 22850-MG3-000 | ROD, CLUTCH LIFTER | 1 шт. | — | |
|
| 11 | 22852-MK5-000 | PIECE, CLUTCH LIFTER ROD | 1 шт. | — | |
|
| 12 | 22853-KN8-000 | LIFTER, CLUTCH | 1 шт. | — | |
|
| 13 | 23121-MN9-000 | GEAR, PRIMARY DRIVE (34T) | 1 шт. | — | |
|
| 14 | 30220-MK5-000 | BOSS, PULSER | 1 шт. | — | |
|
| 15 | 90022-MM5-000 | BOLT-WASHER (6X25) | 4 шт. | — | |
|
| 16 | 90235-MN1-670 | NUT (18MM) | 1 шт. | — | |
|
| 17 | 90236-HA0-000 | NUT, LOCK (18MM) | 1 шт. | — | |
|
| 18 | 90432-428-000 | WASHER, LOCK | 2 шт. | — | |
|
| 19 | 90452-471-000 | WASHER, THRUST (22MM) | 1 шт. | — | |
|
| 20 | 91201-HM3-A61 | OIL SEAL (14X22X5) (ARAI) | 1 шт. | — | |
|
| 21 | 94520-24000 | CIRCLIP (INNER) (24MM) | 1 шт. | — | |
|
| 22 | 96100-60010-00 | BEARING, RADIAL BALL (6001) | 1 шт. | — | |
|
