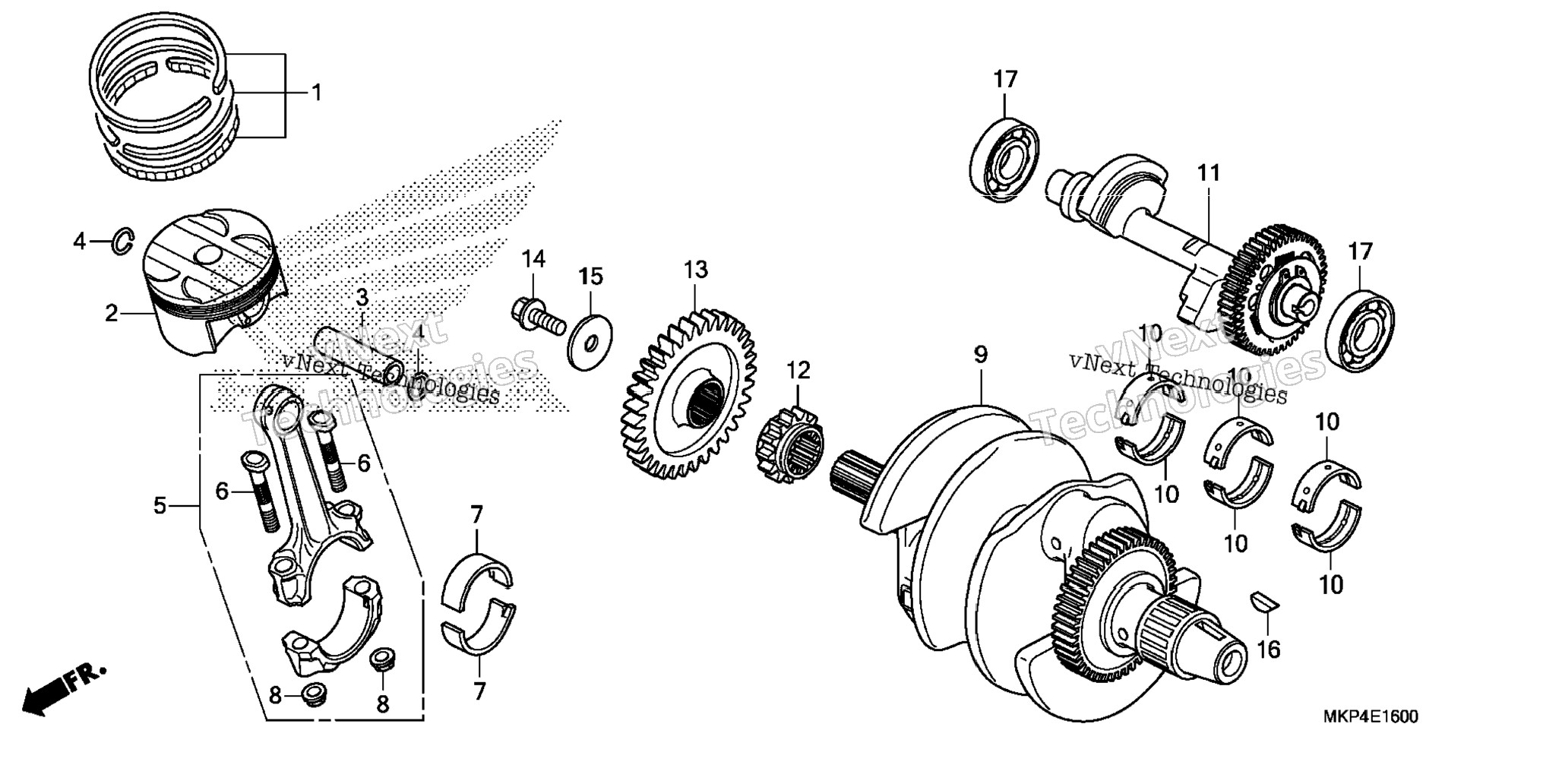

| 1 | 13021-MEE-305 | RING SET, PISTON (0.25) (Optional). | 2 шт. | — | |
|
| 1 | 13011-MEE-305 | RING SET, PISTON (STD) | 2 шт. | — | |
|
| 2 | 13102-MGZ-305 | PISTON (0.25) (Optional). | 0 шт. | — | |
|
| 2 | 13101-MGZ-D00 | PISTON (STD) | 2 шт. | — | |
|
| 3 | 13111-MFG-D00 | PIN, PISTON | 2 шт. | — | |
|
| 4 | 13115-MGZ-J00 | CLIP, PISTON PIN (16MM) | 4 шт. | — | |
|
| 5 | 13210-MGZ-D00 | ROD ASSY., CONNECTING | 2 шт. | — | |
|
| 6 | 13213-ML7-020 | BOLT, CONNECTING ROD | 4 шт. | — | |
|
| 7 | 13214-MGZ-J01 | BEARING A, CONNECTING ROD (BLUE) | 4 шт. | — | |
|
| 7 | 13215-MGZ-J01 | BEARING B, CONNECTING ROD (BLACK) | 4 шт. | — | |
|
| 7 | 13216-MGZ-J01 | BEARING C, CONNECTING ROD (BROWN) | 4 шт. | — | |
|
| 7 | 13217-MGZ-J01 | BEARING D, CONNECTING ROD (GREEN) | 4 шт. | — | |
|
| 7 | 13218-MGZ-J01 | BEARING E, CONNECTING ROD (YELLOW) | 4 шт. | — | |
|
| 8 | 13215-ML7-000 | NUT, CONNECTING ROD | 4 шт. | — | |
|
| 9 | 13300-MGZ-D01 | CRANKSHAFT | 1 шт. | — | |
|
| 10 | 13313-MW0-003 | BEARING A, CRANKSHAFT (BLACK) | 6 шт. | — | |
|
| 10 | 13314-MW0-003 | BEARING B, CRANKSHAFT (BROWN) | 6 шт. | — | |
|
| 10 | 13315-MW0-003 | BEARING C, CRANKSHAFT (GREEN) | 6 шт. | — | |
|
| 10 | 13316-MW0-003 | BEARING D, CRANKSHAFT (YELLOW) | 6 шт. | — | |
|
| 10 | 13317-MW0-003 | BEARING E, CRANKSHAFT (PINK) | 6 шт. | — | |
|
| 11 | 13420-MKG-A00 | SHAFT, BALANCER (40T) | 1 шт. | — | |
|
| 12 | 14311-MGZ-J00 | SPROCKET, TIMING (17T) | 1 шт. | — | |
|
| 13 | 23113-MKG-A00 | GEAR, PRIMARY DRIVE (34T) | 1 шт. | — | |
|
| 14 | 90013-MGZ-J00 | BOLT, SPECIAL (10X25) | 1 шт. | — | |
|
| 15 | 90405-MGZ-J00 | WASHER (10.5X40) | 1 шт. | — | |
|
| 16 | 90742-KYJ-900 | KEY, WOODRUFF (25X18) | 1 шт. | — | |
|
| 17 | 91001-MGZ-J00 | BEARING, SPECIAL RADIAL BALL (6204) | 2 шт. | — | |
|
