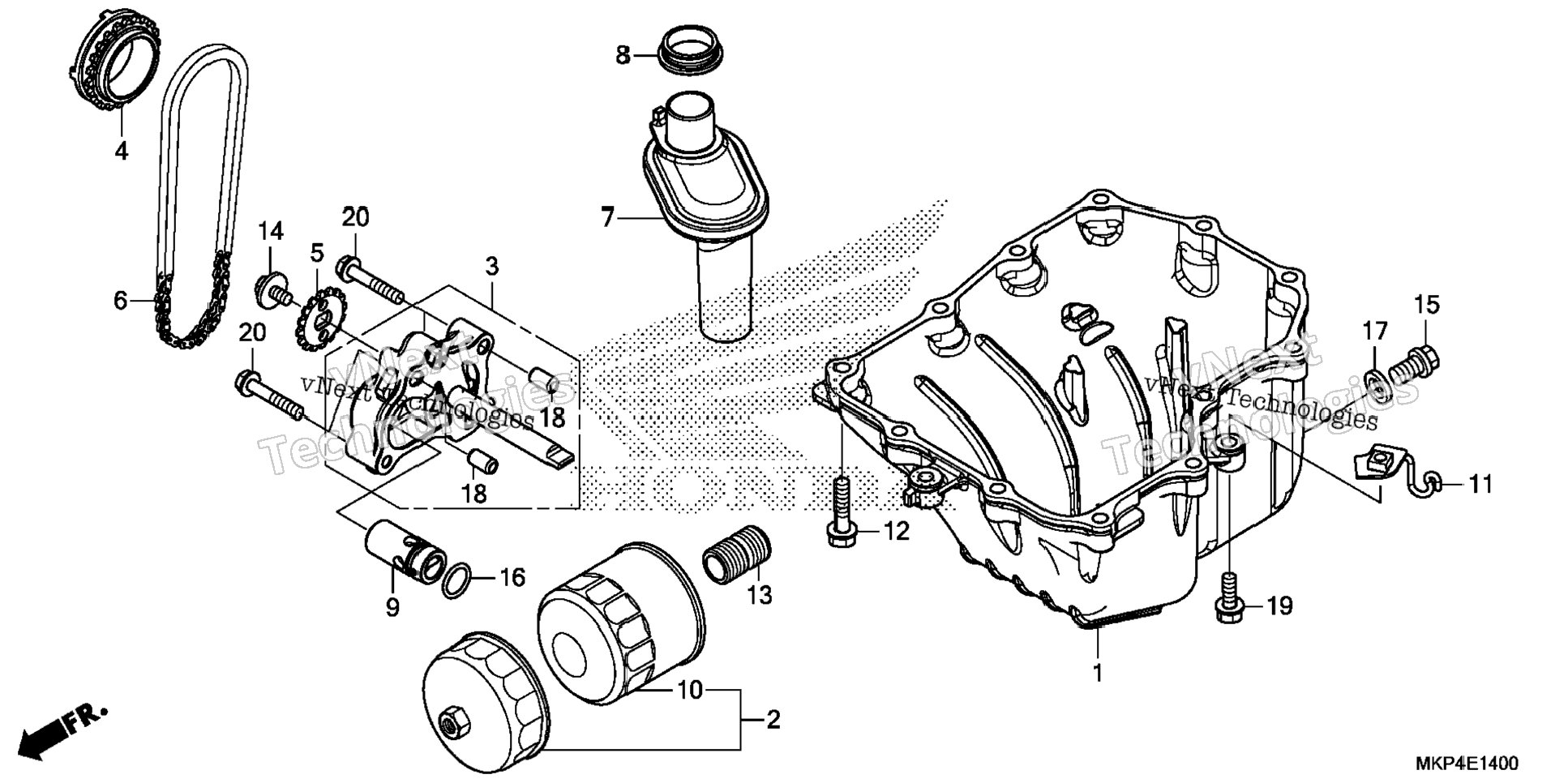

| 1 | 11210-MJW-J80 | PAN, OIL | 1 шт. | — | |
|
| 2 | 15010-MCE-H51 | FILTER SET, OIL (Honda Code 8624900) (Optional). | 1 шт. | — | |
|
| 2 | 15010-MKR-305 | FILTER SET, OIL (Optional). | 1 шт. | — | |
|
| 3 | 15100-MGZ-J00 | PUMP ASSY., OIL | 1 шт. | — | |
|
| 4 | 15131-MKP-D01 | SPROCKET, OIL PUMP DRIVE (22T) | 1 шт. | — | |
|
| 5 | 15134-MGZ-J00 | SPROCKET, OIL PUMP DRIVEN (16T) | 1 шт. | — | |
|
| 6 | 15141-MKP-D01 | CHAIN, OIL PUMP (DID 25HT2-56LE) | 1 шт. | — | |
|
| 7 | 15150-MGZ-J00 | STRAINER, OIL | 1 шт. | — | |
|
| 8 | 15154-MAT-000 | GASKET, OIL STRAINER | 1 шт. | — | |
|
| 9 | 15220-MGZ-J00 | VALVE ASSY., RELIEF | 1 шт. | — | |
|
| 10 | 15410-MFJ-D01 | FILTER, OIL (TOYO ROKI) (Honda Code 8597650) | 1 шт. | — | |
|
| 10 | 15410-MFJ-D02 | FILTER, OIL (WAKO FILTER) | 1 шт. | — | |
|
| 11 | 17419-MJW-J40 | STAY, HOSE CLAMP | 1 шт. | — | |
|
| 12 | 90010-MGZ-J00 | BOLT, FLANGE (6X28) | 12 шт. | — | |
|
| 13 | 90019-MGZ-J00 | BOSS, OIL FILTER | 1 шт. | — | |
|
| 14 | 90021-MGZ-J00 | BOLT-WASHER (6X12) | 1 шт. | — | |
|
| 15 | 90131-896-650 | BOLT, DRAIN PLUG (12X15) | 1 шт. | — | |
|
| 15 | 90131-883-000 | BOLT, DRAIN PLUG (12X15) | 1 шт. | — | |
|
| 16 | 91313-MB0-003 | O-RING (14.7X2.2) (ARAI) (Honda Code 1260868) | 1 шт. | — | |
|
| 16 | 91313-MG7-004 | O-RING (14.8X2.2) (Honda Code 3353620) | 1 шт. | — | |
|
| 17 | 94109-12000 | WASHER, DRAIN PLUG (12MM) | 1 шт. | — | |
|
| 18 | 94301-08140 | PIN, DOWEL (8X14) (Honda Code 0069310) | 2 шт. | — | |
|
| 19 | 90101-MJW-J40 | BOLT, FLANGE (6X20) | 1 шт. | — | |
|
| 20 | 95701-06035-00 | BOLT, FLANGE (6X35) | 4 шт. | — | |
|
