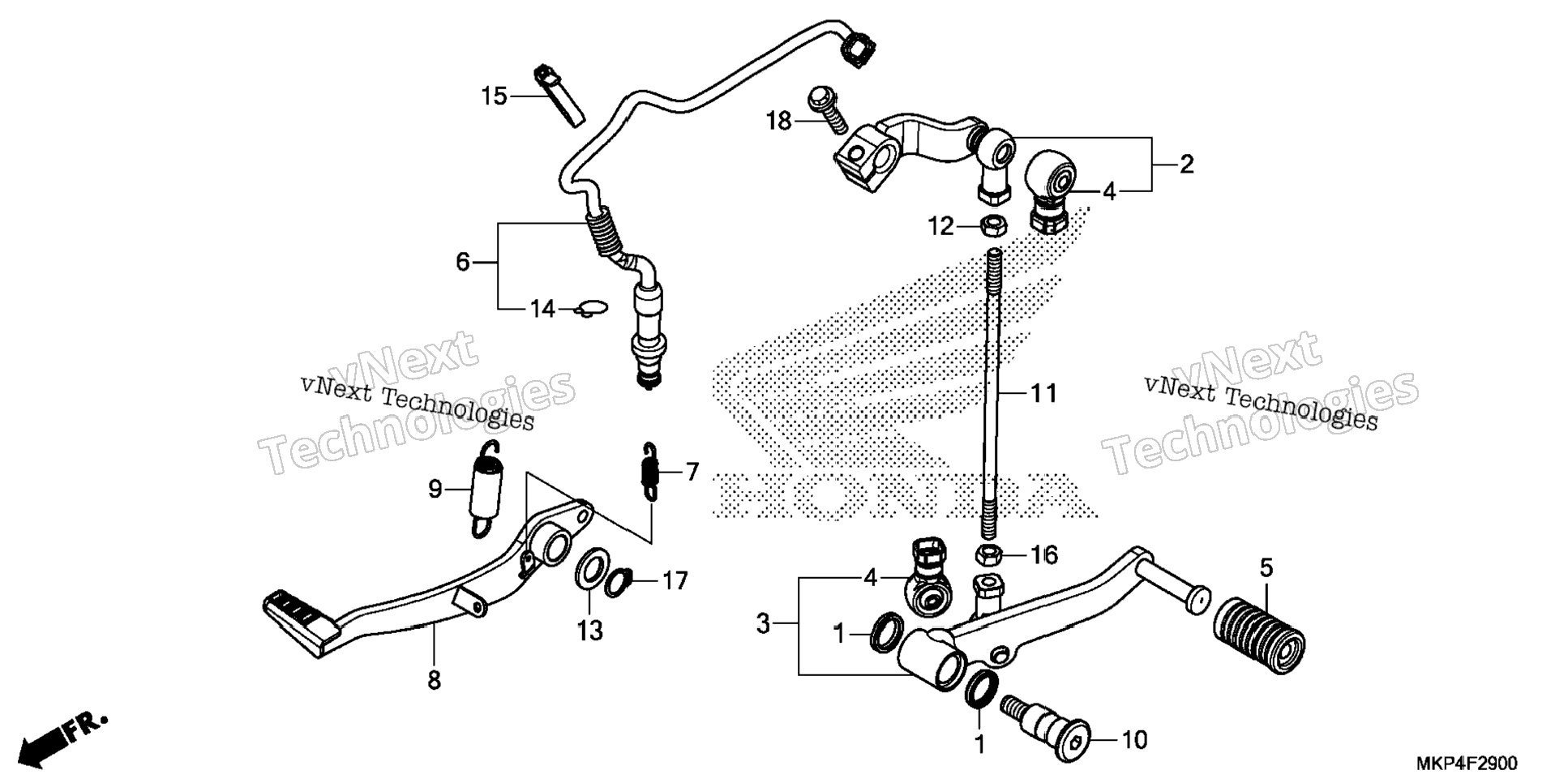

| 1 | 24706-MK3-770 | RUBBER, DUST SEAL | 2 шт. | — | |
|
| 2 | 24710-MGZ-J00 | ARM, GEARSHIFT | 1 шт. | — | |
|
| 3 | 24710-MGZ-305 | ARM, GEARSHIFT (COO) | 1 шт. | — | |
|
| 4 | 24720-MGZ-J00 | PEDAL, GEARSHIFT | 1 шт. | — | |
|
| 5 | 24720-MGZ-305 | PEDAL, GEARSHIFT (COO) | 1 шт. | — | |
|
| 6 | 24724-MBW-D21 | COVER, DUST | 2 шт. | — | |
|
| 7 | 24781-KR3-770 | RUBBER, GEARSHIFT PEDAL | 1 шт. | — | |
|
| 8 | 35350-MKP-J01 | SWITCH ASSY., RR. STOP | 1 шт. | — | |
|
| 9 | 35357-HP0-A00 | SPRING, STOP SWITCH | 1 шт. | — | |
|
| 10 | 46500-KYJ-305 | PEDAL, RR. BRAKE (COO) | 1 шт. | — | |
|
| 11 | 46500-KYJ-900 | PEDAL, RR. BRAKE | 1 шт. | — | |
|
| 12 | 46513-KYJ-900 | SPRING ASSY., BRAKE PEDAL | 1 шт. | — | |
|
| 13 | 90113-MGZ-J00 | BOLT, CHANGE PIVOT | 1 шт. | — | |
|
| 14 | 90165-MGZ-J00 | BOLT, TIE ROD | 1 шт. | — | |
|
| 15 | 90301-MGZ-J00 | NUT, SPECIAL (6MM) (LEFT HAND THREAD) | 1 шт. | — | |
|
| 16 | 90557-230-000 | WASHER (15.2X25) | 1 шт. | — | |
|
| 17 | 90601-KAF-003 | CLIP, SWITCH COVER | 1 шт. | — | |
|
| 18 | 90651-KV6-003 | BAND, WIRE (165MM) (BLACK) | 1 шт. | — | |
|
| 19 | 94001-06070-0S | NUT, HEX. (6MM) | 1 шт. | — | |
|
| 20 | 94511-15000 | CIRCLIP (OUTER) (15MM) | 1 шт. | — | |
|
| 21 | 95701-06020-07 | BOLT, FLANGE (6X20) | 1 шт. | — | |
|
