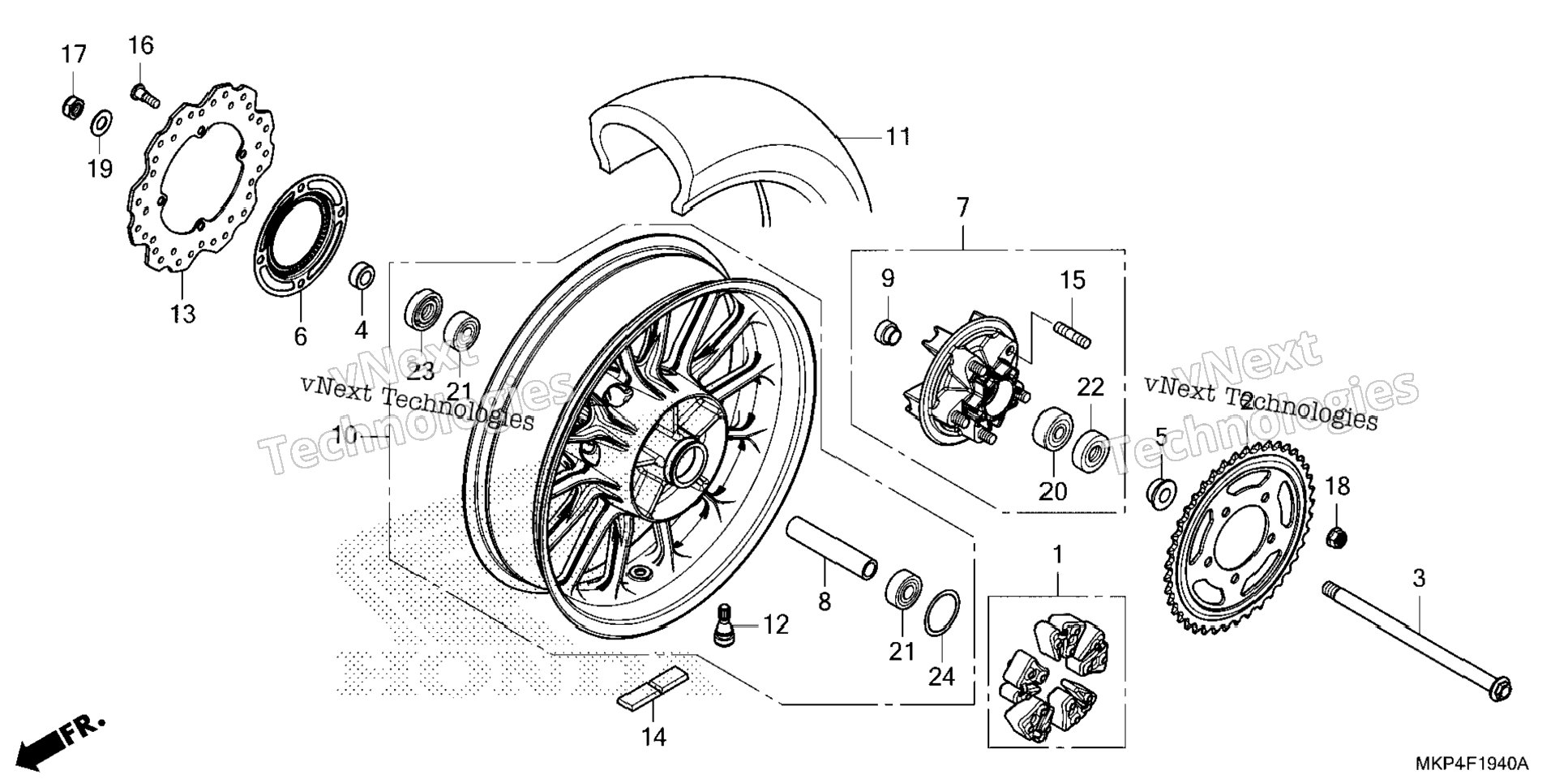

| 1 | 06410-MGS-D30 | DAMPER SET, WHEEL | 1 шт. | — | |
|
| 2 | 41201-MKP-J80 | SPROCKET, FINAL DRIVEN (41T) | 1 шт. | — | |
|
| 3 | 42301-MKP-J00 | AXLE, RR. WHEEL | 1 шт. | — | |
|
| 4 | 42312-MGZ-J00 | COLLAR, RR. BRAKE SIDE | 1 шт. | — | |
|
| 5 | 42313-MKP-J80 | COLLAR, L. RR. WHEEL SIDE | 1 шт. | — | |
|
| 6 | 42615-K87-A00 | FLANGE SUB-ASSY., RR. FINAL DRIVEN | 1 шт. | — | |
|
| 7 | 42620-MKP-J80 | COLLAR, RR. AXLE DISTANCE | 1 шт. | — | |
|
| 8 | 42625-K87-A00 | COLLAR B, RR. AXLE DISTANCE | 1 шт. | — | |
|
| 9 | 42650-MKP-J90 | WHEEL SUB-ASSY., RR. | 0 шт. | — | |
|
| 10 | 42711-MKP-J81 | TIRE, RR. (160/60R17 M/C 69H) (DUNLOP) | 1 шт. | — | |
|
| 11 | 42753-GM9-743 | VALVE, RIM (IRC) | 1 шт. | — | |
|
| 12 | 43251-MGZ-J02 | DISK, RR. BRAKE (SUNSTAR) | 1 шт. | — | |
|
| 13 | 44721-MGH-H21 | WEIGHT, BALANCE (10G) | 1 шт. | — | |
|
| 14 | 44722-MGH-H21 | WEIGHT, BALANCE (15G) | 1 шт. | — | |
|
| 15 | 44723-MGH-H21 | WEIGHT, BALANCE (20G) | 1 шт. | — | |
|
| 16 | 90102-MAS-000 | BOLT 2, STUD (12X25) | 5 шт. | — | |
|
| 17 | 90105-KGH-900 | BOLT, BRAKE DISK (8X24) | 4 шт. | — | |
|
| 18 | 90305-GW2-711 | NUT, U (16MM) | 1 шт. | — | |
|
| 19 | 90306-KGH-901 | NUT, U (12MM) (FUJI SEIMITSU) | 5 шт. | — | |
|
| 20 | 90501-K87-A00 | WASHER, PLAIN (16.4X32X2) | 1 шт. | — | |
|
| 21 | 91053-MGS-D31 | BEARING, RADIAL BALL (6204UU) | 1 шт. | — | |
|
| 22 | 91054-MT6-831 | BEARING, RADIAL BALL (6303UU) (NSK) | 2 шт. | — | |
|
| 23 | 91253-443-761 | DUST SEAL (30X47X8) (ARAI) | 1 шт. | — | |
|
| 24 | 91253-443-762 | DUST SEAL (30X47X8) (NOK) | 1 шт. | — | |
|
| 25 | 91253-443-761 | DUST SEAL (30X47X8) (ARAI) | 1 шт. | — | |
|
| 26 | 91253-443-762 | DUST SEAL (30X47X8) (NOK) | 1 шт. | — | |
|
| 27 | 91351-MGS-D30 | O-RING (55X2) | 1 шт. | — | |
|
