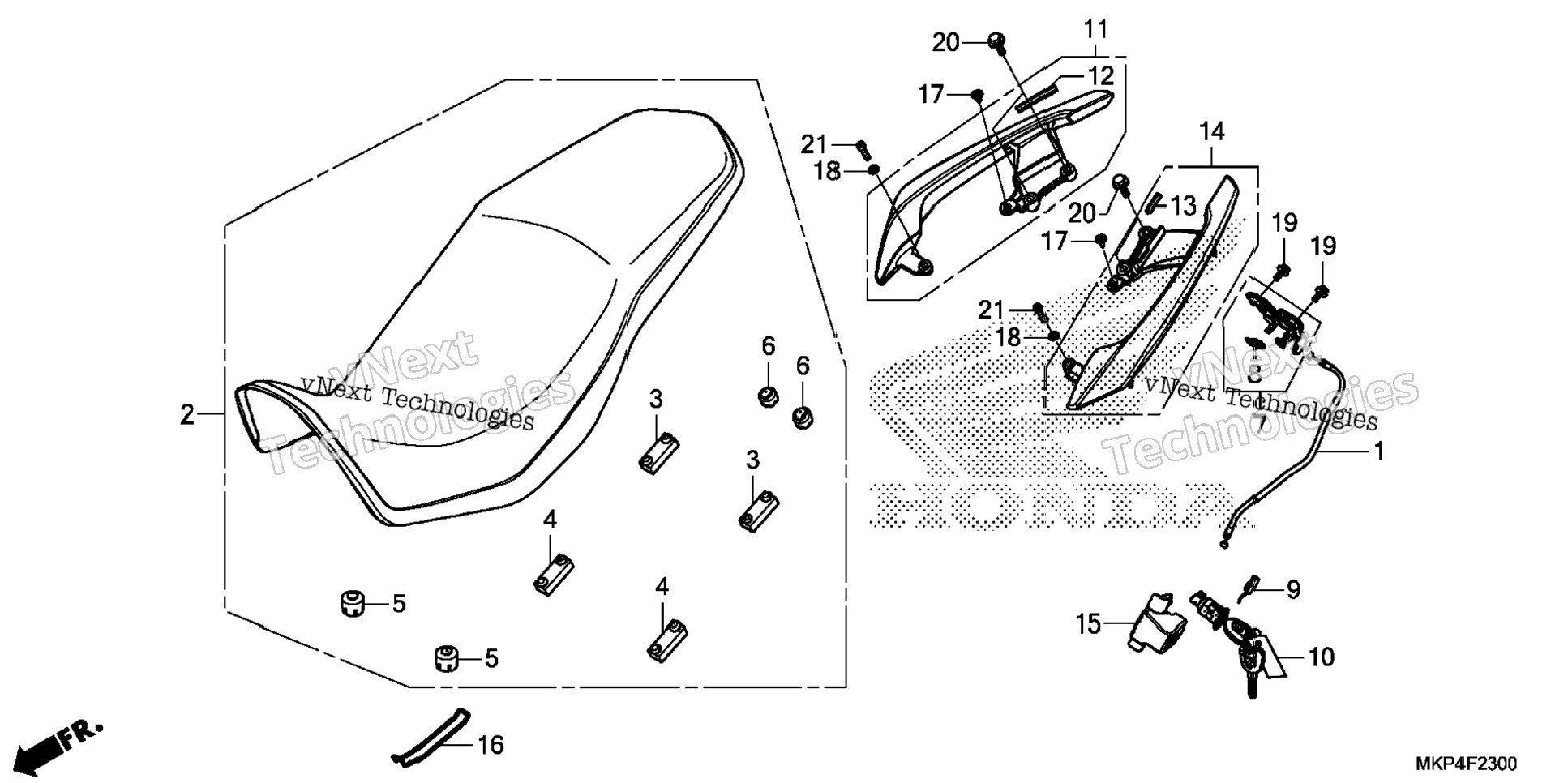

| 1 | 77156-MGZ-J81 | CABLE, SEAT LOCK | 1 шт. | — | |
|
| 2 | 77200-MKP-J81 | SEAT ASSY., DOUBLE | 1 шт. | — | |
|
| 3 | 77205-286-000 | RUBBER B, SEAT SETTING | 2 шт. | — | |
|
| 4 | 77205-MFE-670 | RUBBER, SEAT SETTING | 2 шт. | — | |
|
| 5 | 77206-MKP-J80 | RUBBER, SEAT CUSHION | 2 шт. | — | |
|
| 6 | 77214-KPH-900 | RUBBER B, SEAT SETTING | 2 шт. | — | |
|
| 7 | 77220-MGZ-J00 | LOCK, SEAT | 1 шт. | — | |
|
| 8 | 77234-GN2-000 | SPRING, SEAT LOCK | 1 шт. | — | |
|
| 9 | 77235-MJE-D00 | PLATE, LOCK KEY SETTING | 1 шт. | — | |
|
| 10 | 77239-MJE-D03 | KEY, SEAT LOCK (WAVE) | 1 шт. | — | |
|
| 11 | 77330-MGZ-J80ZE | GRIP, R. RR. *NH303M* (MAT AXIS GRAY METALLIC) | 1 шт. | — | |
|
| 12 | 77331-MGZ-J00 | RUBBER, RR. GRIP (R. SIDE) | 1 шт. | — | |
|
| 13 | 77331-MGZ-J80 | RUBBER, RR. GRIP (L. SIDE) | 1 шт. | — | |
|
| 14 | 77340-MGZ-J80ZD | GRIP, L. RR. *NH303M* (MAT AXIS GRAY METALLIC) | 1 шт. | — | |
|
| 15 | 77582-MJW-J80 | STAY, SEAT LOCK CABLE | 1 шт. | — | |
|
| 16 | 83606-KWS-901 | BAND, TOOL | 1 шт. | — | |
|
| 17 | 90683-GR1-003 | CLIP, BODY COVER | 2 шт. | — | |
|
| 18 | 94101-06000 | WASHER, PLAIN (6MM) | 2 шт. | — | |
|
| 19 | 94101-06080 | WASHER, PLAIN (6MM) | 2 шт. | — | |
|
| 20 | 94101-06800 | WASHER, PLAIN (6MM) (USED ON TAILLIGHT) | 2 шт. | — | |
|
| 21 | 95701-06012-00 | BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) | 2 шт. | — | |
|
| 22 | 95701-08025-00 | BOLT, FLANGE (8X25) | 4 шт. | — | |
|
| 23 | 96600-06025-00 | BOLT, SOCKET (6X25) | 2 шт. | — | |
|
