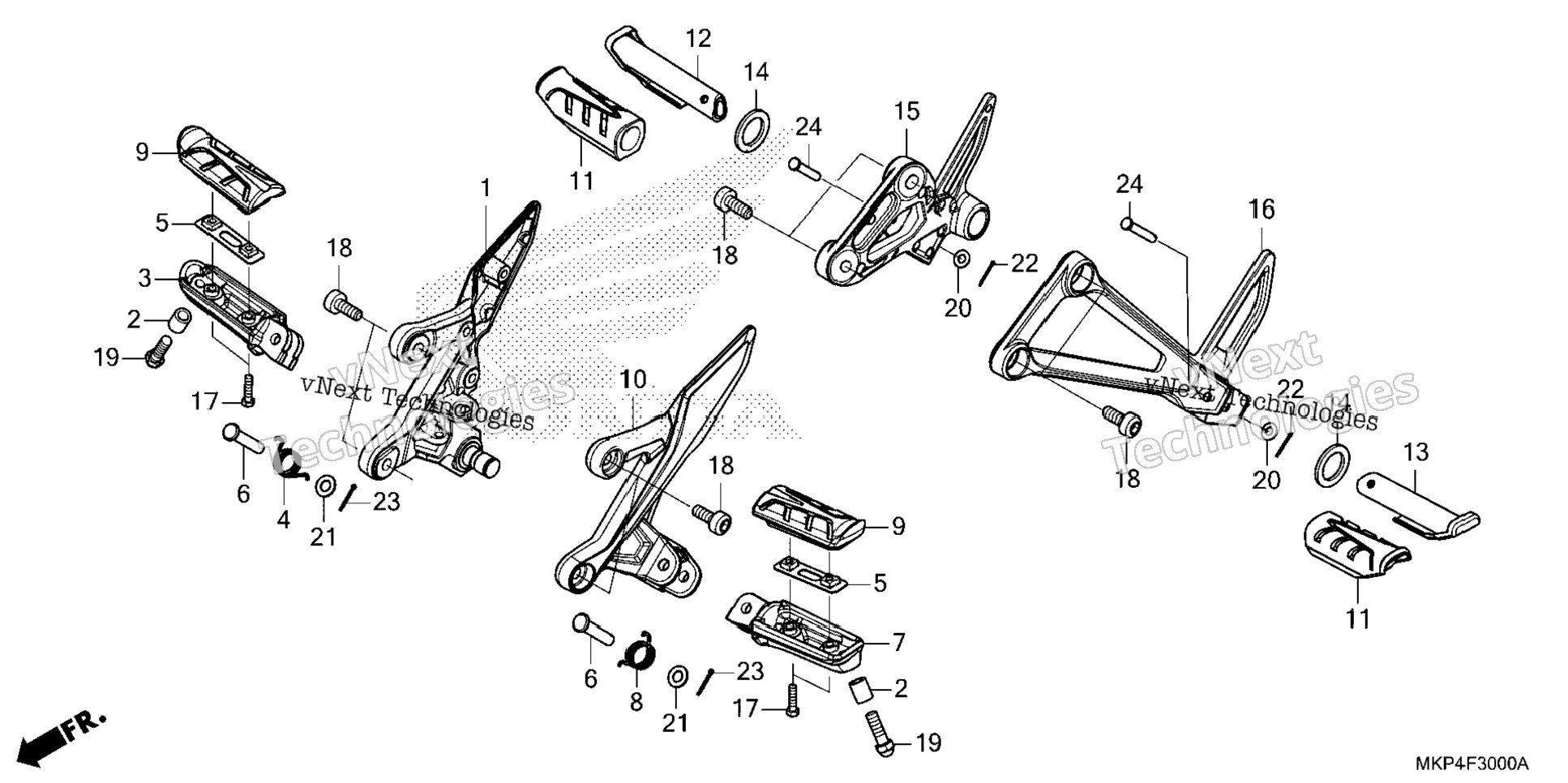

| 1 | 50600-MKP-J00 | HOLDER, R. MAIN STEP | 1 шт. | — | |
|
| 2 | 50611-MKP-J80 | COLLAR (12.7X15) | 2 шт. | — | |
|
| 3 | 50612-KYJ-305 | ARM, R. STEP (COO) | 1 шт. | — | |
|
| 4 | 50612-MM5-000 | ARM, R. STEP | 1 шт. | — | |
|
| 5 | 50617-445-840 | SPRING, R. STEP RETURN (L. SIDE) | 1 шт. | — | |
|
| 6 | 50619-MM5-000 | PLATE, STEP SETTING | 2 шт. | — | |
|
| 7 | 50639-ML0-010 | PIN, STEP BAR | 2 шт. | — | |
|
| 8 | 50642-KYJ-305 | ARM, L. STEP (COO) | 1 шт. | — | |
|
| 9 | 50642-MM5-000 | ARM, L. STEP | 1 шт. | — | |
|
| 10 | 50644-445-840 | SPRING, L. STEP RETURN (R. SIDE) | 1 шт. | — | |
|
| 11 | 50661-MJE-D00 | RUBBER, MAIN STEP | 2 шт. | — | |
|
| 12 | 50700-MJW-J00 | HOLDER, L. MAIN STEP | 1 шт. | — | |
|
| 13 | 50710-KYJ-305 | RUBBER, PILLION STEP (COO) | 2 шт. | — | |
|
| 14 | 50710-KYJ-900 | RUBBER, PILLION STEP | 2 шт. | — | |
|
| 15 | 50711-KET-600 | BAR, R. PILLION STEP | 1 шт. | — | |
|
| 16 | 50711-KYJ-305 | BAR, R. PILLION STEP (COO) | 1 шт. | — | |
|
| 17 | 50712-KET-600 | BAR, L. PILLION STEP | 1 шт. | — | |
|
| 18 | 50712-KYJ-305 | BAR, L. PILLION STEP (COO) | 1 шт. | — | |
|
| 19 | 50714-KBA-930 | PLATE, PILLION STEP SIDE | 2 шт. | — | |
|
| 20 | 50715-MKP-J80 | HOLDER, R. PILLION STEP | 1 шт. | — | |
|
| 21 | 50725-MGZ-J00 | HOLDER, L. PILLION STEP | 1 шт. | — | |
|
| 22 | 90115-MV9-000 | BOLT, MAIN STEP RUBBER SETTING | 4 шт. | — | |
|
| 23 | 90116-MGZ-J00 | BOLT, SOCKET (8X22) | 8 шт. | — | |
|
| 24 | 92501-08025-0A | BOLT, CAP (8X25) | 2 шт. | — | |
|
| 25 | 94101-06000 | WASHER, PLAIN (6MM) | 2 шт. | — | |
|
| 26 | 94101-06080 | WASHER, PLAIN (6MM) | 2 шт. | — | |
|
| 27 | 94101-06800 | WASHER, PLAIN (6MM) (USED ON TAILLIGHT) | 2 шт. | — | |
|
| 28 | 94102-08000 | WASHER, PLAIN (8MM) | 2 шт. | — | |
|
| 29 | 94201-16150 | PIN, COTTER (1.6X15) PIN, COTTER (1.6X25) | 2 шт. | — | |
|
| 30 | 94201-16250 | PIN, COTTER (1.6X25) | 2 шт. | — | |
|
| 31 | 94201-20150 | PIN, COTTER (2.0X15) | 2 шт. | — | |
|
| 32 | 95015-82000 | PIN B, PILLION FOOTPEG | 2 шт. | — | |
|
