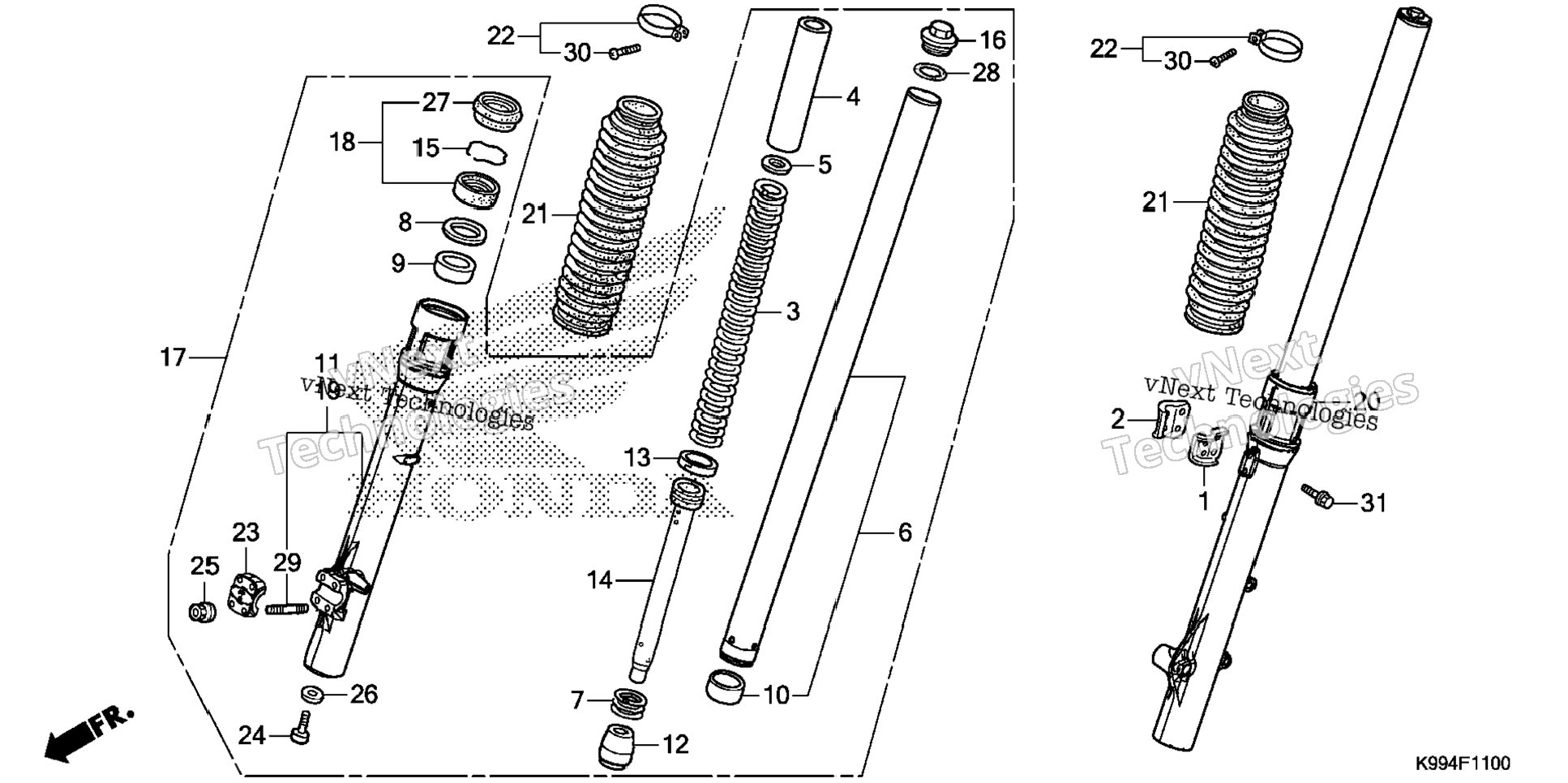

| 1 | 45461-KPS-900 | CLAMP A, BRAKE HOSE | 1 шт. | — | |
|
| 2 | 45462-KPE-730 | CLAMP B, BRAKE HOSE | 1 шт. | — | |
|
| 3 | 51401-K99-A01 | SPRING, FR. FORK | 2 шт. | — | |
|
| 4 | 51402-KV3-701 | COLLAR, SPRING (SHOWA) (R.) | 2 шт. | — | |
|
| 5 | 51403-KF0-003 | SEAT, SPRING (SHOWA) | 2 шт. | — | |
|
| 6 | 51410-K99-A01 | PIPE, FR. FORK | 2 шт. | — | |
|
| 7 | 51411-K99-A01 | SPRING, REBOUND | 2 шт. | — | |
|
| 8 | 51412-MB4-003 | RING, BACK-UP (SHOWA) | 2 шт. | — | |
|
| 9 | 51414-KCR-003 | BUSH, GUIDE (SHOWA) | 2 шт. | — | |
|
| 10 | 51414-MN5-003 | BUSH, GUIDE (SHOWA) | 2 шт. | — | |
|
| 11 | 51415-MG2-701 | BUSH, SLIDER | 2 шт. | — | |
|
| 12 | 51430-KPE-C01 | CASE SET, R. FR. (LOWER) (SHOWA) | 1 шт. | — | |
|
| 13 | 51432-MV4-003 | PIECE, OIL LOCK | 2 шт. | — | |
|
| 14 | 51437-KV3-701 | RING, PISTON | 2 шт. | — | |
|
| 15 | 51440-K99-A01 | PIPE, SEAT | 2 шт. | — | |
|
| 16 | 51447-MCG-003 | RING, OIL SEAL STOP | 2 шт. | — | |
|
| 17 | 51454-MM9-671 | BOLT, FR. FORK | 2 шт. | — | |
|
| 18 | 51480-K99-A01ZA | FORK SUB-ASSY., R. FR. *NH109MS* (SHOT SILVER METALLIC SPECIAL) | 1 шт. | — | |
|
| 19 | 51490-K99-A01 | SEAL SET, FR. FORK | 2 шт. | — | |
|
| 20 | 51530-K99-A01 | CASE SET, L. FR. (LOWER) | 1 шт. | — | |
|
| 21 | 51580-K99-A01 | FORK SUB-ASSY., L. FR. | 1 шт. | — | |
|
| 22 | 51611-KF0-003 | BOOT, FR. FORK | 2 шт. | — | |
|
| 23 | 51612-KF0-003 | BAND, FR. FORK BOOT | 2 шт. | — | |
|
| 24 | 51634-MK5-003ZK | HOLDER, AXLE *NH109MS* (SHOT SILVER METALLIC SPECIAL) | 1 шт. | — | |
|
| 25 | 90116-KV3-701 | BOLT, SOCKET (8MM) (SHOWA) | 2 шт. | — | |
|
| 26 | 90301-473-003 | NUT, U (6MM) NUT, FLANGE (6MM) | 4 шт. | — | |
|
| 27 | 90544-283-000 | WASHER, SPECIAL (8MM) (SHOWA) | 2 шт. | — | |
|
| 28 | 91254-KF0-003 | DUST SEAL, FR. FORK | 2 шт. | — | |
|
| 29 | 91356-KF0-003 | O-RING (21.7X3.5) (SHOWA) | 2 шт. | — | |
|
| 30 | 92900-06025-0E | BOLT, STUD (6X25) (R. SIDE ONLY) | 4 шт. | — | |
|
| 31 | 93500-03020-0A | SCREW, PAN (3X20) | 2 шт. | — | |
|
| 32 | 96001-06016-00 | BOLT, FLANGE (6X16) | 2 шт. | — | |
|
