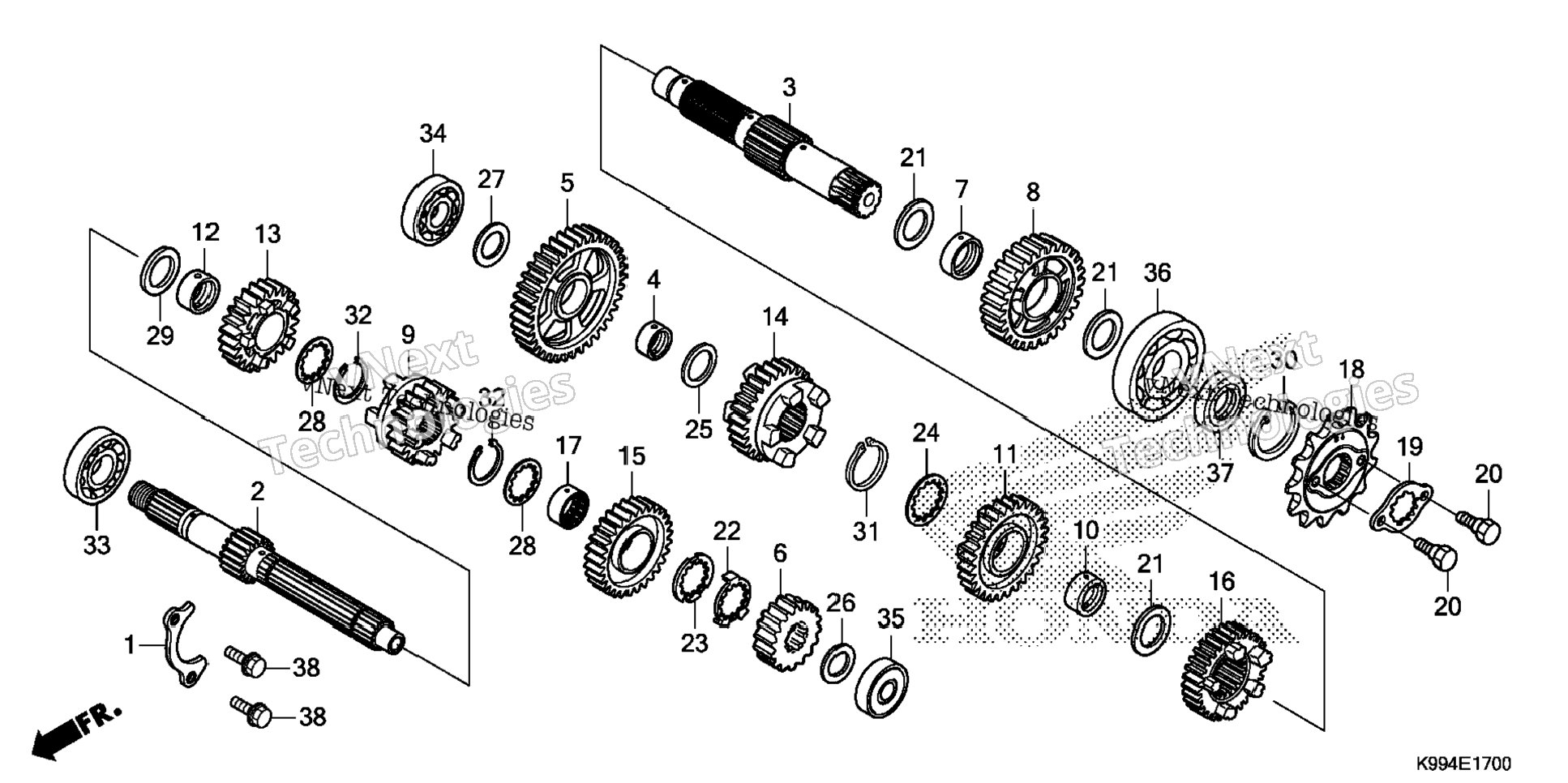

| 1 | 11215-K31-900 | PLATE, BEARING SETTING | 1 шт. | — | |
|
| 2 | 23211-K99-A00 | MAINSHAFT (13T) | 1 шт. | — | |
|
| 3 | 23221-K99-A00 | COUNTERSHAFT (21T) | 1 шт. | — | |
|
| 4 | 23412-K31-900 | COLLAR (18X21X10) | 1 шт. | — | |
|
| 5 | 23421-K99-A00 | GEAR, COUNTER FIRST (37T) | 1 шт. | — | |
|
| 6 | 23431-K99-A00 | GEAR, MAINSHAFT SECOND (20T) | 1 шт. | — | |
|
| 7 | 23432-KCZ-000 | BUSH (22X25X10) | 1 шт. | — | |
|
| 8 | 23441-K99-A00 | GEAR, COUNTERSHAFT SECOND (38T) | 1 шт. | — | |
|
| 9 | 23451-K99-A00 | GEAR, MAINSHAFT THIRD (20T) | 1 шт. | — | |
|
| 10 | 23452-KVK-900 | BUSH (22X25X13.1) | 1 шт. | — | |
|
| 11 | 23461-K99-A00 | GEAR, COUNTER THIRD (28T) | 1 шт. | — | |
|
| 12 | 23462-KVK-900 | BUSH (20X23X17.4) | 1 шт. | — | |
|
| 13 | 23471-K99-A00 | GEAR, MAINSHAFT FOURTH (24T) | 1 шт. | — | |
|
| 14 | 23481-K99-A00 | GEAR, COUNTER FOURTH (26T) | 1 шт. | — | |
|
| 15 | 23491-K99-A00 | GEAR, MAINSHAFT FIFTH (29T) | 1 шт. | — | |
|
| 16 | 23501-K99-A00 | GEAR, COUNTERSHAFT FIFTH (26T) | 1 шт. | — | |
|
| 17 | 23502-KVK-900 | COLLAR, SPLINE (23MM) | 1 шт. | — | |
|
| 18 | 23801-KPF-960 | SPROCKET, DRIVE (13T) | 1 шт. | — | |
|
| 19 | 23802-KYJ-900 | PLATE, FIXING | 1 шт. | — | |
|
| 20 | 90084-041-000 | BOLT, DRIVE SPROCKET FIXING | 2 шт. | — | |
|
| 21 | 90401-KE7-000 | WASHER, THRUST (22.2MM) | 3 шт. | — | |
|
| 22 | 90401-KVK-900 | WASHER, LOCK (20X19X1.0) | 1 шт. | — | |
|
| 23 | 90402-KVK-900 | WASHER, THRUST (20X19X1.0) | 1 шт. | — | |
|
| 24 | 90404-KW3-000 | WASHER, THRUST INVOLUTE (22X21X1) | 1 шт. | — | |
|
| 25 | 90452-701-000 | WASHER, THRUST (18MM) | 1 шт. | — | |
|
| 26 | 90452-K31-900 | WASHER (15X25X1.0) | 1 шт. | — | |
|
| 27 | 90453-K31-900 | WASHER (17X28X1.0) | 1 шт. | — | |
|
| 28 | 90453-KRM-840 | WASHER, SPLINE (20MM) | 2 шт. | — | |
|
| 29 | 90454-KPS-900 | WASHER B, THRUST (20MM) | 1 шт. | — | |
|
| 30 | 90601-K31-900 | CIRCLIP (INNER) (37MM) | 1 шт. | — | |
|
| 31 | 90602-360-000 | SET-RING, COUNTER SECOND | 1 шт. | — | |
|
| 32 | 90605-KVS-900 | SET-RING (20MM) | 2 шт. | — | |
|
| 33 | 91003-K31-901 | BEARING, RADIAL BALL (6204) (NSK) | 1 шт. | — | |
|
| 34 | 91004-K31-901 | BEARING, RADIAL BALL (6203) (U) (NSK) | 1 шт. | — | |
|
| 35 | 91005-K31-901 | BEARING, RADIAL BALL (6202U) (FAG) | 1 шт. | — | |
|
| 36 | 91005-KYJ-901 | BEARING, RADIAL BALL (63/22) | 1 шт. | — | |
|
| 37 | 91207-KYJ-711 | OIL SEAL (22X36X5) | 1 шт. | — | |
|
| 38 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 2 шт. | — | |
|
