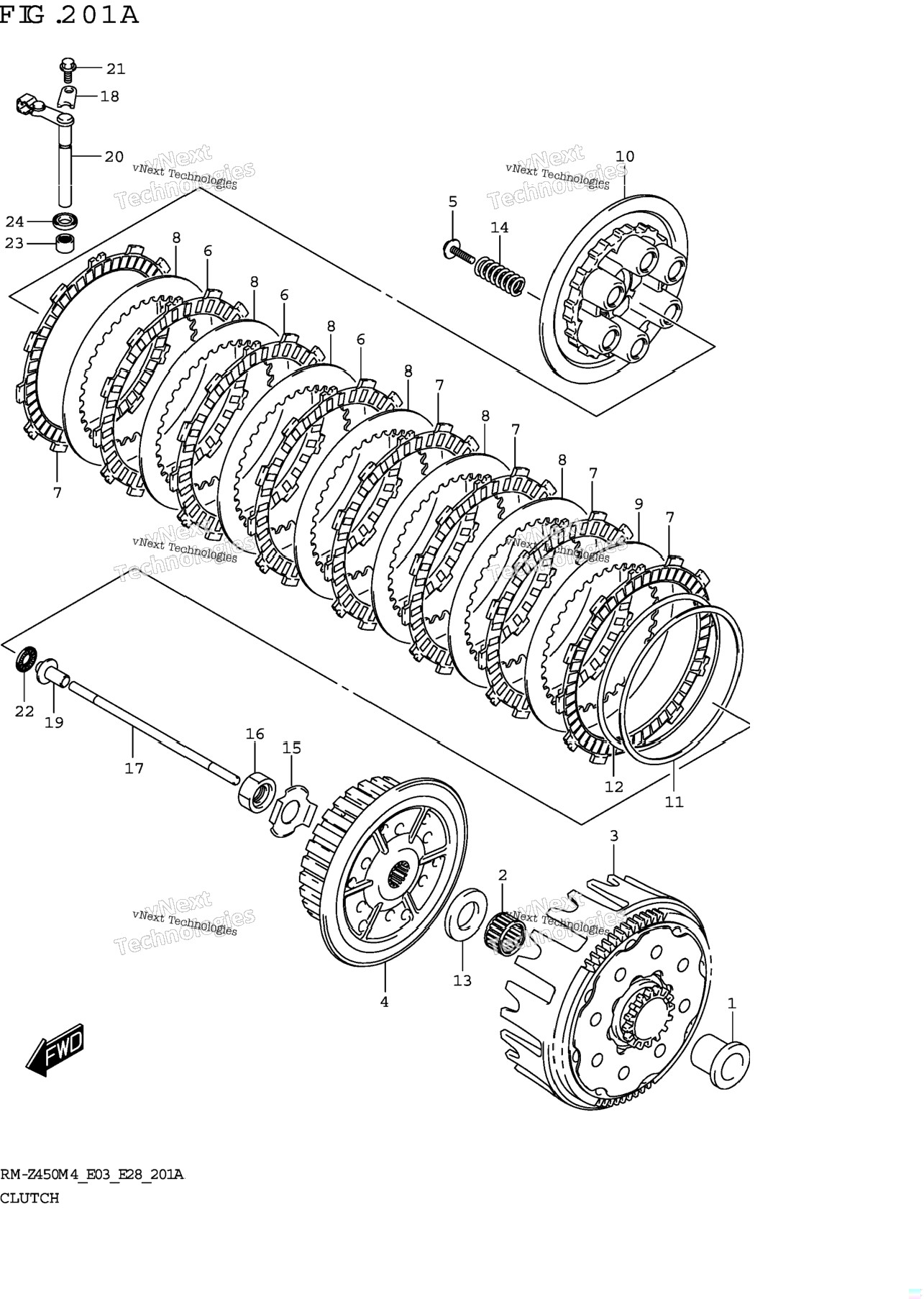

| 1 | 21251-28H00 | SPACER,PRI DRIVEN GEAR | 1 шт. | — | |
|
| 2 | 09263-28042 | BEARING (28X32X26) | 1 шт. | — | |
|
| 3 | 21200-28H10 | GEAR ASSY,PRIMARY DRIVEN (NT: 6/63) | 1 шт. | — | |
|
| 4 | 21411-35G30 | HUB,CLUTCH SLEEVE | 1 шт. | — | |
|
| 5 | 21412-35G00 | BOLT,CLUTCH SPRING (6X25) | 6 шт. | — | |
|
| 6 | 21441-35G00 | PLATE,CLUTCH DRIVE NO.1 (T:2. ) | 3 шт. | — | |
|
| 7 | 21441-37F30 | PLATE,CLUTCH DRIVE NO.2 (T:2. ) | 5 шт. | — | |
|
| 8 | 21451-35G00 | PLATE,CLUTCH DRIVEN (T:1.6) | 6 шт. | — | |
|
| 9 | 21452-35G00 | PLATE,CLUTCH DRIVEN (T:1.6) | 1 шт. | — | |
|
| 10 | 21462-28H00 | DISC,CLUTCH PRESSURE | 1 шт. | — | |
|
| 11 | 21471-28H00 | SEAT,WAVE WASHER | 1 шт. | — | |
|
| 12 | 21472-35G00 | WASHER,CLUTCH PLATE WAVE | 1 шт. | — | |
|
| 13 | 09160-22082 | WASHER (22.5X39X3) | 1 шт. | — | |
|
| 14 | 09440-18044 | SPRING | 6 шт. | — | |
|
| 15 | 21416-35G10 | WASHER,CLUTCH SLEEVE HUB LOCK | 1 шт. | — | |
|
| 16 | 09140-18017 | NUT | 1 шт. | — | |
|
| 17 | 23110-28H00 | ROD,CLUTCH PUSH | 1 шт. | — | |
|
| 18 | 23117-28H00 | RETAINER,CL RELEASE CAMSHAFT | 1 шт. | — | |
|
| 19 | 23121-37F00 | PIECE,CLUTCH PUSH | 1 шт. | — | |
|
| 20 | 23200-28H10 | CAMSHAFT,CLUTCH RELEASE | 1 шт. | — | |
|
| 21 | 09103-06280 | BOLT (6X12) | 1 шт. | — | |
|
| 22 | 09263-10002 | BEARING (10X22X2.8) | 1 шт. | — | |
|
| 23 | 09263-10014 | BEARING (10X14X10) | 2 шт. | — | |
|
| 24 | 09285-10004 | OIL SEAL (10X17X5) | 1 шт. | — | |
|
