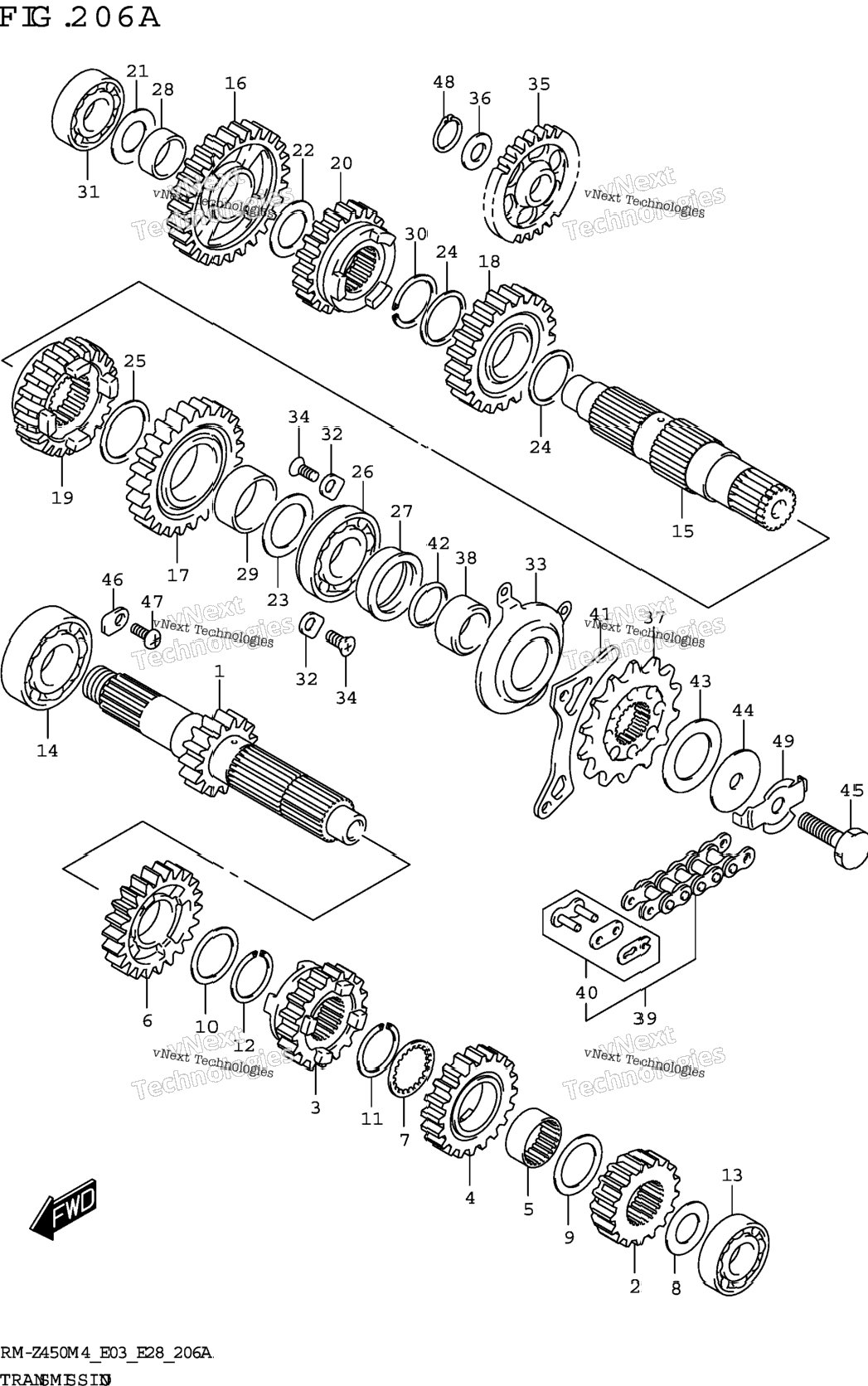

| 1 | 24120-28H21 | SHAFT,COUNTER (NT:15) | 1 шт. | — | |
|
| 2 | 24221-28H20 | GEAR,2ND DRIVE (NT:17) | 1 шт. | — | |
|
| 3 | 24231-28H30 | GEAR,3RD DRIVE (NT:17) | 1 шт. | — | |
|
| 4 | 24241-28H20 | GEAR,4TH DRIVE (NT:20) | 1 шт. | — | |
|
| 5 | 24242-28H00 | BUSH,4TH DRIVE GEAR | 1 шт. | — | |
|
| 6 | 24251-28H10 | GEAR,5TH DRIVE (NT:22) | 1 шт. | — | |
|
| 7 | 09167-25026 | WASHER,LOCK (25X31X1.0) | 1 шт. | — | |
|
| 8 | 09181-17223 | SHIM (17X30X1) | 1 шт. | — | |
|
| 9 | 09181-25059 | SHIM (25X34X1) | 1 шт. | — | |
|
| 10 | 09181-25139 | SHIM (25X32X1) | 1 шт. | — | |
|
| 11 | 09380-25010 | CIRCLIP | 1 шт. | — | |
|
| 12 | 09380-25010 | CIRCLIP | 1 шт. | — | |
|
| 13 | 08123-6203A | BEARING | 1 шт. | — | |
|
| 14 | 08143-62057 | BEARING (25X52X15) | 1 шт. | — | |
|
| 15 | 24131-28H20 | SHAFT,DRIVE | 1 шт. | — | |
|
| 16 | 24311-28H10 | GEAR,1ST DRIVEN (NT:27) | 1 шт. | — | |
|
| 17 | 24321-28H10 | GEAR,2ND DRIVEN (NT:25) | 1 шт. | — | |
|
| 18 | 24331-28H30 | EAR, 3RD DRIVEN (NT:21) | 1 шт. | — | |
|
| 19 | 24341-28H20 | GEAR,4TH DRIVEN (NT:21) | 1 шт. | — | |
|
| 20 | 24351-28H30 | GEAR,5TH DRIVEN (NT:20) | 1 шт. | — | |
|
| 21 | 09181-17223 | SHIM (17X30X1) | 1 шт. | — | |
|
| 22 | 09181-20195 | SHIM (20X30X1) | 1 шт. | — | |
|
| 23 | 09181-24005 | SHIM (24X34X1) | 1 шт. | — | |
|
| 24 | 09181-25111 | SHIM (25X30X1) | 2 шт. | — | |
|
| 25 | 09181-27015 | SHIM (27X33X1) | 1 шт. | — | |
|
| 26 | 09262-24001 | BEARING (24X56X14) | 1 шт. | — | |
|
| 27 | 09289-31003 | OIL SEAL (31X40X8.5) | 1 шт. | — | |
|
| 28 | 09300-20037 | BUSH (20X24X10) | 1 шт. | — | |
|
| 29 | 24322-28H00 | BUSH,2ND DRIVEN GEAR | 1 шт. | — | |
|
| 30 | 09380-25010 | CIRCLIP | 1 шт. | — | |
|
| 31 | 08123-6203A | BEARING | 1 шт. | — | |
|
| 32 | 24741-20A00 | RETAINER | 2 шт. | — | |
|
| 33 | 24751-28H00 | RETAINER,DRIVE SHAFT OIL SEAL | 1 шт. | — | |
|
| 34 | 09126-06011 | SCREW (6X12) | 2 шт. | — | |
|
| 35 | 26260-28H00 | GEAR,KICK STARTER IDLE (NT:27 | 1 шт. | — | |
|
| 36 | 09181-17130 | SHIM (17X24X0.5) | 1 шт. | — | |
|
| 37 | 27511-28H20 | SPROCKET,ENGINE (NT:13) | 1 шт. | — | |
|
| 38 | 27531-35G01 | SPACER,ENGINE SPROCKET | 1 шт. | — | |
|
| 39 | 27600-28H00-114 | CHAIN ASSY,DRIVE (DID520DMA2K GREEN) | 1 шт. | — | |
|
| 40 | 27620-28H00 | .JOINT SET,CHAIN (DID) | 1 шт. | — | |
|
| 41 | 27641-28H00 | PLATE,FRONT CHAIN GUIDE | 1 шт. | — | |
|
| 42 | 27515-28H00 | D-RING,SPROCKET SPACER | 1 шт. | — | |
|
| 43 | 27514-49H00 | WASHER,ENGINE SPROCKET WAVE | 1 шт. | — | |
|
| 44 | 27513-49H00 | WASHER,ENGINE SPROCKET | 1 шт. | — | |
|
| 45 | 27517-28H00 | BOLT,ENGINE SPROCKET | 1 шт. | — | |
|
| 46 | 24741-21A00 | RETAINER | 1 шт. | — | |
|
| 47 | 09125-06122 | SCREW (6X12) | 1 шт. | — | |
|
| 48 | 08331-31179 | CIRCLIP | 1 шт. | — | |
|
| 49 | 27516-28H00 | WASHER,ENG SPROCKET BOLT LOCK | 1 шт. | — | |
|
