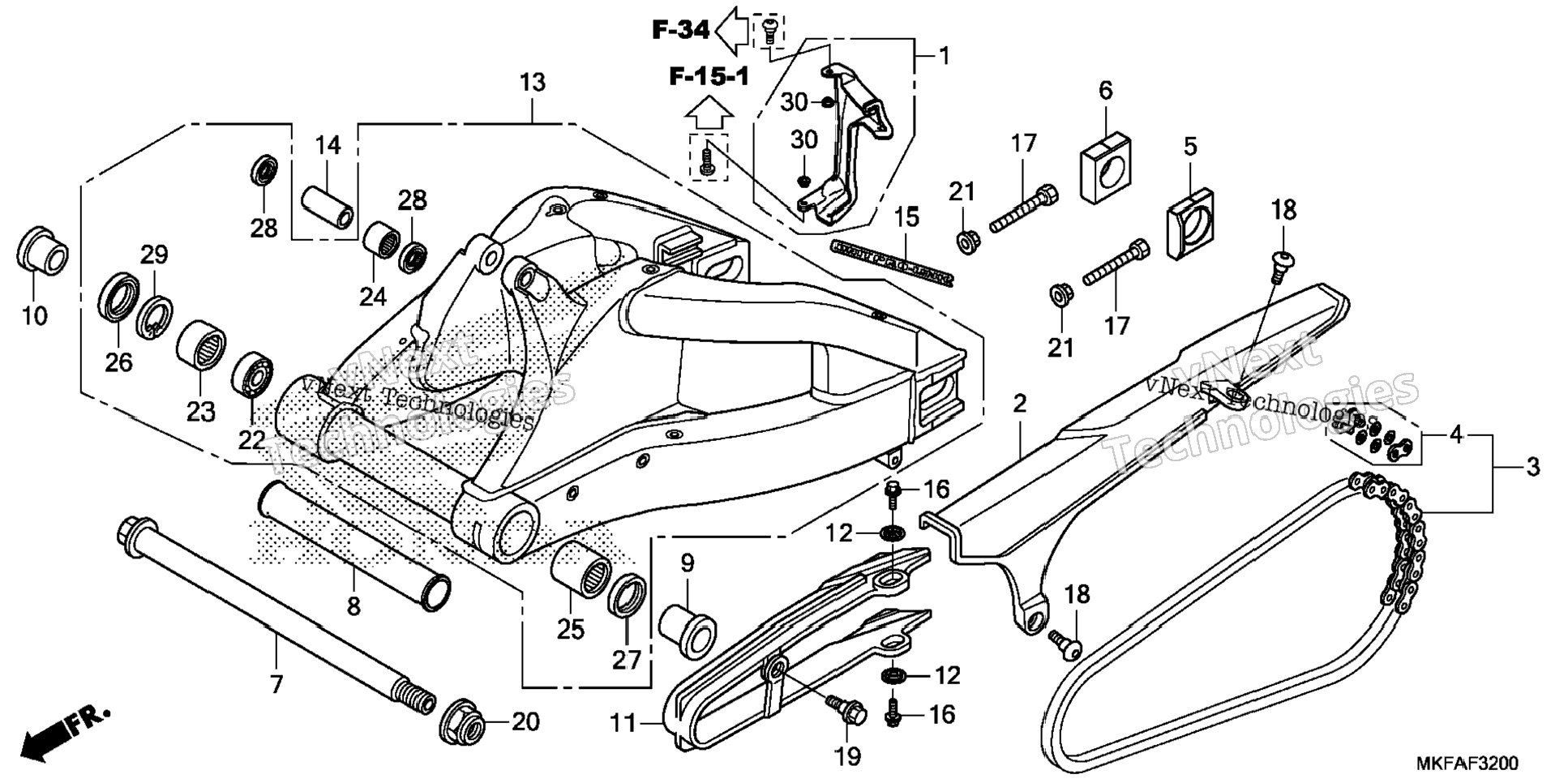

| 1 | 32118-MKF-D60 | COVER, RR. CUSHION WIRE | 1 шт. | — | |
|
| 2 | 40510-MFL-000 | CASE, DRIVE CHAIN | 1 шт. | — | |
|
| 3 | 40540-MKF-D42 | CHAIN, DRIVE (RK525ROZ7-120LJFZ) (RK JAPAN) (STANDARD LINK 116L) | 1 шт. | — | |
|
| 4 | 40535-MKF-D42 | MASTER LINK (RK JAPAN) | 1 шт. | — | |
|
| 5 | 42305-MKF-D40 | COLLAR, L. RR. AXLE | 1 шт. | — | |
|
| 6 | 42306-MKF-D40 | COLLAR, R. RR. AXLE | 1 шт. | — | |
|
| 7 | 52101-MFL-000 | BOLT, SWINGARM PIVOT | 1 шт. | — | |
|
| 8 | 52102-MKF-D40 | COLLAR, RR. SWINGARM DISTANCE | 1 шт. | — | |
|
| 9 | 52143-MFL-000 | COLLAR, L. PIVOT DISTANCE | 1 шт. | — | |
|
| 10 | 52144-MFL-000 | COLLAR, R. PIVOT DISTANCE (L.) (L. SIDE) | 1 шт. | — | |
|
| 11 | 52170-MFL-010 | SLIDER, CHAIN | 1 шт. | — | |
|
| 12 | 52171-MFJ-D00 | WASHER, CHAIN SLIDER | 2 шт. | — | |
|
| 13 | 52200-MKF-D60 | SWINGARM SUB-ASSY. | 1 шт. | — | |
|
| 14 | 52463-MAL-G00 | COLLAR, CUSHION CONNECTING ROD | 1 шт. | — | |
|
| 15 | 87121-MEE-000 | MARK (UNIT PROLINK) | 1 шт. | — | |
|
| 16 | 90105-MY9-000 | BOLT, FLANGE (6X18) | 2 шт. | — | |
|
| 17 | 90107-MFL-D20 | BOLT, HEX. (8X50) | 2 шт. | — | |
|
| 18 | 90116-MFL-D20 | SCREW, SPECIAL (6X16) | 2 шт. | — | |
|
| 19 | 90130-MCJ-750 | BOLT, CHAIN SLIDER | 1 шт. | — | |
|
| 20 | 90306-MFL-D31 | NUT, U (22MM) | 1 шт. | — | |
|
| 21 | 90309-357-000 | NUT, HEX. (10MM) | 2 шт. | — | |
|
| 22 | 91053-MCJ-003 | BEARING, RADIAL BALL (6905) | 1 шт. | — | |
|
| 23 | 91053-MCJ-751 | BEARING, NEEDLE (32X42X20) | 1 шт. | — | |
|
| 24 | 91071-KV3-005 | BEARING, NEEDLE (KOYO) | 1 шт. | — | |
|
| 25 | 91071-MCJ-003 | BEARING, NEEDLE (32X42X37) | 1 шт. | — | |
|
| 26 | 91252-MCF-003 | DUST SEAL (32X45X6) | 1 шт. | — | |
|
| 27 | 91253-MCF-003 | DUST SEAL (32X42X6) | 1 шт. | — | |
|
| 28 | 91262-KV3-831 | DUST SEAL (17X24X5) (ARAI) | 2 шт. | — | |
|
| 29 | 94520-45000 | CIRCLIP (INNER) (45MM) | 1 шт. | — | |
|
| 30 | 64203-166-610 | COLLAR, FAIRING STAY | 2 шт. | — | |
|
