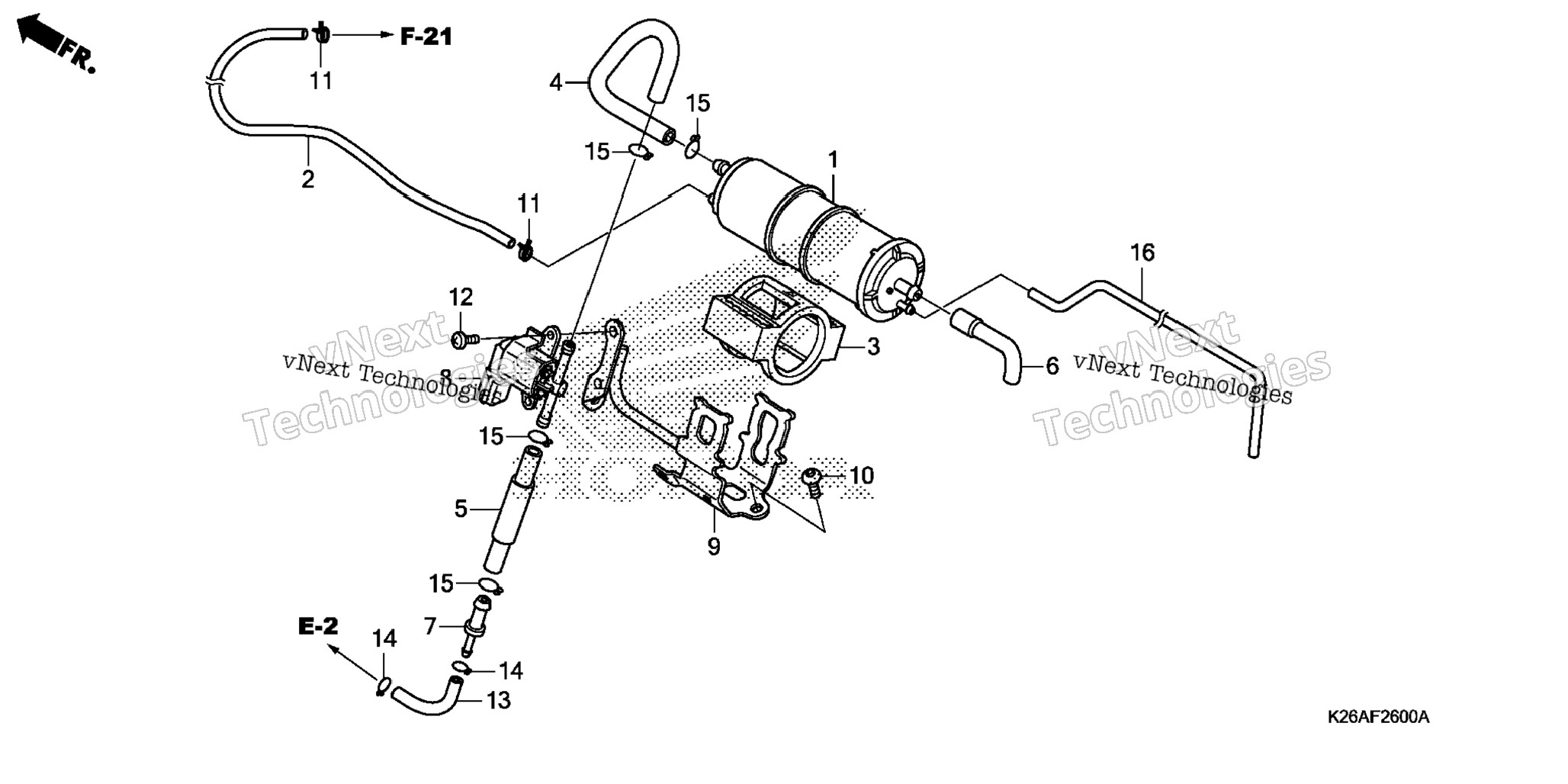

| 1 | 17410-GFM-K01 | CANISTER | 1 шт. | — | |
|
| 2 | 17411-K26-910 | TUBE, CHARGE | 1 шт. | — | |
|
| 3 | 17411-KVR-C00 | RUBBER, CANISTER MOUNT | 1 шт. | — | |
|
| 4 | 17414-K26-B10 | TUBE A, PURGE | 1 шт. | — | |
|
| 5 | 17415-K26-910 | TUBE B, PURGE | 1 шт. | — | |
|
| 6 | 17416-K26-B10 | TUBE, AIR | 1 шт. | — | |
|
| 7 | 19126-KM1-010 | JOINT, TUBE | 1 шт. | — | |
|
| 8 | 36162-KZL-931 | VALVE, PURGE CONTROL SOLENOID | 1 шт. | — | |
|
| 9 | 50185-K26-910 | BRACKET, CANISTER | 1 шт. | — | |
|
| 10 | 90106-MAV-000 | SCREW, PAN (6X12) | 2 шт. | — | |
|
| 11 | 90652-KSJ-A21 | CLAMP, TUBE (8.0) | 2 шт. | — | |
|
| 12 | 93500-05010-0H | SCREW, PAN (5X10) | 2 шт. | — | |
|
| 13 | 95001-35003-60M | BULK HOSE, FUEL (3.5X3000) (95001-3500(95001-35001-60M) | 1 шт. | — | |
|
| 14 | 95002-02070 | CLIP, TUBE (B7) CLIP, TUBE (B6.5) | 2 шт. | — | |
|
| 15 | 95002-02130 | CLIP, TUBE (B12.5) | 4 шт. | — | |
|
| 16 | 95005-45001-10M | BULK HOSE, VACUUM (4.5X1000) (4.5X160) (BULK HOSE: (95005-45008-10M) | 1 шт. | — | |
|
