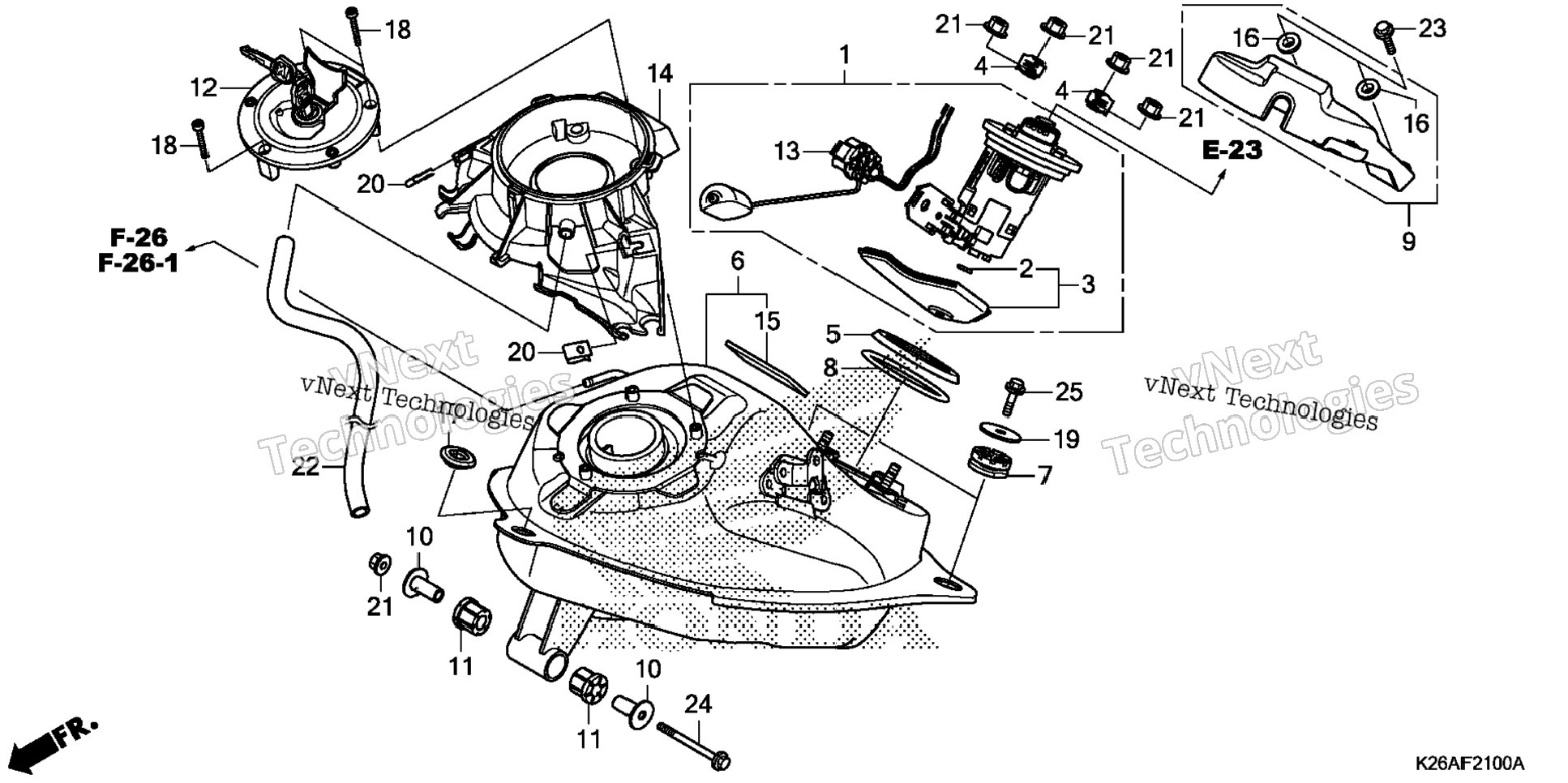

| 1 | 16700-K26-B01 | PUMP ASSY., FUEL | 1 шт. | — | |
|
| 2 | 16706-KVB-S51 | O-RING (P7) | 1 шт. | — | |
|
| 3 | 16706-K81-N01 | O-RING (P7) | 1 шт. | — | |
|
| 4 | 16707-KZV-T01 | FILTER SET | 1 шт. | — | |
|
| 5 | 17517-GGL-J00 | RETAINER, FUEL PUMP | 2 шт. | — | |
|
| 6 | 17518-GHB-601 | DUST SEAL (OHTUKA POLY-TECH) | 1 шт. | — | |
|
| 7 | 17520-K26-B01 | TANK SET, FUEL | 1 шт. | — | |
|
| 8 | 17531-K26-B00 | RUBBER, TANK | 2 шт. | — | |
|
| 9 | 17572-GHB-601 | O-RING, FUEL PUMP (ARAI) | 1 шт. | — | |
|
| 10 | 17575-K26-B00 | COVER, FUEL PUMP | 1 шт. | — | |
|
| 11 | 17614-K26-900 | COLLAR, FUEL TANK | 2 шт. | — | |
|
| 12 | 17615-K26-900 | CUSHION, RR. FUEL TANK PIVOT (FOR FR.) | 2 шт. | — | |
|
| 13 | 17620-K26-B01 | CAP, FUEL FILLER | 1 шт. | — | |
|
| 14 | 37800-K26-B01 | FUEL UNIT | 1 шт. | — | |
|
| 15 | 64460-K26-B00 | COVER, TANK CAP | 1 шт. | — | |
|
| 16 | 81257-K26-B00 | RUBBER, PROTECTOR | 1 шт. | — | |
|
| 17 | 81312-KPH-900 | COLLAR, FR. FENDER | 2 шт. | — | |
|
| 18 | 83551-300-000 | GROMMET, AIR CLEANER HOUSING | 1 шт. | — | |
|
| 19 | 90120-MJE-D00 | BOLT, SOCKET (4X25) (SUS) | 3 шт. | — | |
|
| 20 | 90136-428-870 | WASHER, TANK SETTING | 2 шт. | — | |
|
| 21 | 90302-KWW-A00 | NUT, SPRING (4MM) | 2 шт. | — | |
|
| 22 | 94050-06000 | NUT, FLANGE (6MM) | 5 шт. | — | |
|
| 23 | 95005-80001-20M | BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M) | 1 шт. | — | |
|
| 24 | 95701-06012-00 | BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) | 2 шт. | — | |
|
| 25 | 95701-06060-00 | BOLT, FLANGE (6X60) | 1 шт. | — | |
|
| 26 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 2 шт. | — | |
|
| 27 | 95801-06014-00 | BOLT, FLANGE (6X14) | 2 шт. | — | |
|
