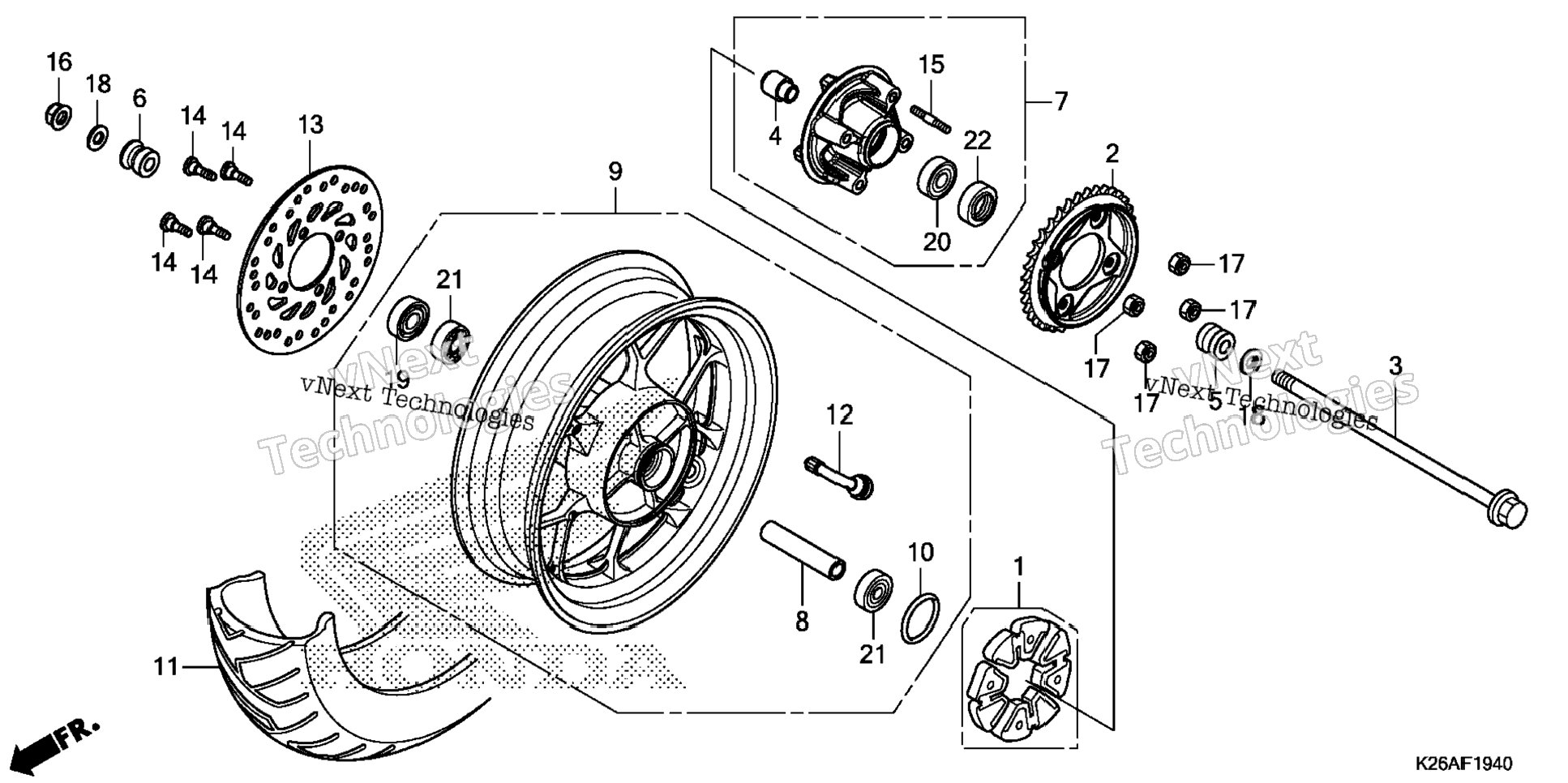

| 1 | 06410-KWB-600 | DAMPER SET, WHEEL | 1 шт. | — | |
|
| 2 | 41200-K26-901 | SPROCKET, FINAL DRIVEN (34T) | 1 шт. | — | |
|
| 3 | 42301-K26-900 | AXLE, RR. WHEEL | 1 шт. | — | |
|
| 4 | 42303-KWB-600 | SLEEVE, RR. WHEEL | 1 шт. | — | |
|
| 5 | 42311-K26-900 | COLLAR, L. RR. WHEEL SIDE | 1 шт. | — | |
|
| 6 | 42312-K26-900 | COLLAR, R. RR. WHEEL SIDE | 1 шт. | — | |
|
| 7 | 42615-K26-B10 | FLANGE SUB-ASSY., FINAL DRIVEN | 1 шт. | — | |
|
| 8 | 42620-K26-900 | COLLAR, RR. AXLE DISTANCE | 1 шт. | — | |
|
| 9 | 42650-K26-B00ZA | WHEEL SUB-ASSY., RR. *NH303M* (MAT AXIS GRAY METALLIC) | 1 шт. | — | |
|
| 10 | 42653-001-004 | O-RING (40.5X3) (NIPPON DUST KEEPER) | 1 шт. | — | |
|
| 11 | 42711-K26-B02 | TIRE, RR. (130/70-12 56L) (IRC) | 1 шт. | — | |
|
| 12 | 42711-K26-B01 | TIRE, RR. (130/70-12 56L) (VEE) | 1 шт. | — | |
|
| 13 | 42711-K26-B03 | TIRE, RR. (130/70-12 56L) (VEE) | 1 шт. | — | |
|
| 14 | 42753-KJ9-004 | VALVE, RIM (DUNLOP) | 1 шт. | — | |
|
| 15 | 43251-K26-900 | DISK, RR. BRAKE | 1 шт. | — | |
|
| 16 | 90105-KGH-900 | BOLT, BRAKE DISK (8X24) | 4 шт. | — | |
|
| 17 | 90128-KWB-600 | BOLT, STUD (8X18) | 4 шт. | — | |
|
| 18 | 90306-KGH-901 | NUT, U (12MM) (FUJI SEIMITSU) | 1 шт. | — | |
|
| 19 | 90309-KPH-971 | NUT, U (8MM) (FUJI SEIMITSU) | 4 шт. | — | |
|
| 20 | 90504-K26-900 | WASHER, RR. AXLE | 2 шт. | — | |
|
| 21 | 90753-051-003 | OIL SEAL (26X37X6) (ARAI) | 1 шт. | — | |
|
| 22 | 91051-K35-V02 | BEARING, RADIAL BALL (6203UU) (NTN) | 1 шт. | — | |
|
| 23 | 91051-K35-V03 | BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) | 1 шт. | — | |
|
| 24 | 91053-K03-H01 | BEARING, RADIAL BALL (6301U L) (NTN) | 2 шт. | — | |
|
| 25 | 91053-K03-H02 | BEARING, RADIAL BALL (6301U L) (FAG) | 2 шт. | — | |
|
| 26 | 91251-KGH-902 | DUST SEAL (27X40X4.5) (NOK) | 1 шт. | — | |
|
