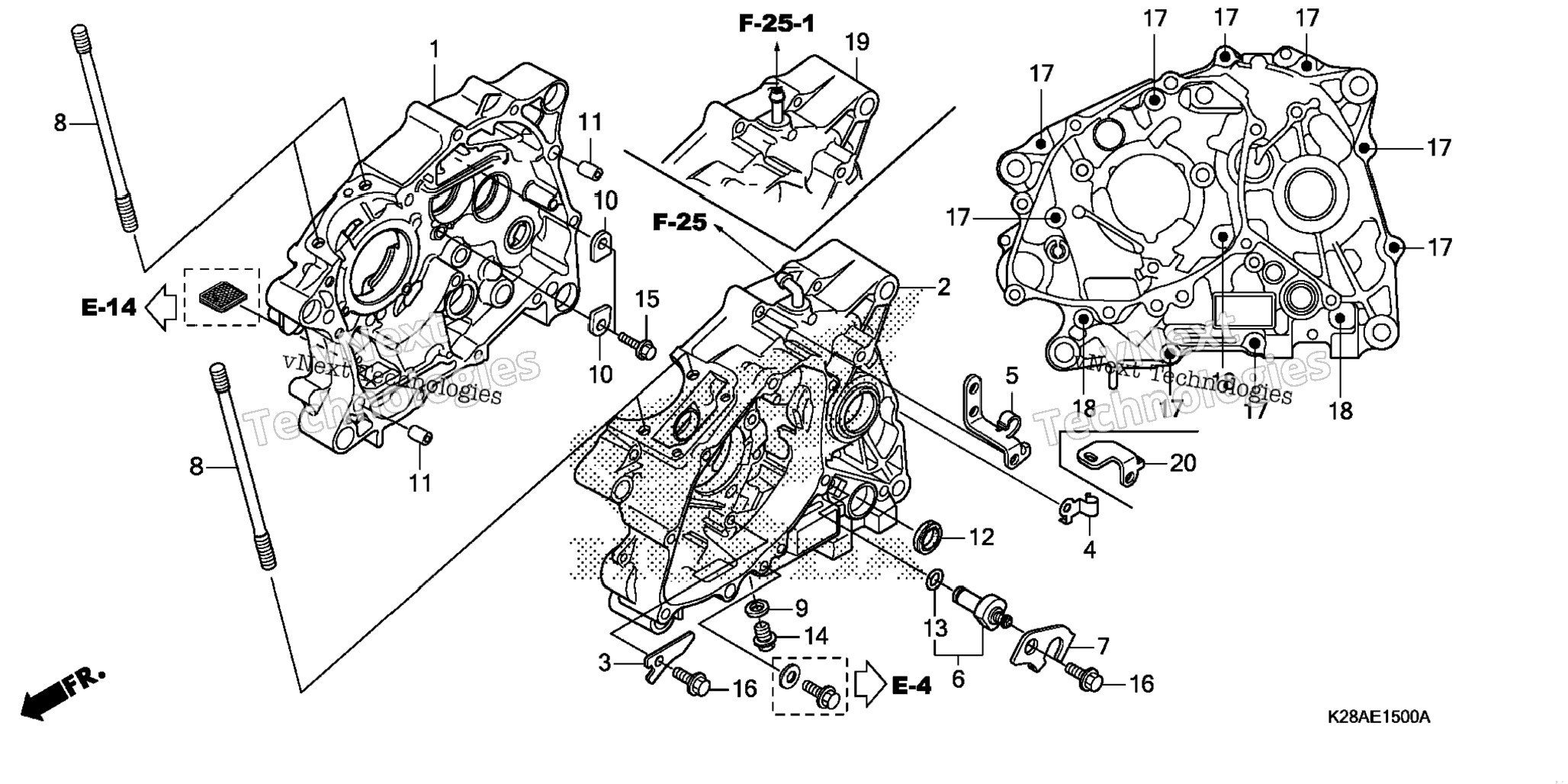

| 1 | 11100-K08-900 | CRANKCASE, R. | 1 шт. | — | |
|
| 3 | 11218-KWS-900 | PLATE, OIL STOPPER | 1 шт. | — | |
|
| 6 | 35750-KYY-901 | CONTACT, NEUTRAL SWITCH | 1 шт. | — | |
|
| 7 | 35755-KYY-900 | PLATE, CONTACT FIXING | 1 шт. | — | |
|
| 8 | 90031-KYY-900 | BOLT, CYLINDER STUD | 4 шт. | — | |
|
| 9 | 90407-259-000 | GASKET, DRAIN PETCOCK (12.5X20) | 1 шт. | — | |
|
| 10 | 90441-KRM-840 | PLATE, BEARING HOLDER | 2 шт. | — | |
|
| 11 | 90703-KWS-900 | PIN, DOWEL (10X14) | 2 шт. | — | |
|
| 12 | 91203-KSP-911 | OIL SEAL (14X22X5) (ARAI) | 1 шт. | — | |
|
| 13 | 91312-107-000 | O-RING (7X1.7) | 1 шт. | — | |
|
| 14 | 92800-12000 | BOLT, DRAIN PLUG (12MM) | 1 шт. | — | |
|
| 15 | 95701-06016-00 | BOLT, FLANGE (6X16) (Honda Code 2410892) | 2 шт. | — | |
|
| 16 | 96001-06014-00 | BOLT, FLANGE (6X14) | 2 шт. | — | |
|
| 17 | 96001-06040-00 | BOLT, FLANGE (6X40) | 9 шт. | — | |
|
| 18 | 96001-06060-00 | BOLT, FLANGE (6X60) | 3 шт. | — | |
|
| 19 | 11200-KYY-901 | CRANKCASE, L. | 1 шт. | — | |
|
| 20 | 32411-K28-A60 | STAY, STARTER CABLE | 1 шт. | — | |
|
