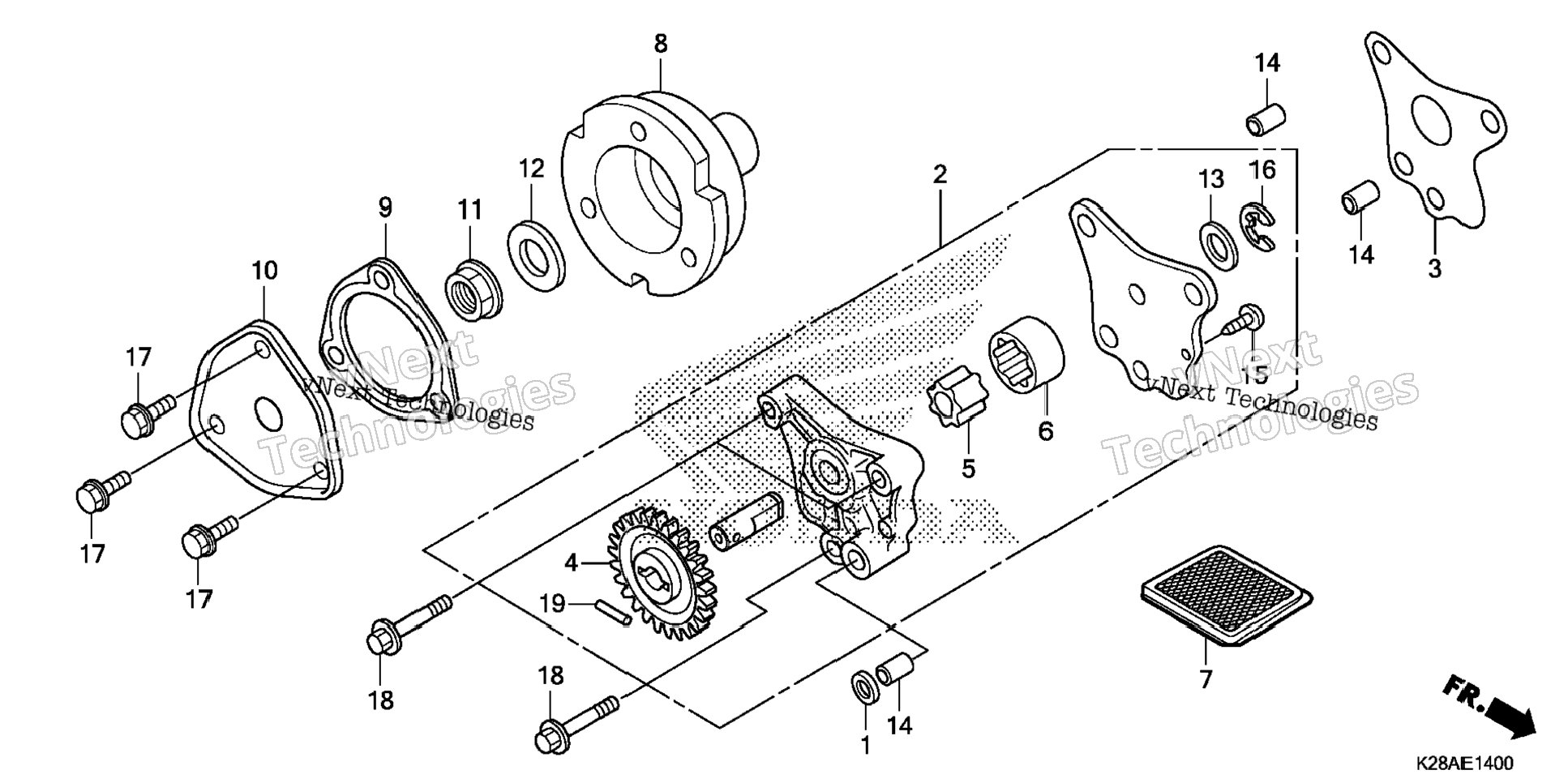

| 1 | 12396-KRM-840 | GASKET B, HEAD COVER | 1 шт. | — | |
|
| 2 | 15100-KYY-900 | PUMP ASSY., OIL | 1 шт. | — | |
|
| 3 | 15119-KWS-901 | GASKET, OIL PUMP | 1 шт. | — | |
|
| 4 | 15133-KYY-900 | GEAR, OIL PUMP DRIVEN (23T) | 1 шт. | — | |
|
| 5 | 15331-KYY-900 | ROTOR, OIL PUMP (INNER) | 1 шт. | — | |
|
| 6 | 15332-KYY-900 | ROTOR, OIL PUMP (OUTER) | 1 шт. | — | |
|
| 7 | 15421-KSP-910 | SCREEN, OIL FILTER | 1 шт. | — | |
|
| 8 | 15431-KWS-900 | ROTOR, OIL FILTER | 1 шт. | — | |
|
| 9 | 15439-KWS-901 | GASKET, OIL FILTER COVER | 1 шт. | — | |
|
| 9 | 15439-K26-901 | GASKET, OIL FILTER COVER | 1 шт. | — | |
|
| 10 | 15441-KWS-900 | COVER, OIL FILTER | 1 шт. | — | |
|
| 11 | 90202-KRM-840 | NUT, SPECIAL FLANGE (14MM) | 1 шт. | — | |
|
| 12 | 90432-KPT-A00 | WASHER (14.2X26X3) | 1 шт. | — | |
|
| 13 | 90455-KWS-900 | WASHER (9.2MM) | 1 шт. | — | |
|
| 14 | 90702-KRM-840 | PIN, DOWEL (8X14) | 3 шт. | — | |
|
| 15 | 93901-34120 | SCREW, TAPPING (4X8) | 1 шт. | — | |
|
| 16 | 94540-06018 | E-RING (6MM) | 1 шт. | — | |
|
| 17 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 3 шт. | — | |
|
| 18 | 96001-06035-00 | BOLT, FLANGE (6X35) (Honda Code 2112209) | 3 шт. | — | |
|
| 19 | 96220-30158 | ROLLER (3X15.8) | 1 шт. | — | |
|
