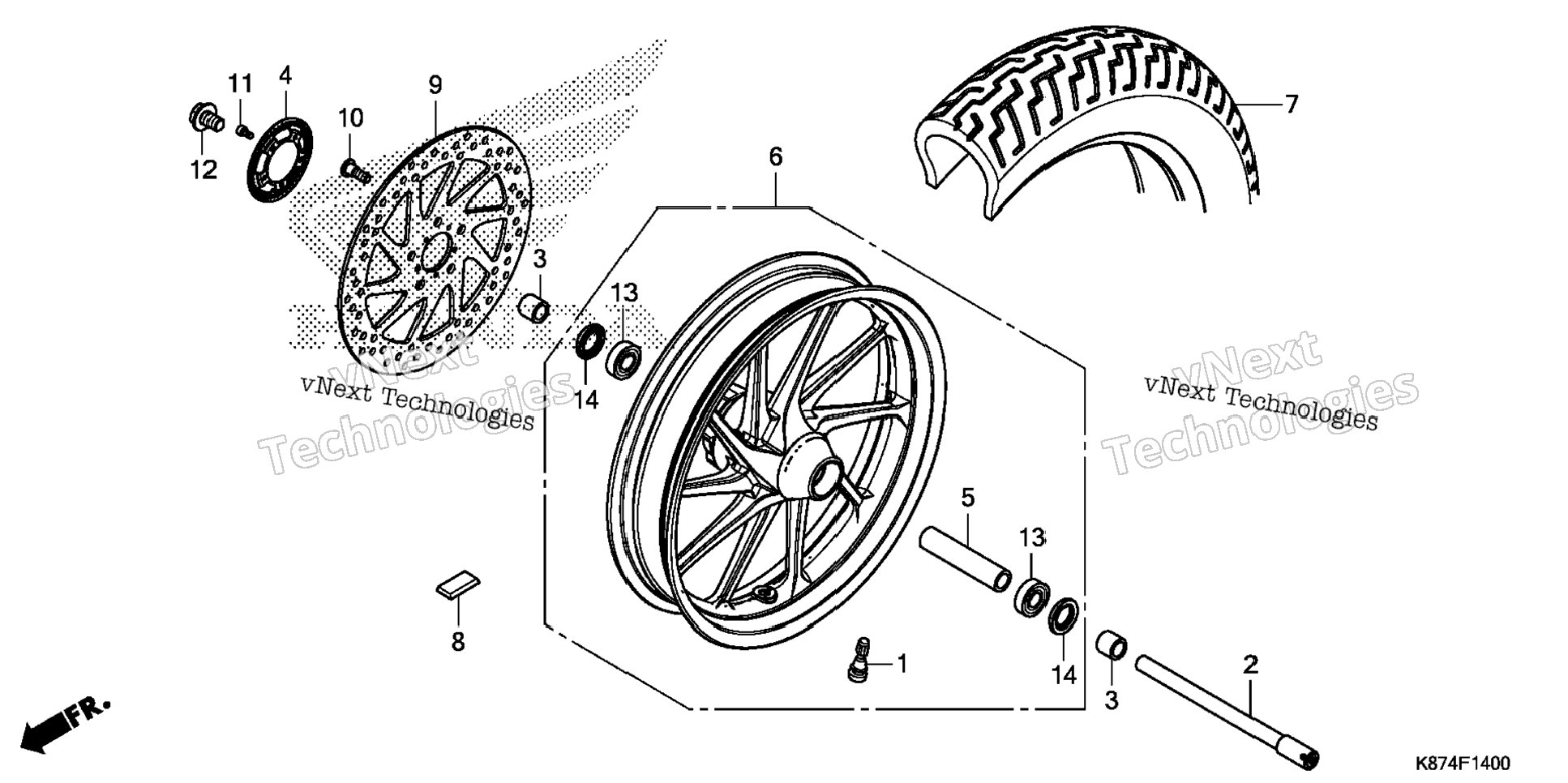

| 1 | 42753-GM9-743 | VALVE, RIM (IRC) | 1 шт. | — | |
|
| 2 | 44301-K87-A00 | AXLE, FR. WHEEL | 1 шт. | — | |
|
| 3 | 44311-MGZ-J00 | COLLAR, FR. WHEEL SIDE | 2 шт. | — | |
|
| 4 | 44515-K87-L50 | RING, FR. PULSER | 1 шт. | — | |
|
| 5 | 44620-K87-A00 | COLLAR, FR. WHEEL DISTANCE | 1 шт. | — | |
|
| 6 | 44650-K87-A00 | WHEEL SUB-ASSY., FR. | 1 шт. | — | |
|
| 7 | 44711-K87-A01 | TIRE, FR. (130/90-16 M/C 67H) (DUNLOP) | 1 шт. | — | |
|
| 8 | 44711-K87-A02 | TIRE, FR. (130/90-16 M/C 67H) (DUNLOP) | 1 шт. | — | |
|
| 9 | 44721-MGH-H21 | WEIGHT, BALANCE (10G) | 1 шт. | — | |
|
| 10 | 44722-MGH-H21 | WEIGHT, BALANCE (15G) | 1 шт. | — | |
|
| 11 | 44723-MGH-H21 | WEIGHT, BALANCE (20G) | 1 шт. | — | |
|
| 12 | 45251-K87-L50 | DISK, FR. BRAKE | 1 шт. | — | |
|
| 13 | 90105-MGS-D30 | BOLT, DISK (8X25) | 5 шт. | — | |
|
| 14 | 90131-K87-L50 | BOLT, SOCKET (5X10) | 5 шт. | — | |
|
| 15 | 90305-K87-A00 | BOLT, FR. AXLE | 1 шт. | — | |
|
| 16 | 91051-KVK-901 | BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) | 2 шт. | — | |
|
| 17 | 91252-K35-V01 | DUST SEAL (25X40X5) | 2 шт. | — | |
|
