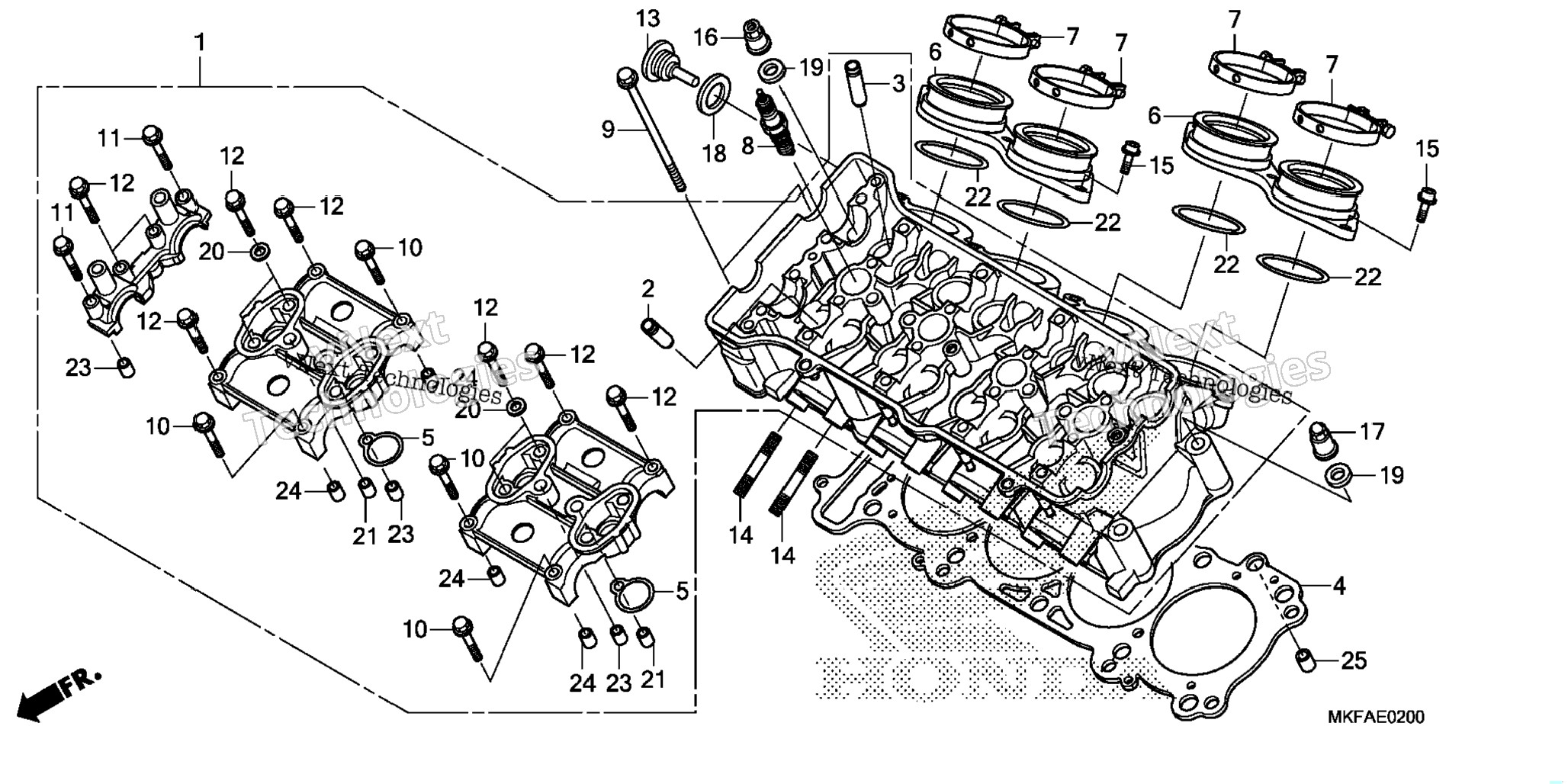

| 1 | 12010-MKF-D40 | CYLINDER HEAD ASSY. | 1 шт. | — | |
|
| 2 | 12204-MBW-305 | GUIDE, VALVE (OVER SIZE) (EXHAUST SIDE) | 8 шт. | — | |
|
| 3 | 12204-MFL-305 | GUIDE, VALVE (OVER SIZE) (INLET SIDE) | 8 шт. | — | |
|
| 4 | 12251-MFL-003 | GASKET, CYLINDER HEAD | 1 шт. | — | |
|
| 5 | 12395-MBW-003 | GASKET, PLUG HOLE | 4 шт. | — | |
|
| 6 | 16210-MKF-D40 | INSULATOR, THROTTLE BODY | 2 шт. | — | |
|
| 7 | 16218-MKF-D40 | BAND, INSULATOR | 4 шт. | — | |
|
| 8 | 31912-MFL-003 | SPARK PLUG (IMR9E-9HES) (NGK) | 4 шт. | — | |
|
| 8 | 31922-MEL-003 | SPARK PLUG (VUH27ES) (DENSO) | 4 шт. | — | |
|
| 9 | 90012-MFL-000 | BOLT, FLANGE (6X105) | 2 шт. | — | |
|
| 11 | 90018-425-000 | BOLT, FLANGE (6X48) (Honda Code 0717256) | 2 шт. | — | |
|
| 11 | 90018-425-000 | BOLT, FLANGE (6X48) (Honda Code 0717256) | 4 шт. | — | |
|
| 12 | 90016-KT7-000 | BOLT, FLANGE (6X37) | 14 шт. | — | |
|
| 13 | 90023-MFL-000 | SHAFT B, CAM CHAIN TENSIONER | 1 шт. | — | |
|
| 14 | 90035-MM5-000 | BOLT, STUD (8X24) | 8 шт. | — | |
|
| 15 | 90071-MEL-000 | BOLT, FLANGE SOCKET (6X16) | 6 шт. | — | |
|
| 16 | 90232-MFL-000 | NUT, SPECIAL (9MM) | 8 шт. | — | |
|
| 17 | 90234-MFL-000 | NUT, SPECIAL CAP (9MM) | 2 шт. | — | |
|
| 18 | 90403-MFL-000 | WASHER, SEALING (24MM) | 1 шт. | — | |
|
| 19 | 90405-MFL-000 | WASHER, PLAIN (9MM) | 10 шт. | — | |
|
| 20 | 90463-ML7-000 | WASHER, SEALING (6.5MM) | 8 шт. | — | |
|
| 22 | 91301-MEL-003 | O-RING (44.3X2.5) | 4 шт. | — | |
|
| 24 | 94301-08200 | PIN, DOWEL (8X20) (Honda Code 1417369) | 2 шт. | — | |
|
| 24 | 94301-08200 | PIN, DOWEL (8X20) (Honda Code 1417369) | 4 шт. | — | |
|
| 24 | 94301-08200 | PIN, DOWEL (8X20) (Honda Code 1417369) | 4 шт. | — | |
|
| 25 | 94301-10160 | PIN, DOWEL (10X16) (Honda Code 0058206) | 2 шт. | — | |
|
