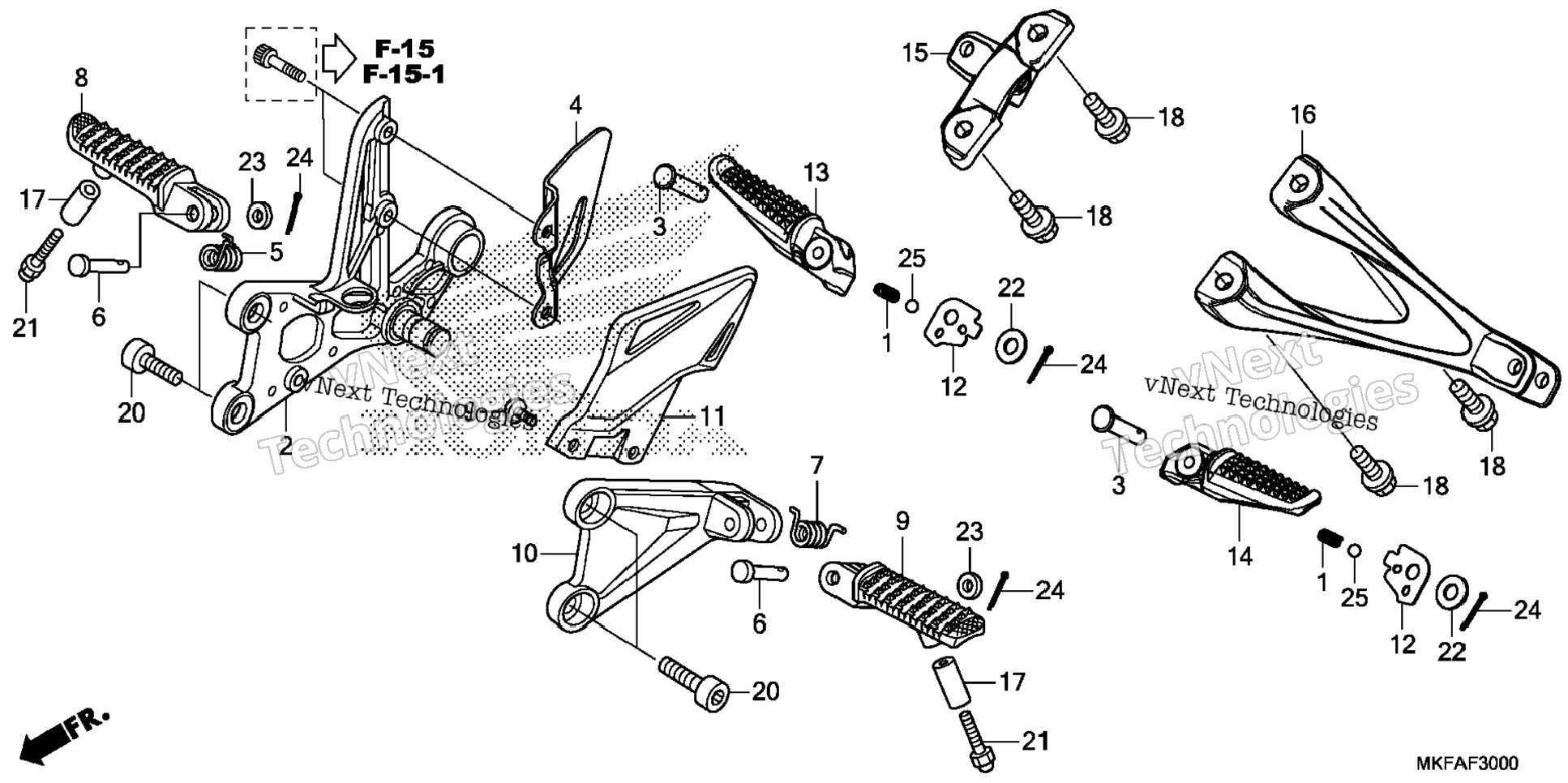

| 1 | 28333-300-000 | SPRING, KICK STARTER STOPPER | 2 шт. | — | |
|
| 2 | 50600-MGP-D60 | HOLDER, R. MAIN STEP | 1 шт. | — | |
|
| 3 | 50603-033-010 | PIN, STEP BAR JOINT | 2 шт. | — | |
|
| 4 | 50607-MFL-000 | GUARD, R. STEP | 1 шт. | — | |
|
| 5 | 50617-MCJ-750 | SPRING, R. STEP RETURN | 1 шт. | — | |
|
| 6 | 50639-MFL-D20 | PIN, STEP BAR | 2 шт. | — | |
|
| 7 | 50644-MCJ-750 | SPRING, L. STEP RETURN | 1 шт. | — | |
|
| 8 | 50660-MEL-000 | ARM, R. MAIN STEP | 1 шт. | — | |
|
| 9 | 50665-MEL-000 | ARM, L. MAIN STEP | 1 шт. | — | |
|
| 10 | 50700-MGP-D60 | HOLDER, L. MAIN STEP | 1 шт. | — | |
|
| 11 | 50707-MFL-000 | GUARD, L. STEP | 1 шт. | — | |
|
| 12 | 50718-MN8-000 | PLATE, PILLION STEP CLICK | 2 шт. | — | |
|
| 13 | 50720-MKF-D40 | ARM, R. PILLION STEP | 1 шт. | — | |
|
| 14 | 50730-MKF-D40 | ARM, L. PILLION STEP | 1 шт. | — | |
|
| 15 | 50750-MKF-D40ZA | HOLDER, R. PILLION STEP *NH461M* (TEMPLE BLACK METALLIC) | 1 шт. | — | |
|
| 16 | 50760-MKF-D40ZA | HOLDER, L. PILLION STEP *NH461M* (TEMPLE BLACK METALLIC) | 1 шт. | — | |
|
| 17 | 51486-MEL-000 | COLLAR, STEP (LOWER) | 2 шт. | — | |
|
| 18 | 90105-MKF-D40 | BOLT, FLANGE (8X25) | 4 шт. | — | |
|
| 19 | 90106-MAV-000 | SCREW, PAN (6X12) | 2 шт. | — | |
|
| 20 | 90157-MFL-D20 | BOLT, SOCKET (8X22) | 4 шт. | — | |
|
| 21 | 92501-06050-0A | BOLT, CAP (6X50) | 2 шт. | — | |
|
| 22 | 94101-08000 | WASHER, PLAIN (8MM) | 2 шт. | — | |
|
| 23 | 94102-08000 | WASHER, PLAIN (8MM) | 2 шт. | — | |
|
| 24 | 94201-20150 | PIN, COTTER (2.0X15) | 4 шт. | — | |
|
| 25 | 96211-08000 | BALL, STEEL (#8) (1/4) | 2 шт. | — | |
|
