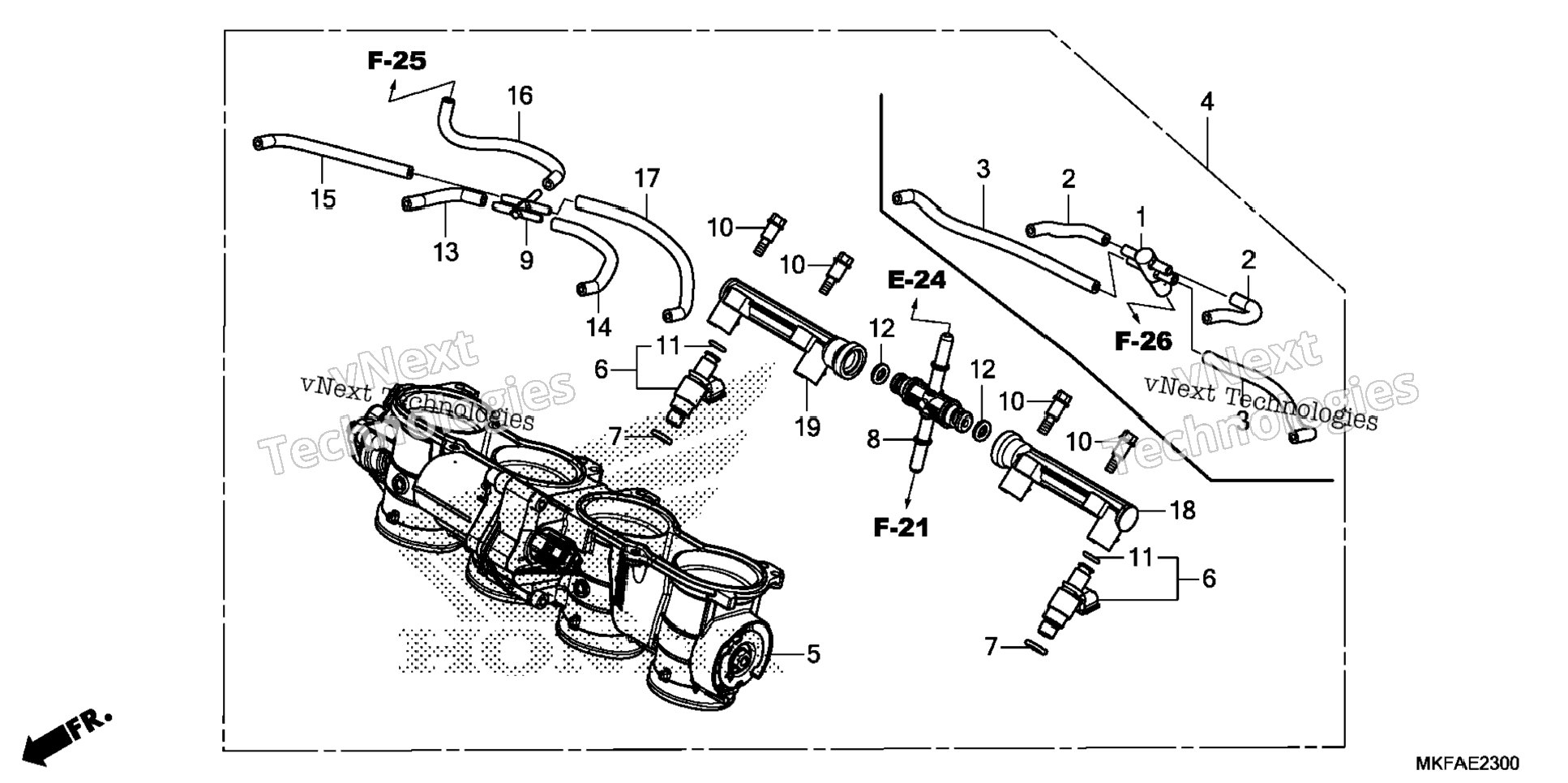

| 1 | 16180-ME5-761 | JOINT (T) | 1 шт. | — | |
|
| 2 | 16196-MFL-771 | TUBE | 2 шт. | — | |
|
| 3 | 16197-MFL-771 | TUBE | 2 шт. | — | |
|
| 4 | 16400-MKF-L22 | THROTTLEBODY ASSY. | 1 шт. | — | |
|
| 5 | 16401-MKF-L21 | BODY ASSY., THROTTLE | 1 шт. | — | |
|
| 6 | 16450-MFL-003 | INJECTOR ASSY., FUEL | 4 шт. | — | |
|
| 7 | 16472-MCW-000 | SEAL RING, INJECTOR | 4 шт. | — | |
|
| 8 | 16650-MFL-003 | JOINT, FUEL | 1 шт. | — | |
|
| 9 | 17201-MCJ-003 | JOINT, FIVE-WAY | 1 шт. | — | |
|
| 10 | 90021-MGZ-D02 | BOLT, SHOULDER | 4 шт. | — | |
|
| 11 | 91301-P7A-004 | O-RING (7.8X1.9) | 4 шт. | — | |
|
| 12 | 91301-PLC-000 | O-RING (7.47X3.6) | 2 шт. | — | |
|
| 13 | 95005-35001-20M | BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M) | 1 шт. | — | |
|
| 14 | 95005-35001-20M | BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M) | 1 шт. | — | |
|
| 15 | 95005-35001-20M | BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M) | 1 шт. | — | |
|
| 16 | 95005-35001-20M | BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M) | 1 шт. | — | |
|
| 17 | 95005-35001-20M | BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M) | 1 шт. | — | |
|
| 18 | 16610-MKF-D41 | PIPE, FUEL | 1 шт. | — | |
|
| 19 | 16620-MKF-D41 | PIPE, FUEL | 1 шт. | — | |
|
