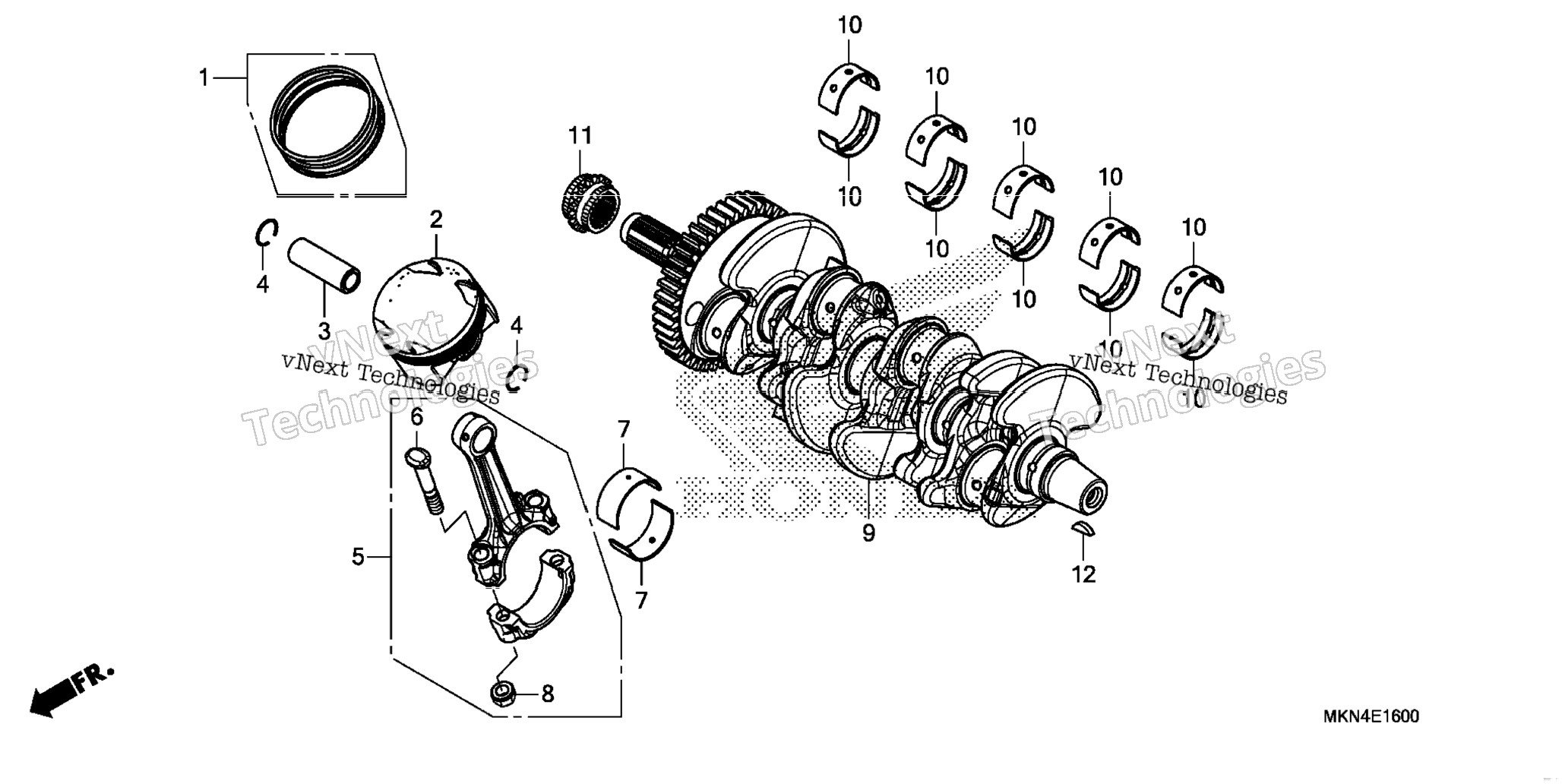

| 1 | 13021-MJE-315 | RING SET, PISTON (O.S. 0.25) (Optional). | 4 шт. | — | |
|
| 1 | 13011-MJE-315 | RING SET, PISTON (STD) | 4 шт. | — | |
|
| 2 | 13102-MKN-305 | PISTON (O.S. 0.25) (Optional). | 0 шт. | — | |
|
| 2 | 13101-MKN-D10 | PISTON (STD) | 4 шт. | — | |
|
| 3 | 13111-MFG-D00 | PIN, PISTON | 4 шт. | — | |
|
| 4 | 13112-MEE-000 | CLIP, PISTON PIN (16MM) | 8 шт. | — | |
|
| 5 | 13210-MJE-D00 | ROD ASSY., CONNECTING | 4 шт. | — | |
|
| 6 | 13213-ML7-020 | BOLT, CONNECTING ROD | 8 шт. | — | |
|
| 7 | 13214-MJE-D01 | BEARING A, CONNECTING ROD (BLUE) | 8 шт. | — | |
|
| 7 | 13215-MJE-D01 | BEARING B, CONNECTING ROD (BLACK) | 8 шт. | — | |
|
| 7 | 13216-MJE-D01 | BEARING C, CONNECTING ROD (BROWN) | 8 шт. | — | |
|
| 7 | 13217-MJE-D01 | BEARING D, CONNECTING ROD (GREEN) | 8 шт. | — | |
|
| 7 | 13218-MJE-D01 | BEARING E, CONNECTING ROD (YELLOW) | 8 шт. | — | |
|
| 8 | 13215-ML7-000 | NUT, CONNECTING ROD | 8 шт. | — | |
|
| 9 | 13310-MJE-D00 | CRANKSHAFT | 1 шт. | — | |
|
| 10 | 13313-MW0-003 | BEARING A, CRANKSHAFT (BLACK) | 10 шт. | — | |
|
| 10 | 13314-MW0-003 | BEARING B, CRANKSHAFT (BROWN) | 10 шт. | — | |
|
| 10 | 13315-MW0-003 | BEARING C, CRANKSHAFT (GREEN) | 10 шт. | — | |
|
| 10 | 13316-MW0-003 | BEARING D, CRANKSHAFT (YELLOW) | 10 шт. | — | |
|
| 10 | 13317-MW0-003 | BEARING E, CRANKSHAFT (PINK) | 10 шт. | — | |
|
| 11 | 14312-MKN-D10 | SPROCKET, TIMING (17T) | 1 шт. | — | |
|
| 12 | 90701-HB6-010 | KEY, WOODRUFF (25X14X4) | 1 шт. | — | |
|
