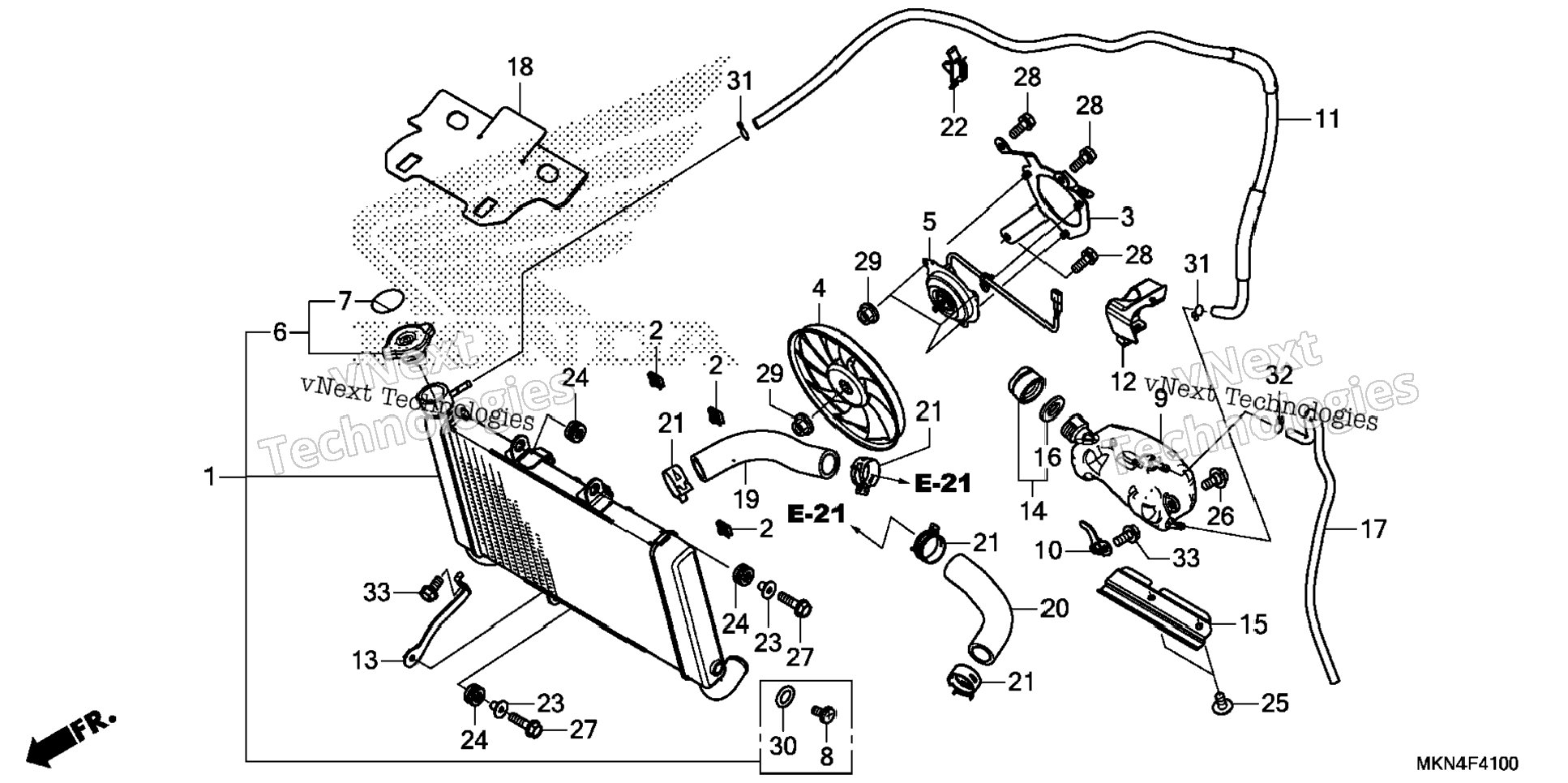

| 1 | 19010-MKN-L21 | RADIATOR (TOYO) | 1 шт. | — | |
|
| 2 | 19014-KEA-003 | NUT, SETTING (6MM) | 3 шт. | — | |
|
| 3 | 19015-MJE-D01 | SHROUD | 1 шт. | — | |
|
| 4 | 19020-MFG-D01 | FAN, COOLING | 1 шт. | — | |
|
| 5 | 19030-MKN-D51 | MOTOR ASSY., FAN | 1 шт. | — | |
|
| 6 | 19037-GEE-710 | CAP, RADIATOR | 1 шт. | — | |
|
| 7 | 19046-PAA-A00 | LABEL, RADIATOR CAP | 1 шт. | — | |
|
| 8 | 19071-MEC-003 | PETCOCK, DRAIN | 1 шт. | — | |
|
| 9 | 19101-MJE-D00 | TANK, RADIATOR RESERVE | 1 шт. | — | |
|
| 10 | 19102-MJE-D00 | STAY, RESERVE TANK | 1 шт. | — | |
|
| 11 | 19103-MJE-D00 | TUBE, RESERVE TANK | 1 шт. | — | |
|
| 12 | 19104-MJE-D00 | COVER, RESERVE TANK | 1 шт. | — | |
|
| 13 | 19105-MJE-D00 | STAY, RADIATOR (LOWER) | 1 шт. | — | |
|
| 14 | 19106-GET-000 | CAP ASSY., RESERVE TANK | 1 шт. | — | |
|
| 15 | 19106-MJE-DB0 | GUARD, RESERVE TANK HEAT | 1 шт. | — | |
|
| 16 | 19107-GET-000 | GASKET, RESERVE TANK | 1 шт. | — | |
|
| 17 | 19108-MJE-D00 | TUBE, RESERVE TANK OVERFLOW | 1 шт. | — | |
|
| 18 | 19126-MKN-D50 | GUARD, RADIATOR HEAT | 1 шт. | — | |
|
| 19 | 19501-MJE-D00 | HOSE A, RADIATOR | 1 шт. | — | |
|
| 20 | 19502-MJE-D00 | HOSE B, RADIATOR | 1 шт. | — | |
|
| 21 | 19511-R9G-004 | CLIP, WATER HOSE | 4 шт. | — | |
|
| 22 | 32161-393-003 | CLIP, WIRE HARNESS | 1 шт. | — | |
|
| 23 | 61102-KTY-D30 | COLLAR, RADIATOR MOUNTING | 2 шт. | — | |
|
| 24 | 61304-415-000 | RUBBER, HEADLIGHT CASE MOUNTING | 3 шт. | — | |
|
| 25 | 90106-KRG-000 | SCREW, PAN (6X12) | 2 шт. | — | |
|
| 26 | 90111-162-000 | BOLT, FLANGE (6MM) | 1 шт. | — | |
|
| 27 | 90115-MKN-D50 | BOLT, FLANGE (6X22) | 2 шт. | — | |
|
| 28 | 90120-GHB-601 | BOLT-WASHER (6X12) | 3 шт. | — | |
|
| 29 | 90315-MK3-003 | NUT, SERRATE (5MM) | 4 шт. | — | |
|
| 30 | 91353-MEC-003 | O-RING (9.8X1.9) | 1 шт. | — | |
|
| 31 | 95002-02100 | CLIP, TUBE (B10) | 2 шт. | — | |
|
| 32 | 95002-50000 | CLIP, TUBE (C9) | 1 шт. | — | |
|
| 33 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 2 шт. | — | |
|
