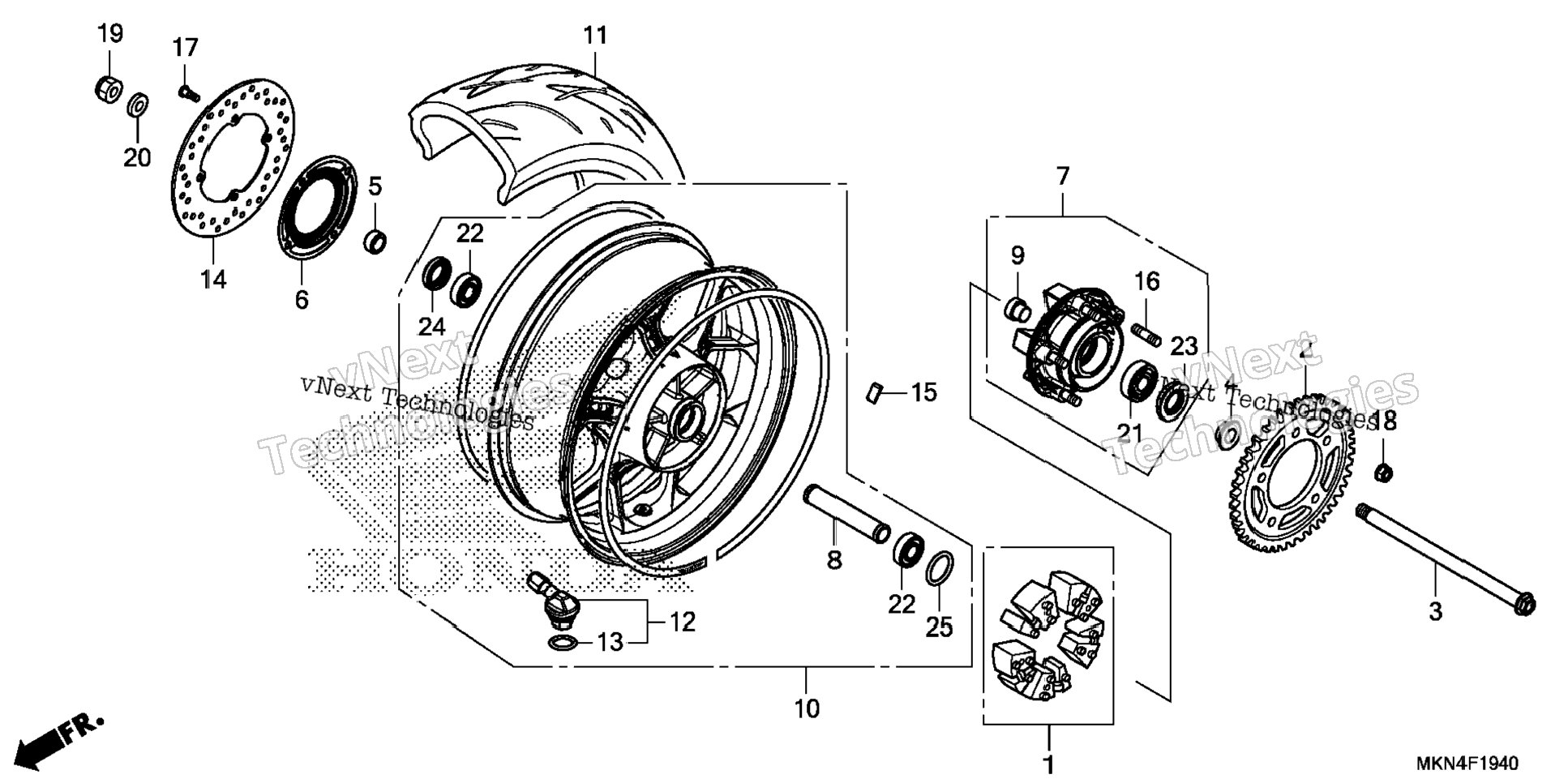

| 1 | 06410-MGS-D30 | DAMPER SET, WHEEL | 1 шт. | — | |
|
| 2 | 41201-MKN-D50 | SPROCKET, FINAL DRIVEN (42T) | 1 шт. | — | |
|
| 3 | 42301-MKN-D50 | AXLE, RR. WHEEL | 1 шт. | — | |
|
| 4 | 42311-MER-D00 | COLLAR, L. RR. WHEEL SIDE | 1 шт. | — | |
|
| 5 | 42312-MER-D00 | COLLAR, RR. BRAKE SIDE | 1 шт. | — | |
|
| 6 | 42615-MJE-D00 | FLANGE SUB-ASSY., RR. DRIVEN | 1 шт. | — | |
|
| 7 | 42620-MKN-D50 | COLLAR, RR. AXLE DISTANCE | 1 шт. | — | |
|
| 8 | 42625-MER-D00 | COLLAR B, RR. WHEEL DISTANCE | 1 шт. | — | |
|
| 9 | 42650-MKN-L20ZB | WHEEL SUB-ASSY., RR. (TYPE1) (WL) | 1 шт. | — | |
|
| 10 | 42711-MKN-D51 | TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP) | 1 шт. | — | |
|
| 11 | 42711-MKN-D52 | TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP) | 1 шт. | — | |
|
| 12 | 42755-MKA-D81 | VALVE ASSY., CLAMP IN | 1 шт. | — | |
|
| 13 | 42758-MKA-D81 | O-RING | 1 шт. | — | |
|
| 14 | 43251-K87-A00 | DISK, RR. BRAKE | 1 шт. | — | |
|
| 15 | 44721-MGH-H21 | WEIGHT, BALANCE (10G) | 1 шт. | — | |
|
| 16 | 44722-MGH-H21 | WEIGHT, BALANCE (15G) | 1 шт. | — | |
|
| 17 | 44723-MGH-H21 | WEIGHT, BALANCE (20G) | 1 шт. | — | |
|
| 18 | 90102-MAS-000 | BOLT 2, STUD (12X25) | 5 шт. | — | |
|
| 19 | 90105-MGS-D30 | BOLT, DISK (8X25) | 4 шт. | — | |
|
| 20 | 90306-KGH-901 | NUT, U (12MM) (FUJI SEIMITSU) | 5 шт. | — | |
|
| 21 | 90306-MJE-D01 | NUT, U (18MM) | 1 шт. | — | |
|
| 22 | 90401-KZ4-890 | WASHER (18X32X2) | 1 шт. | — | |
|
| 23 | 91051-MAS-003 | BEARING, RADIAL BALL (63/22) | 1 шт. | — | |
|
| 24 | 91053-MGS-D31 | BEARING, RADIAL BALL (6204UU) | 2 шт. | — | |
|
| 25 | 91252-MAS-003 | DUST SEAL (30X56X7.5) | 1 шт. | — | |
|
| 26 | 91253-MAE-003 | DUST SEAL (30X47X7.5) | 1 шт. | — | |
|
| 27 | 91351-MGS-D30 | O-RING (55X2) | 1 шт. | — | |
|
