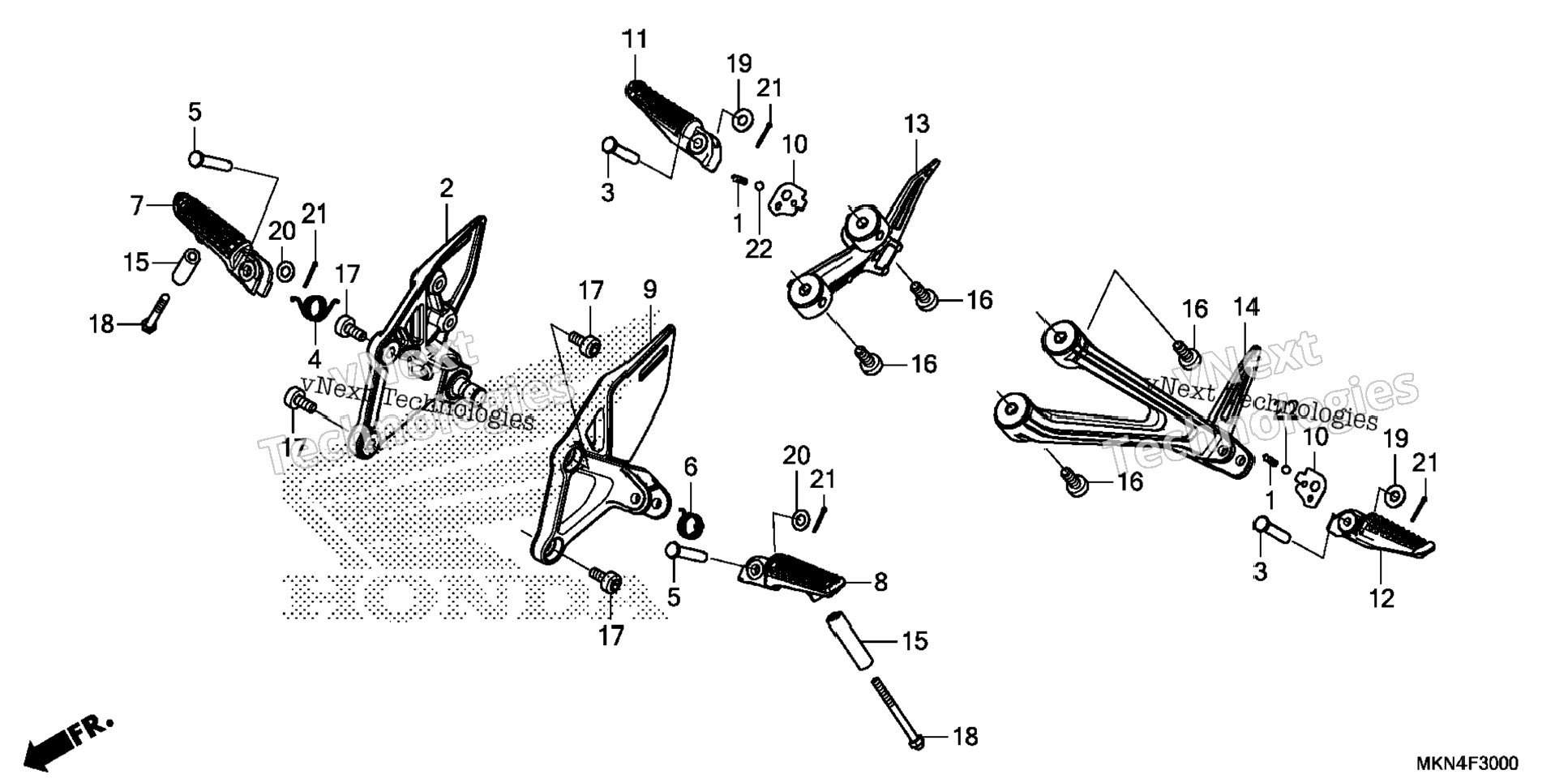

| 1 | 28333-300-000 | SPRING, KICK STARTER STOPPER | 2 шт. | — | |
|
| 2 | 50600-MKN-D50 | HOLDER, R. MAIN STEP | 1 шт. | — | |
|
| 3 | 50603-033-010 | PIN, STEP BAR JOINT | 2 шт. | — | |
|
| 4 | 50617-445-840 | SPRING, R. STEP RETURN (L. SIDE) | 1 шт. | — | |
|
| 5 | 50639-ML0-010 | PIN, STEP BAR | 2 шт. | — | |
|
| 6 | 50644-445-840 | SPRING, L. STEP RETURN (R. SIDE) | 1 шт. | — | |
|
| 7 | 50660-MKN-D50 | ARM, R. MAIN STEP | 1 шт. | — | |
|
| 8 | 50665-MKN-D50 | ARM, L. MAIN STEP | 1 шт. | — | |
|
| 9 | 50700-MKN-D50 | HOLDER, L. MAIN STEP | 1 шт. | — | |
|
| 10 | 50718-MN8-000 | PLATE, PILLION STEP CLICK | 2 шт. | — | |
|
| 11 | 50720-K94-T00 | ARM, R. PILLION STEP | 1 шт. | — | |
|
| 12 | 50730-K94-T00 | ARM, L. PILLION STEP | 1 шт. | — | |
|
| 13 | 50750-MKN-D50 | HOLDER, R. PILLION STEP | 1 шт. | — | |
|
| 14 | 50760-MKN-D50 | HOLDER, L. PILLION STEP | 1 шт. | — | |
|
| 15 | 51486-MKN-D50 | COLLAR, STEP (LOWER) | 2 шт. | — | |
|
| 16 | 90116-MGZ-J00 | BOLT, SOCKET (8X22) | 4 шт. | — | |
|
| 17 | 90116-MJE-D00 | BOLT, SOCKET (8X18) | 4 шт. | — | |
|
| 18 | 92501-06060-0A | BOLT, HEX. CAP (6X60) | 2 шт. | — | |
|
| 19 | 94101-08000 | WASHER, PLAIN (8MM) | 2 шт. | — | |
|
| 20 | 94102-08800 | WASHER, PLAIN (8MM) | 2 шт. | — | |
|
| 21 | 94201-20150 | PIN, COTTER (2.0X15) | 4 шт. | — | |
|
| 22 | 96211-08000 | BALL, STEEL (#8) (1/4) | 2 шт. | — | |
|
