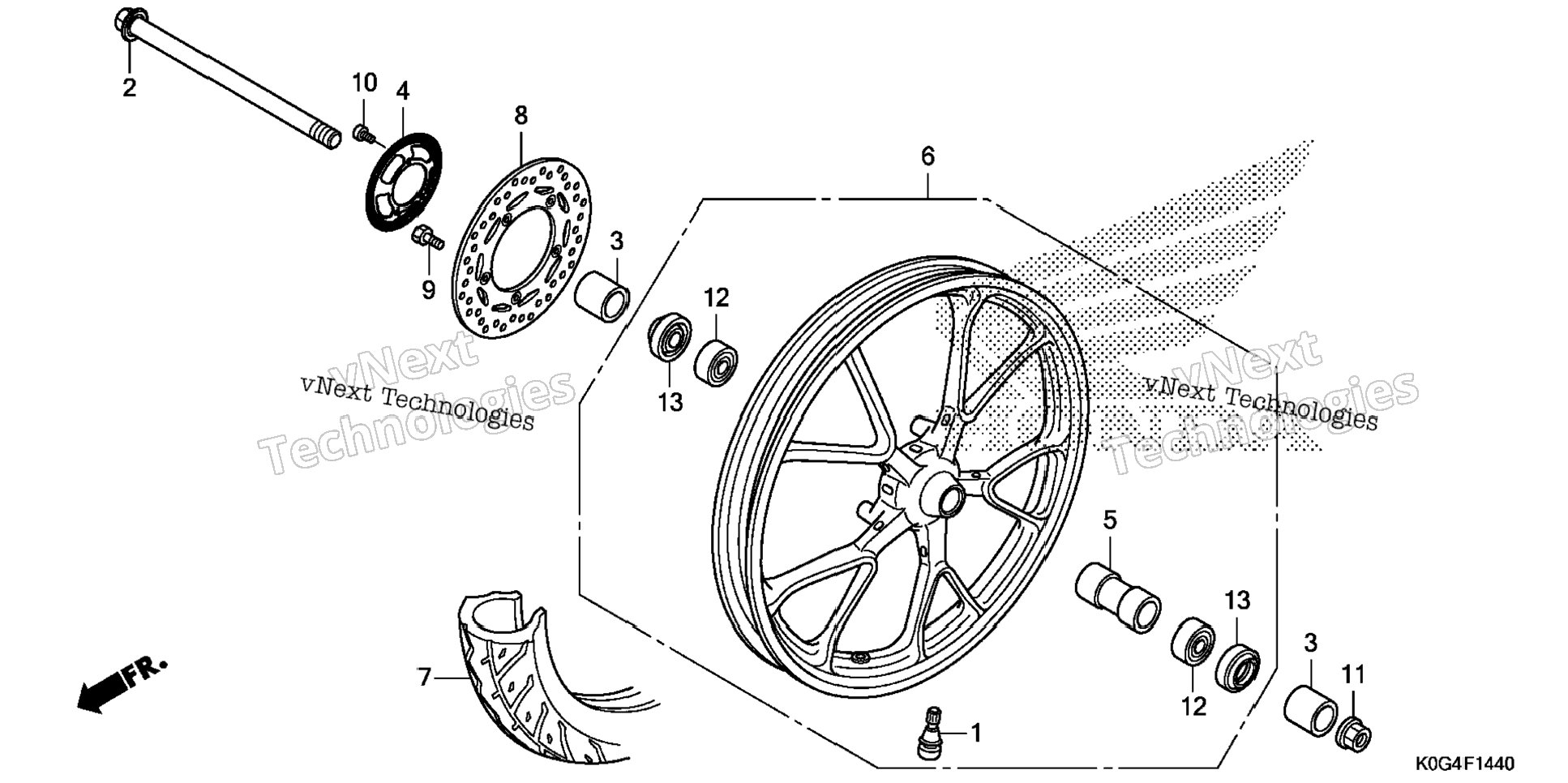

| 1 | 42753-GM9-743 | VALVE, RIM (IRC) | 1 шт. | — | |
|
| 2 | 44301-KZV-L00 | AXLE, FR. WHEEL | 1 шт. | — | |
|
| 3 | 44311-K0G-900 | COLLAR, FR. WHEEL SIDE | 2 шт. | — | |
|
| 4 | 44515-K26-C10 | RING, FR. PULSER | 1 шт. | — | |
|
| 5 | 44620-K0G-900 | COLLAR, FR. AXLE DISTANCE | 1 шт. | — | |
|
| 6 | 44650-K0G-950ZA | WHEEL SUB-ASSY., FR. *NHC14M* (METAMORPHIC GRAY METALLIC) | 1 шт. | — | |
|
| 7 | 44711-K0G-901 | TIRE, FR. (70/90-17M/C 38P) (IRC) | 1 шт. | — | |
|
| 8 | 45251-K0G-901 | DISK, FR. BRAKE | 1 шт. | — | |
|
| 9 | 90105-KZZ-900 | BOLT, DISK (6X17) | 5 шт. | — | |
|
| 10 | 90131-KPB-751 | BOLT, TORX (5X10) | 3 шт. | — | |
|
| 11 | 90306-KWN-701 | NUT, U (12MM) | 1 шт. | — | |
|
| 12 | 91051-K03-H32 | BEARING, RADIAL BALL (6201UU) (NSK) | 2 шт. | — | |
|
| 13 | 91051-K03-H33 | BEARING, RADIAL BALL (6201UU) (FAG) | 2 шт. | — | |
|
| 14 | 91251-KZR-601 | DUST SEAL (21X32X5) (ARAI) | 2 шт. | — | |
|
