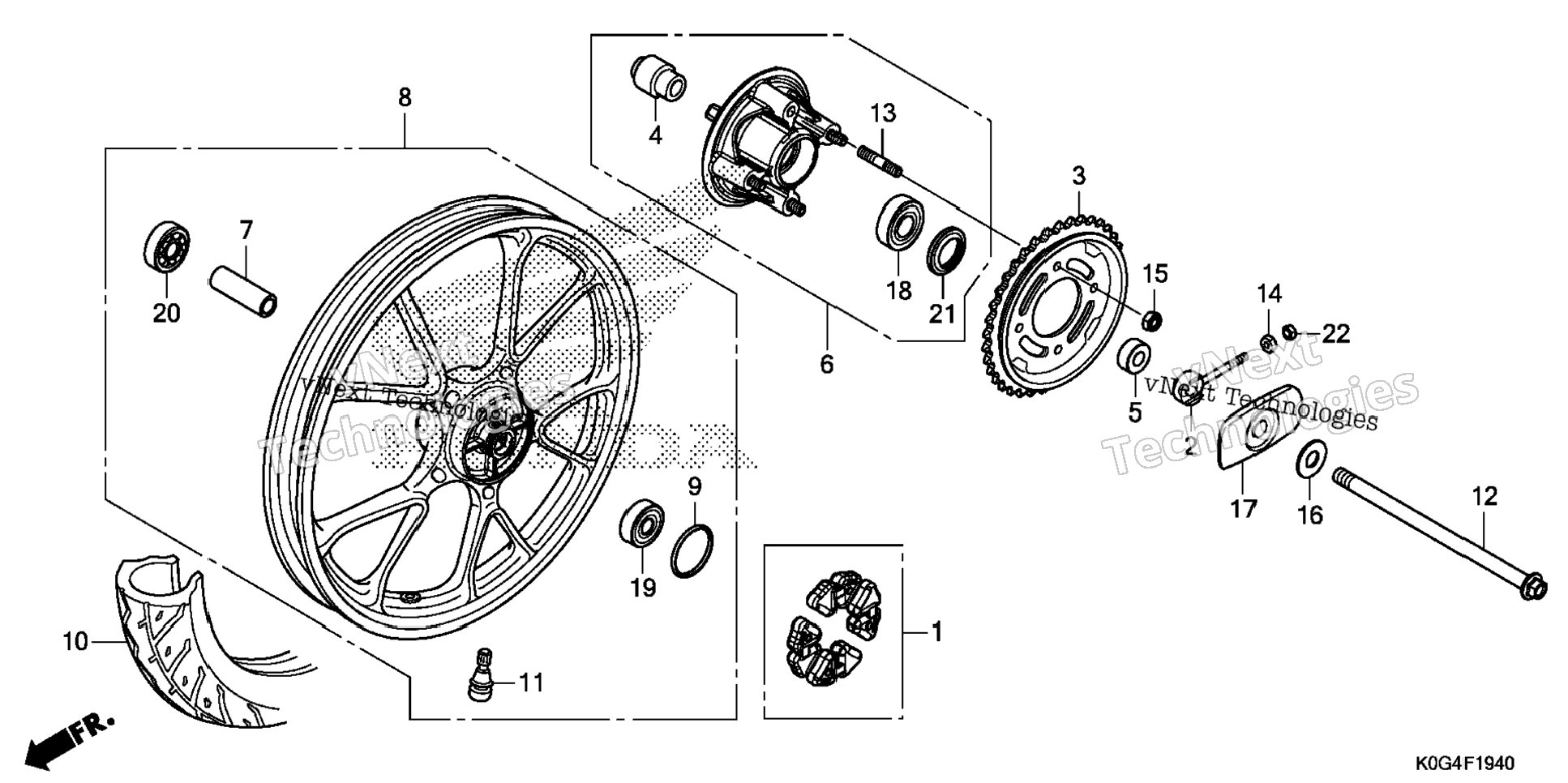

| 1 | 06410-KWB-600 | DAMPER SET, WHEEL | 1 шт. | — | |
|
| 2 | 40543-K0G-900 | ADJUSTER, CHAIN | 1 шт. | — | |
|
| 3 | 41200-K0G-900 | SPROCKET, FINAL DRIVEN (36T) | 1 шт. | — | |
|
| 4 | 42303-KWW-B60 | SLEEVE, RR. WHEEL | 1 шт. | — | |
|
| 5 | 42304-K0G-900 | COLLAR, RR. WHEEL SIDE | 1 шт. | — | |
|
| 6 | 42615-K58-N40 | FLANGE SUB-ASSY., FINAL DRIVEN | 1 шт. | — | |
|
| 7 | 42620-KFL-850 | COLLAR, RR. AXLE DISTANCE | 1 шт. | — | |
|
| 8 | 42650-K0G-900ZA | WHEEL SUB-ASSY., RR. *NHC14M* (METAMORPHIC GRAY METALLIC) | 1 шт. | — | |
|
| 9 | 42653-001-004 | O-RING (40.5X3) (NIPPON DUST KEEPER) | 1 шт. | — | |
|
| 10 | 42711-K0G-901 | TIRE, RR. (80/90-17M/C 50P) (IRC) | 1 шт. | — | |
|
| 11 | 42711-K0G-902 | TIRE, RR. (80/90-17M/C 50P) (IRC) (NA USE ALT:42711-K0G-901) | 1 шт. | — | |
|
| 12 | 42711-K0G-903 | TIRE, RR. (80/90-17M/C 50P) (IRC) | 1 шт. | — | |
|
| 13 | 42753-GM9-743 | VALVE, RIM (IRC) | 1 шт. | — | |
|
| 14 | 44301-K01-900 | AXLE, FR. WHEEL (FOR RR.) | 1 шт. | — | |
|
| 15 | 90128-KWB-600 | BOLT, STUD (8X18) | 4 шт. | — | |
|
| 16 | 90302-KZV-J00 | NUT, SPECIAL (6MM) | 1 шт. | — | |
|
| 17 | 90309-KPH-971 | NUT, U (8MM) (FUJI SEIMITSU) | 4 шт. | — | |
|
| 18 | 90501-K0G-900 | WASHER, RR. AXLE | 1 шт. | — | |
|
| 19 | 90559-K0G-900 | PLATE, SWINGARM SIDE | 1 шт. | — | |
|
| 20 | 91051-K35-V03 | BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) | 1 шт. | — | |
|
| 21 | 91051-K35-V04 | BRG,BALL RADIAL 6 | 1 шт. | — | |
|
| 22 | 91052-K24-901 | BEARING, RADIAL BALL (6201U L) (NSK) | 1 шт. | — | |
|
| 23 | 91052-K24-904 | BEARING,BALL RADI | 1 шт. | — | |
|
| 24 | 91053-K03-H02 | BEARING, RADIAL BALL (6301U L) (FAG) | 1 шт. | — | |
|
| 25 | 91055-KVS-F02 | BEARING, RADIAL BALL (6301U L) (NSK) | 1 шт. | — | |
|
| 26 | 91251-KGH-902 | DUST SEAL (27X40X4.5) (NOK) | 1 шт. | — | |
|
| 27 | 94001-06000-0S | NUT, HEX. (6MM) | 1 шт. | — | |
|
| 28 | 94001-06200-0S | NUT, HEX. (6MM) | 1 шт. | — | |
|
