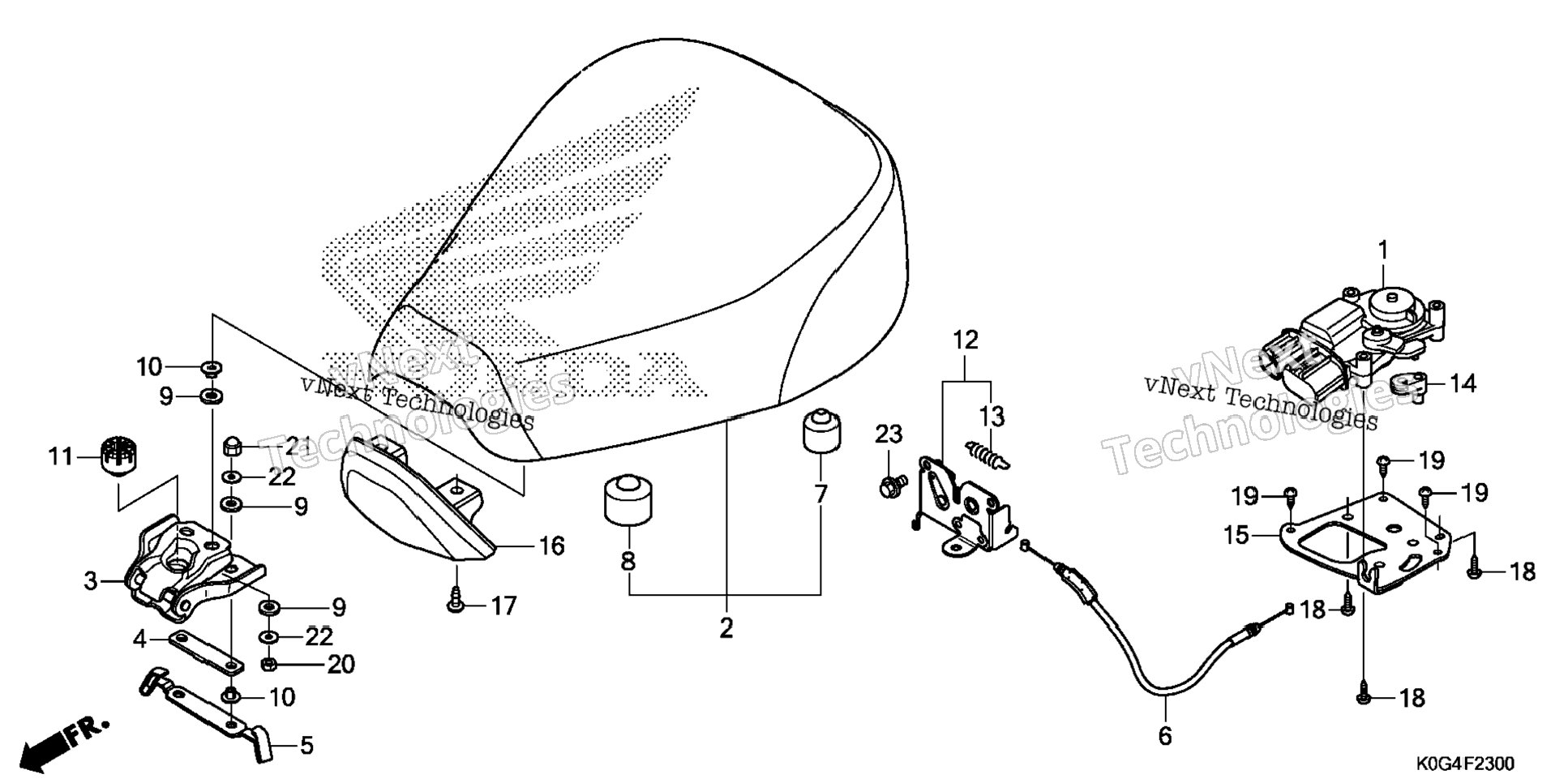

| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 36520-KSV-J03 | ACTUATOR ASSY. | 1 шт. | — | |
|
| 2 | 77100-K0G-901ZB | SEAT, SINGLE (TYPE1) | 1 шт. | — | |
|
| 3 | 77110-K0G-900 | HINGE, SEAT | 1 шт. | — | |
|
| 4 | 77116-K0G-900 | RUBBER, CUSHION | 1 шт. | — | |
|
| 5 | 77117-K0G-900 | HOOK, HELMET | 1 шт. | — | |
|
| 6 | 77156-K0G-901 | CABLE, SEAT LOCK | 1 шт. | — | |
|
| 7 | 77206-KPK-900 | RUBBER, SEAT CUSHION | 2 шт. | — | |
|
| 8 | 77206-KPP-T00 | RUBBER, SEAT CUSHION | 2 шт. | — | |
|
| 9 | 77207-GN5-910 | RUBBER B, SEAT MOUNTING | 6 шт. | — | |
|
| 10 | 77208-KPW-900 | COLLAR, SEAT MOUNTING | 4 шт. | — | |
|
| 11 | 77215-KW7-900 | RUBBER C, SEAT SETTING | 1 шт. | — | |
|
| 12 | 77230-K0G-900 | CATCH, SEAT | 1 шт. | — | |
|
| 13 | 77234-GGZ-J00 | SPRING, SEAT LOCK | 1 шт. | — | |
|
| 14 | 77242-KSV-J00 | JOINT, CABLE | 1 шт. | — | |
|
| 15 | 77250-K0G-900 | STAY, ACTUATOR | 1 шт. | — | |
|
| 16 | 83405-K0G-900 | COVER, SEAT HINGE | 1 шт. | — | |
|
| 17 | 93903-24310 | SCREW, TAPPING (4X12) | 2 шт. | — | |
|
| 18 | 93903-34510 | SCREW, TAPPING (4X20) | 3 шт. | — | |
|
| 19 | 93913-14220 | SCREW, TAPPING (4X12) | 3 шт. | — | |
|
| 20 | 94001-06000-0S | NUT, HEX. (6MM) | 2 шт. | — | |
|
| 21 | 94001-06200-0S | NUT, HEX. (6MM) | 2 шт. | — | |
|
| 22 | 94021-06000-0S | NUT, CAP (6MM) | 2 шт. | — | |
|
| 23 | 94021-06020 | NUT, CAP (6MM) | 2 шт. | — | |
|
| 24 | 94021-06020-0S | NUT, CAP (6MM) | 2 шт. | — | |
|
| 25 | 94022-06020 | NUT, CAP (6MM) | 2 шт. | — | |
|
| 26 | 94103-06000 | WASHER, PLAIN (6MM) | 4 шт. | — | |
|
| 27 | 95701-06012-08 | BOLT, FLANGE (6X12) | 2 шт. | — | |
|
