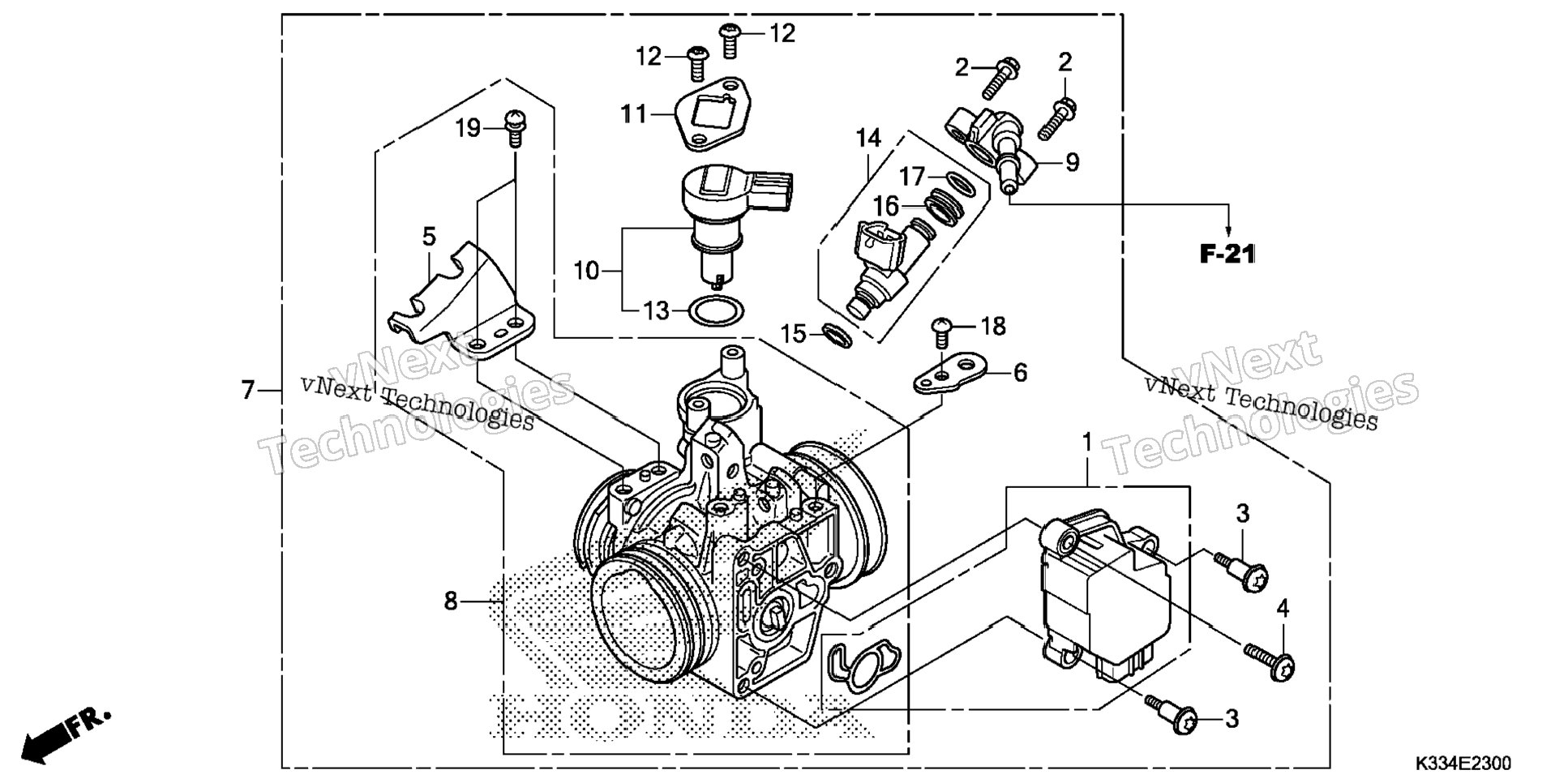

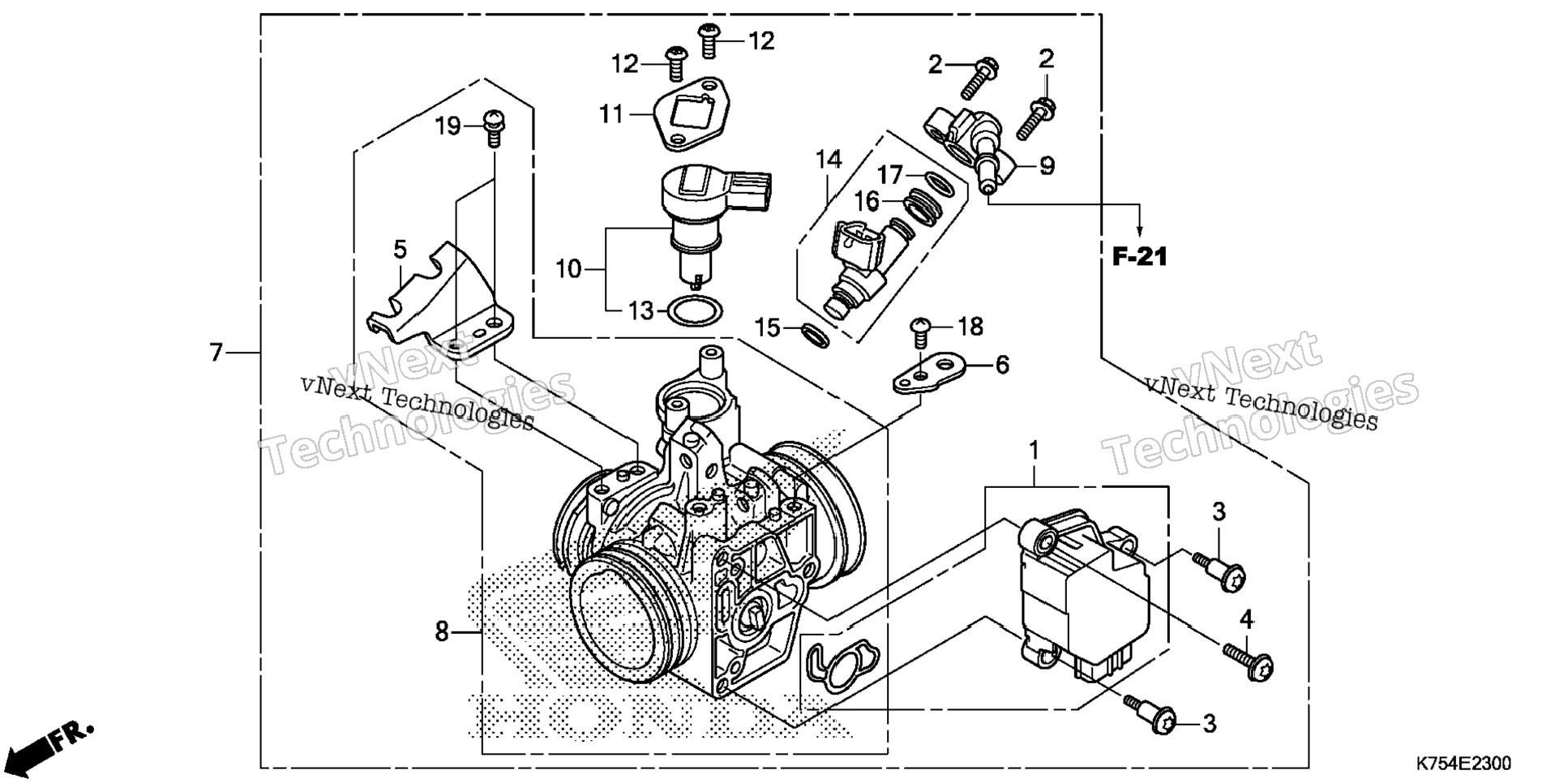

| 1 | 16060-KYJ-901 | SENSOR SET | 1 шт. | — | |
|
| 2 | 16080-KPH-701 | BOLT, FLANGE (5X20) | 2 шт. | — | |
|
| 3 | 16081-KYJ-901 | SCREW, TORX (5X8.7) | 2 шт. | — | |
|
| 4 | 16082-KYJ-901 | SCREW, TORX (5X17) | 1 шт. | — | |
|
| 5 | 16169-MFR-671 | STAY, WIRE | 1 шт. | — | |
|
| 6 | 16196-HP6-A01 | STAY, HARNESS CLAMP | 1 шт. | — | |
|
| 7 | 16400-KYJ-902 | BODY ASSY., THROTTLE (GQ9JA B) | 1 шт. | — | |
|
| 8 | 16410-KYJ-902 | BODY SET | 1 шт. | — | |
|
| 9 | 16422-HP5-602 | JOINT, INJECTOR | 1 шт. | — | |
|
| 10 | 16430-KYJ-901 | VALVE SET, IDLE AIR CONTROL | 1 шт. | — | |
|
| 11 | 16432-HP5-601 | PLATE, IDLE AIR CONTROL VALVE | 1 шт. | — | |
|
| 12 | 16433-HN8-A61 | SCREW, TORX | 2 шт. | — | |
|
| 13 | 16435-HN8-A61 | O-RING (17.8X1.9) | 1 шт. | — | |
|
| 14 | 16450-MFE-641 | INJECTOR ASSY., FUEL | 1 шт. | — | |
|
| 15 | 16472-MCW-000 | SEAL RING, INJECTOR | 1 шт. | — | |
|
| 16 | 16473-P7A-004 | CUSHION RING, INJECTOR | 1 шт. | — | |
|
| 17 | 91301-P7A-004 | O-RING (7.8X1.9) | 1 шт. | — | |
|
| 18 | 93500-05010-0H | SCREW, PAN (5X10) | 1 шт. | — | |
|
| 19 | 93500-05010-08 | SCREW, PAN (5X10) | 1 шт. | — | |
|
| 20 | 93500-05010-1H | SCREW, PAN (5X10) | 1 шт. | — | |
|
| 21 | 93892-05012-08 | SCREW-WASHER (5X12) (Honda Code 0368621) | 2 шт. | — | |
|
| 22 | 93892-05012-18 | SCREW-WASHER (5X12) | 2 шт. | — | |
|
